GE IC695CPU315 CPU模块

IC695CPU315

主营品牌：

--产品承诺--

1.国外直接采购，正品行货，价格优惠，售后保修，型号齐全，优势库存。

2.所有备件的质保期均为1年，经过专业测试认证。

3..如果您需要订购产品超过1件，请与我们联系，我们可以为您提供折扣。

4.我们仅采用顺主快递方式递送备件

5.如果还有其他任何问题，请随时与我们联系。

6.请让我们知道您有任何，备品，备件的需要，我们可以给您进一步的援助，我们等候您的询盘。

7.厦门雄霸做到信誉，信任，信服。

8.一样的产品，不一样的是价格与服务。

9.您的选择，就是我们的前进的动力。

 联系方式:
联系人:聂淑芬
电话/微信:18030182217
邮箱：nieshufen1998@qq.com

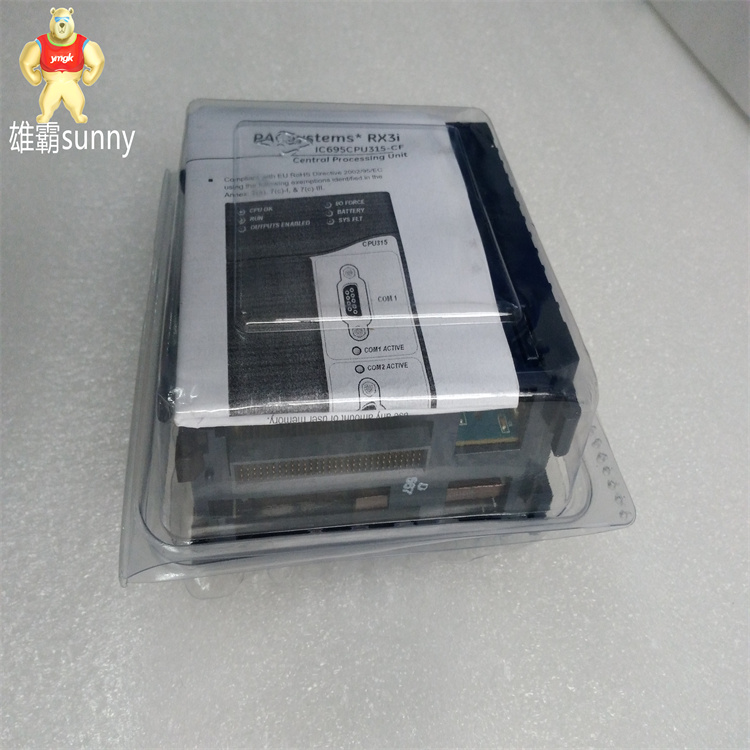

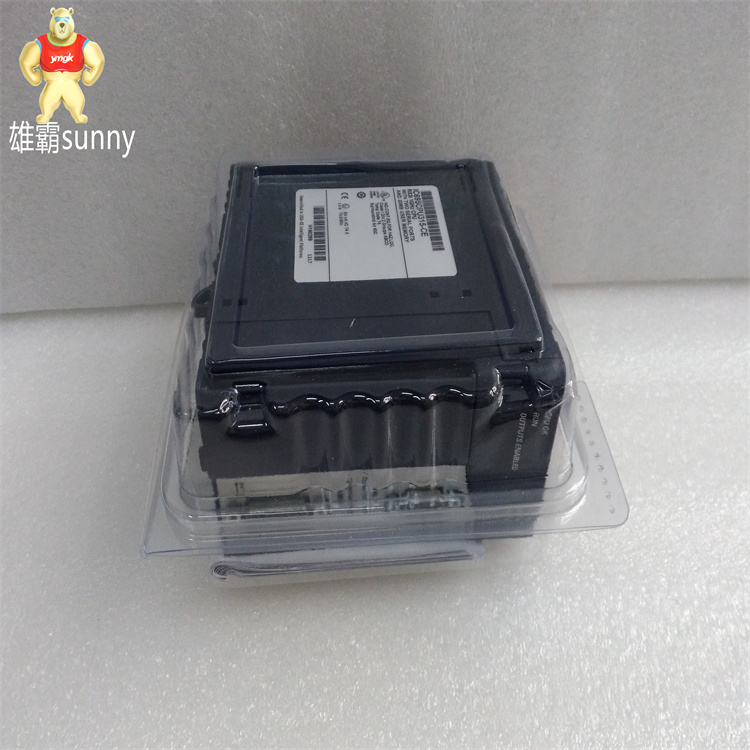

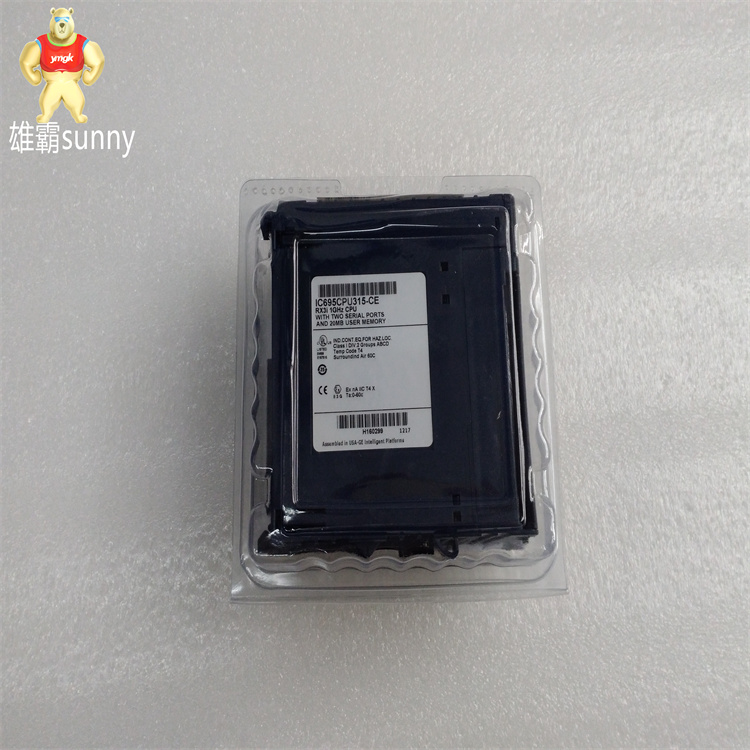

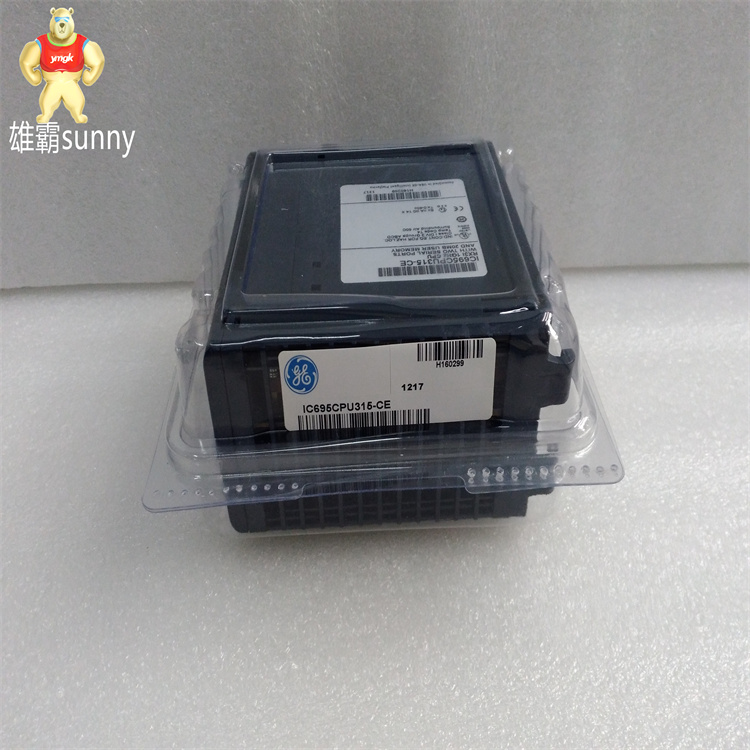

产品图片：

The PACSystems* RX3i CPU can be used to perform real time control of machines, processes, and material handling systems. The CPU communicates with the programmer and HMI devices via a serial port using SNP Slave protocol. It communicates with I/O and smart option modules over a dual backplane bus that provides: ▪ High-speed PCI backplane for fast throughput of new advanced I/O. ▪ Serial backplane for easy migration of existing Series 90*-30 I/O.
Features ▪ Contains 20 Mbytes of battery-backed user memory and 20 Mbytes of non-volatile flash user memory. ▪ Provides access to bulk memory via reference table %W. ▪ Configurable data and program memory. ▪ Programming in Ladder Diagram, Structured Text, Function Block Diagram, and C. Refer to PACSystems RX7i & RX3i CPU Programmer’s Reference Manual, GFK-2950. ▪ Supports auto-located Symbolic Variables that can use any amount of user memory. ▪ Reference table sizes include 32Kbits for discrete %I and %Q and up to 32K words each for analog %AI and %AQ. ▪ Supports most Series 90-30 modules and expansion racks. For a list of supported I/O, Communications, Motion, and Intelligent modules, refer to the PACSystems RX3i System Manual, GFK-2314F or later. ▪ Supports up to 512 program blocks. Maximum block size is 128KB. ▪ CPU firmware may be upgraded in the field. ▪ CPU supports firmware upgrades of modules in its backplane. ▪ Two serial ports: an RS-485 serial port and an RS-232 serial port. ▪ Ethernet communications via the rack-based Ethernet Interface module (IC695ETM001). For details on Ethernet capabilities, refer to PACSystems RX7i & RX3i TCP/IP Ethernet Communications User Manual, GFK-2224. ▪ Time Synchronization to SNTP Time Server on Ethernet network when used with Ethernet Release 5.0 or later module. ▪ Compliant with EU RoHS Directive 2002/95/EC using the following exemptions identified in the Annex: 7(a), 7(c)-I, & 7(c)-III
