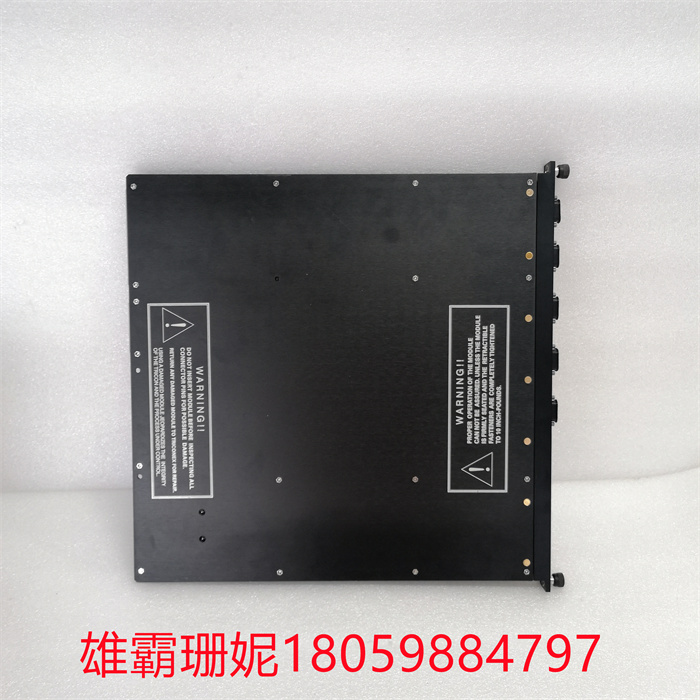

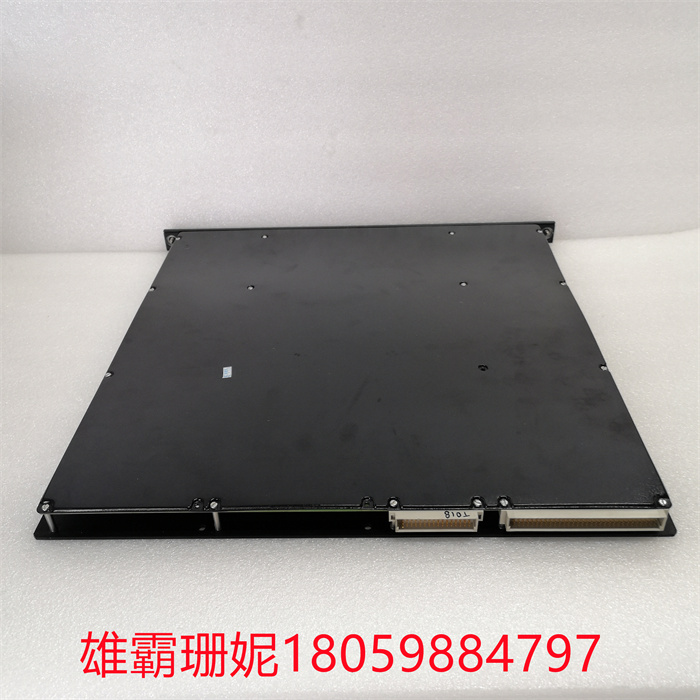

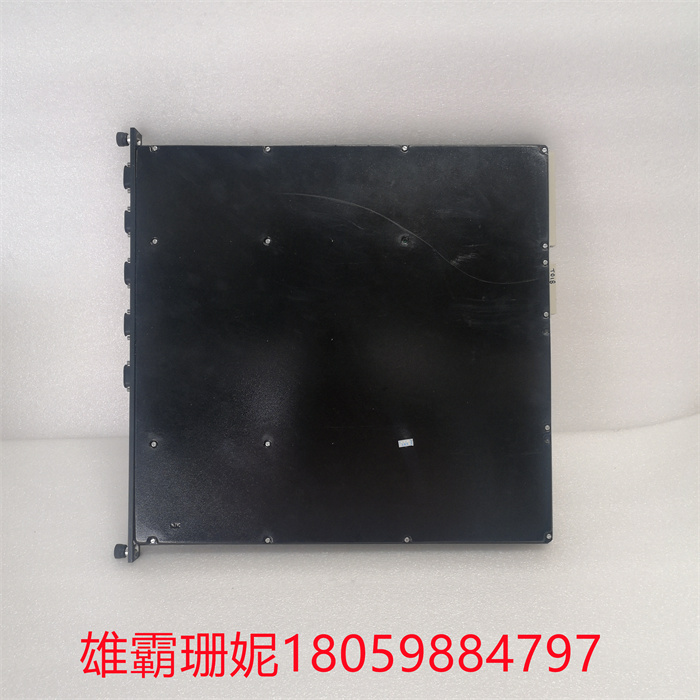

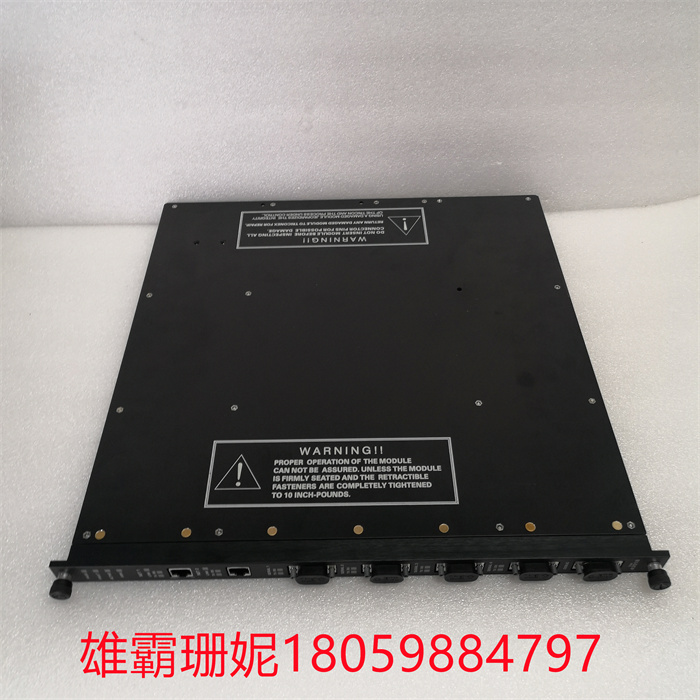

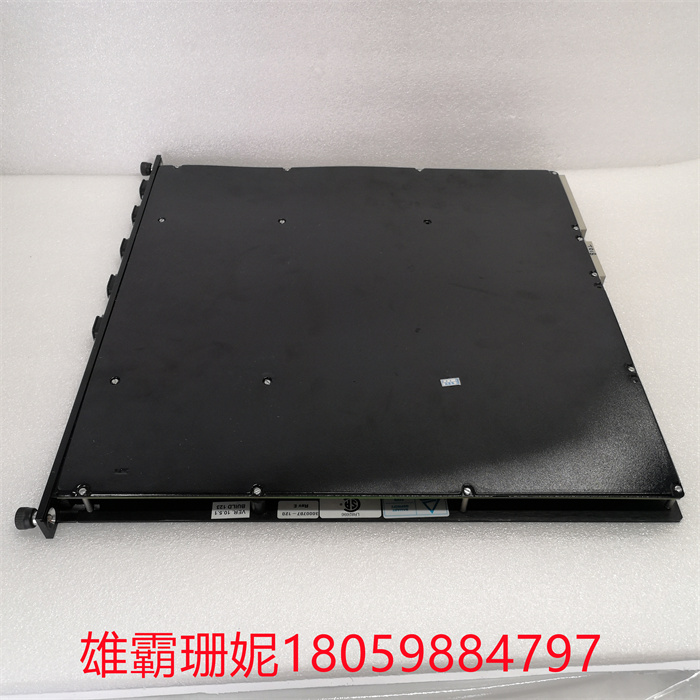

TRICONEX 4351B Tricon通信模块

TRICONEX 4351B Tricon通信模块

型号4351A, 4351B, 4352A, 4352B, 4353, 4354

串口4,RS-232/RS-485端口，DB-9连接器

2, 10/100BaseT以太网端口，RJ-45连接器(型号4351A, 4351B, 4353)

2、光纤模式以太网端口，MT-RJ连接器带62.5/125

um光纤电缆(型号4352A, 4352B, 4354)

端口隔离500 VDC

协议三站，Modbus, TCP/IP, ICMP, SNTP, TSAA(支持IP)

多播)，Trimble GPS，嵌入式OPC服务器(型号4353和

4354)，点对点(UDP/IP)，点对点时间同步，Jet

直接(网络打印)

Modbus功能

支持

01 -读取线圈状态06 -修改寄存器内容

02 -读输入状态。07 -读异常状态

03 -读寄存器08 -回环诊断测试
读取输入寄存器15 -力多线圈
05 -修改线圈状态16预设多个寄存器
沟通

速度

铜以太网端口:10/100 Mbps(型号4353只支持100

Mbps)

光纤以太网端口:100mbps

串口:每个端口高可达115.2 Kbps

状态指示灯:通过、故障、活动、牢固

LINK -每个网络端口1个，TX(传输)-每个端口1个，

RX(接收)-每个端口1个

由TRICONEX制造


Model Number 4351A, 4351B, 4352A, 4352B, 4353, 4354

Serial ports 4, RS-232/RS-485 ports, DB-9 connectors

Network ports 2, 10/100BaseT Ethernet ports, RJ-45 connectors (Models 4351A, 4351B, 4353)

2, fiber-optic mode Ethernet ports, MT-RJ connectors with 62.5/125

um fiber cables (Models 4352A, 4352B, 4354)

Port isolation 500 VDC

Protocols TriStation, Modbus, TCP/IP, ICMP, SNTP, TSAA (with support for IP

Multicast), Trimble GPS, Embedded OPC Server (Models 4353 and

4354), Peer-to-Peer (UDP/IP), Peer-to-Peer Time Synchronization, Jet

Direct (network printing)

Modbus functions

supported

01 — Read Coil Status 06 — Modify Register Content

02 — Read Input Status 07 — Read Exception Status

03 — Read Holding Registers 08 — Loopback Diagnostic Test

04 — Read Input Registers 15 — Force Multiple Coils

05 — Modify Coil Status 16 — Preset Multiple Registers

Communication

speed

Copper Ethernet ports: 10/100 Mbps (Model 4353 supports only 100

Mbps)

Fiber Ethernet ports: 100 Mbps

Serial ports: up to 115.2 Kbps per port

Status Indicators PASS, FAULT, ACTIVE, FIRM

LINK— 1 per network port, TX (Transmit) — 1 per port,

RX (Receive) — 1 per port

Manufactured by TRICONEX
