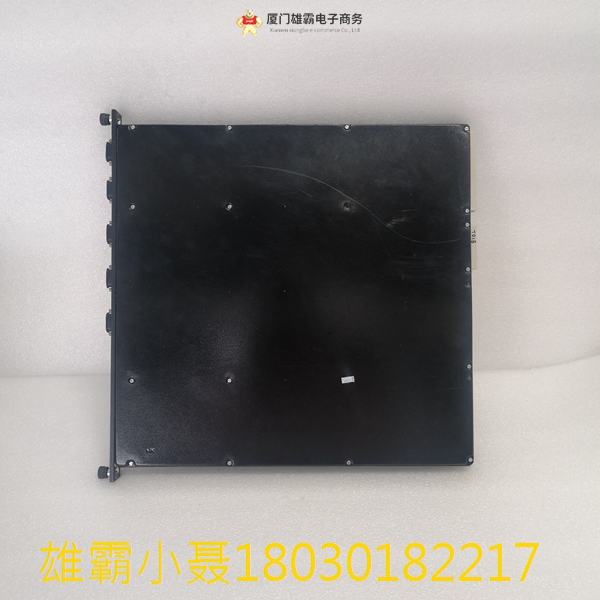

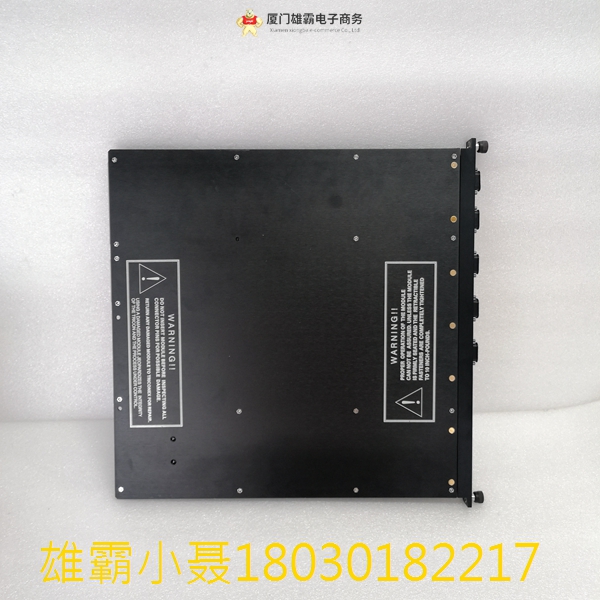

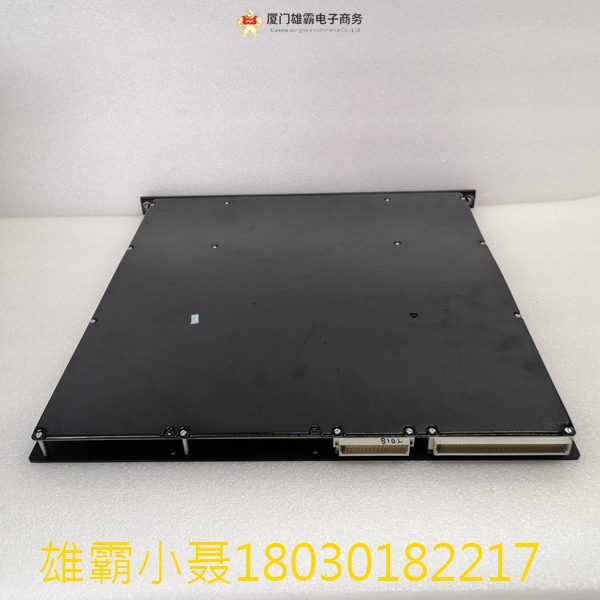

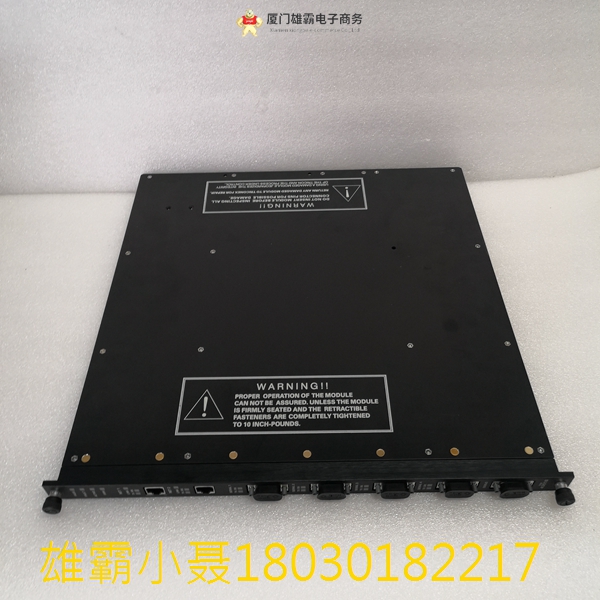

TRICONEX 3511 脉冲输入模块

3511三通道3511脉冲输入模块3511

输入TMR, PI

输入信号8，非共

分辨率16位

精度1000hz ~ 20000hz，±0.01%

输入特性(交流耦合，平衡差分)

更新速率25毫秒，典型

阻抗(负载)> 8kw，典型20kw

共模范围- 100vdc ~ + 100vdc峰对峰

正常模式范围1.5 V至200v峰对峰

超量程保护±150vdc，连续

迟滞150毫伏，典型

波形正弦、方形、脉冲等。

占空比10% ~ 90%

频率20hz ~ 20000hz

电流范围0-20 mA(250欧姆分流)

诊断指示灯(ON=true)

每个点输入状态1

模块状态通过、故障、激活

颜色浅紫色

制造商:TRICONEX，美国制造

3511 TRICONEX 3511 INPUT MODULE PULSE 3511

Type TMR, PI

Input Signals 8, non-commoned

Resolution 16 bits

Accuracy 1,000 Hz to 20,000 Hz, ± 0.01%

Input Characteristics (AC coupled, balanced differential)

Update Rate 25 ms, typical

Impedance (load) > 8 KW, 20 KW typical

Common Mode Range -100 VDC to +100 VDC peak-to-peak

Normal Mode Range 1.5 V to 200 V peak-to-peak

Overrange Protection ±150 VDC, continuous

Hysteresis 150 millivolts, typical

Wave Shape Sine, square, pulse, etc.

Duty Cycle 10% to 90%

Frequency 20 Hz to 20,000 Hz

Current Range 0-20 mA (250-ohm shunt)

Diagnostic Indicators (ON=true)

Input Status 1 per point

Module Status PASS, FAULT, ACTIVE

Color Light Purple

MFG: TRICONEX, Made in USA
