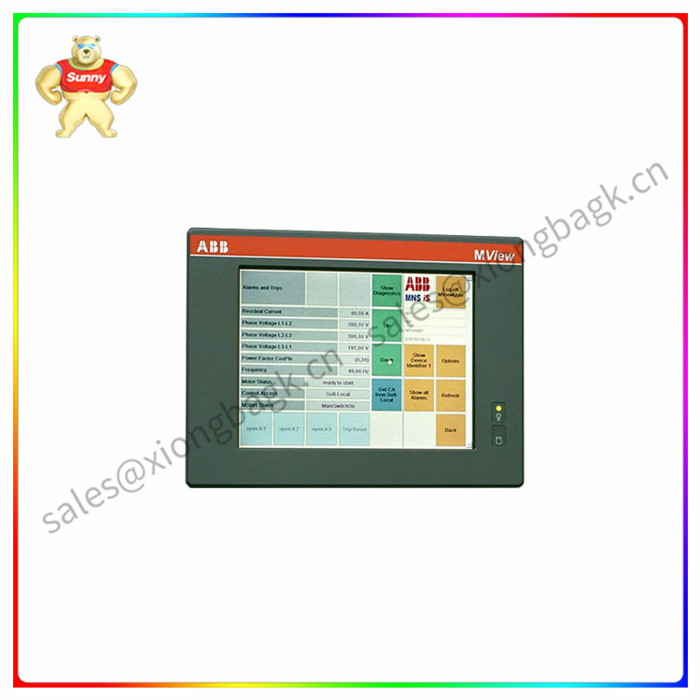

1TGE120028R0010 ABB 触摸屏人机界面

1TGE120028R0010 ABB 触摸屏人机界面

触摸屏画面由专用软件进行设计，然后先通过编程电脑仿真调试，认为正确后再下载到触摸屏。触摸屏画面总数应在其存储空间允许的范围内，各画面之间尽量做到可相互切换。

( 1）主画面的设计
一般状况，可用欢迎画面或被控系统的主系统画面作为主画面，该画面可进入到各分画面。各分画面均能一步返回主画面。若是将被控主系统画面作为主画面，则应在画面中显示被控系统的一些主要参数，以便在此画面上对整个被控系统有大致的了结。

(2)把握画面的设计
该画面主要用来把握被控设备的启停及显示p1c内部的参数，也可将PLC参数的设定做在其中。该种画面的数量在触摸屏画面中占的多，其具体画面数量由实际被控设备打算。

The touch screen screen is designed by special software, and then it is simulated and debutted by a programmed computer first, and then downloaded to the touch screen after it is considered correct. The total number of touch screen screens should be within the range allowed by its storage space, and the screens can be switched between each other as far as possible.

(1) Design of the main screen
In general, the welcome screen or the main system screen of the controlled system can be used as the main screen, which can be entered into each sub-screen. Each sub-screen can return to the main screen in one step. If the controlled main system screen is used as the main screen, some main parameters of the controlled system should be displayed in the screen, so as to have a rough conclusion of the entire controlled system on this painting surface.

(2) Grasp the design of the picture
The screen is mainly used to grasp the start and stop of the controlled equipment and display the internal parameters of p1c, and can also set the PLC parameters in it. The number of such pictures accounts for the most in the touch screen screen, and the specific number of pictures is intended by the actual controlled device.
