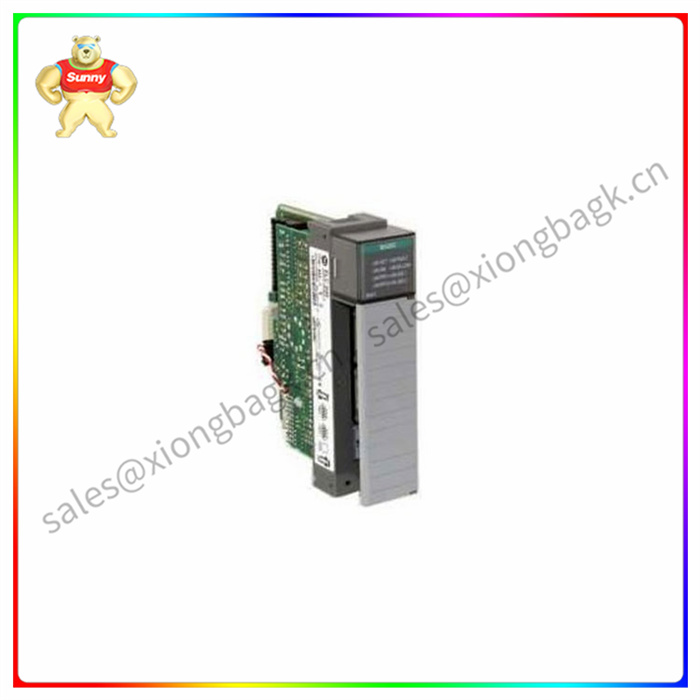

Allen-Bradley 1747-ACNR15 模块控制系统

Allen-Bradley 1747-ACNR15 模块控制系统

Allen-Bradley 1747-ACNR15为ControlNet网络上的1746V/O提供远程控制。1747-ACN15是Allen-Bradley control net适配器模块的一个版本。总的来说，1747-ACNR15的规格和功能与1747-ACNR15相似。

Allen-Bradley 1747-ACNR15的工作温度为32-140F，储存温度为-40-185°F。两个温度范围的相对湿度范围为5-95%,无冷凝。Allen-Bradley 1747-ACNR15还符合多项标准，包括NEMA标准CS 2-230、EN50081-2A级、IEC1000-4-2和EC1000-4-3标准。

艾伦-布拉德利1747-ACNR15也通过了CSA认证。该ControlNet适配器模块在5VDC下以900 mA的大底板电流运行。请记住将此数量添加到/O机箱的其他流星要求中。您可以通过4个可用分接头中的一个将1747-ACN15或-ACNR15适配器模块连接到ControlNet网络。

1747-ACNR15由2个ControlNet连接器组成。该模块还有控制网络状态指示器和模块网络地址开关组件。Allen-Bradley 1747-ACNR15还具有高速数据传输功能和诊断信息。Allen Bradley 1747-ACNR15具有本地通信网络接入，可以通过网络接入端口(NAP)连接到其他设备。1747-ACN15和1747-ACNR15适配器模块之间的一个区别是1747-ACNR15具有冗余介质功能。使用1786-CP电统将模块的编程终端连接到网络。它将通过NAPs连接。

Allen-Bradley 1747-ACNR15 provides remote control for 1746V/O on the ControlNet network. The 1747-ACN15 is a version of the Allen-Bradley control net adapter module. Overall, the 1747-ACNR15's specifications and functions are similar to those of the 1747-ACNR15.

Allen-Bradley 1747-ACNR15 has an operating temperature of 32-140F and a storage temperature of -40-185°F. The relative humidity range for both temperature ranges is 5-95% with no condensation. Allen-Bradley 1747-ACNR15 also complies with several standards, including NEMA standard CS 2-230, EN50081-2A class, IEC1000-4-2 and EC1000-4-3.

The Allen-Bradley 1747-ACNR15 is also CSA certified. The ControlNet adapter module operates at a maximum baseboard current of 900 mA at 5VDC. Remember to add this amount to the other meteor requirements in the /O case. You can connect the 1747-ACN15 or -ACNR15 adapter module to the ControlNet network through one of the four available taps.

The 1747-ACNR15 consists of 2 ControlNet connectors. The module also has control network status indicator and module network address switch components. Allen-Bradley 1747-ACNR15 also has high-speed data transmission capabilities and diagnostic information. Allen Bradley 1747-ACNR15 has local communication network access and can be connected to other devices via a Network Access port (NAP). One difference between the 1747-ACN15 and 1747-ACNR15 adapter modules is that the 1747-ACNR15 has a redundant media function. Connect the programming terminal of the module to the network using the 1786-CP electrical system. It will be connected via NAPs.
