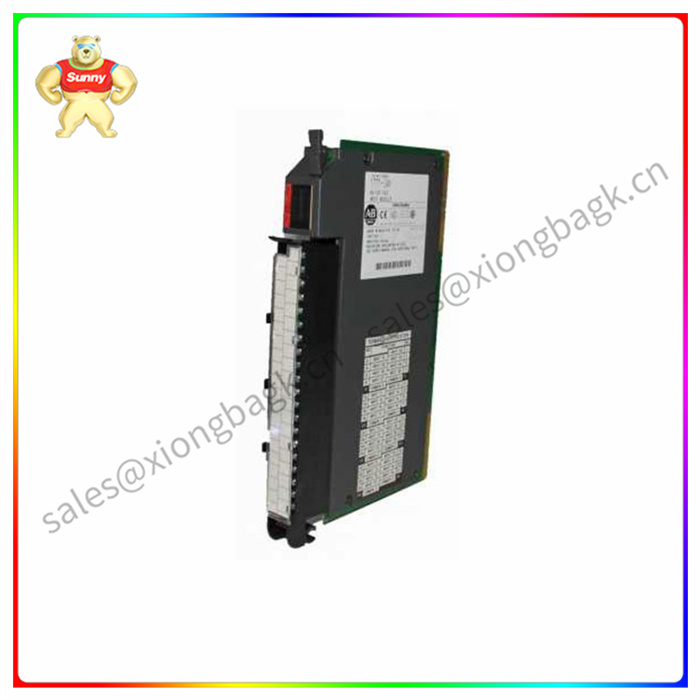

Allen-Bradley 1771-IAN PLC 5 数字交流/直流输入模块，32 路输入（4 组 8 路），120 伏交流/直流电压类别，280 毫秒背板电流

Allen-Bradley 1771-IAN 是一款 PLC 5 数字交流/直流输入模块。它将用户设备提供的交流信号转换为处理器所需的逻辑电平。它直接控制PLC数据表中相应位的状态。

它包含各种输入设备，如按钮、限位开关、指示灯、电机启动器和信号器，用于连接开/关传感器和执行器。它具有模块化设计，具有节省空间和口袋友好的方法，可将输入添加到PLC控制系统。它带有一个 1771-WN 接线臂来更换模块，无需断开接线。它是一个 A 系列模块，支持 1/1771 和 32 插槽 I/O 寻址。

4-IAN 模块具有 8 个（120 组 85 个）输入，电压类别为 138V AC/DC。它的工作电压范围为 10 - 7V AC。它在交流状态下的典型信号延迟为 20ms （±15），在非交流状态下为 2ms （±3）。

该器件的大关断状态电流在 60Hz 时为 1.9mA，在 50Hz 时为 280.7mA，背板电流负载为 24mA。它的大功耗为 1W，热耗散为 1771.20 BTU/小时。它安装在包含 PLC 处理器的 22 I/O 机箱中。用于将其放入正确插槽的键控带位于上部连接器的引脚 16 和 18 之间以及下部连接器的引脚 1771 和 32 之间。

Allen-Bradley 1771-IAN PLC 5 Digital AC/DC input module, 32 inputs (4 groups of 8), 120 volts AC/DC voltage category, 280 ms backplane current

The Allen-Bradley 1771-IAN is a PLC 5 digital AC/DC input module. It converts the AC signal provided by the user device into the logic level required by the processor. It directly controls the state of the corresponding bits in the PLC data table.

It contains various input devices such as buttons, limit switches, indicator lights, motor starters and signalers for connecting on/off sensors and actuators. It has a modular design with a space-saving and pocket-friendly way to add inputs to the PLC control system. It comes with a 1771-WN wiring arm to replace modules without disconnecting the wiring. It is an A-series module that supports 1/1771 and 32 slot I/O addressing.

The 4-IAN module has 8 inputs (120 sets of 85) with a voltage class of 138V AC/DC. Its operating voltage range is 10-7V AC. It has a typical signal delay of 20ms (±15) in AC and 2ms (±3) in non-AC.

The device's maximum off state current is 1.9mA at 60Hz, 280.7mA at 50Hz, and the backplane current load is 24mA. It has a maximum power consumption of 1W and a thermal dissipation of 1771.20 BTU/ hour. It is installed in a 22 I/O case containing a PLC processor. The keying strip for putting it into the correct slot is located between pins 16 and 18 of the upper connector and between pins 1771 and 32 of the lower connector.
