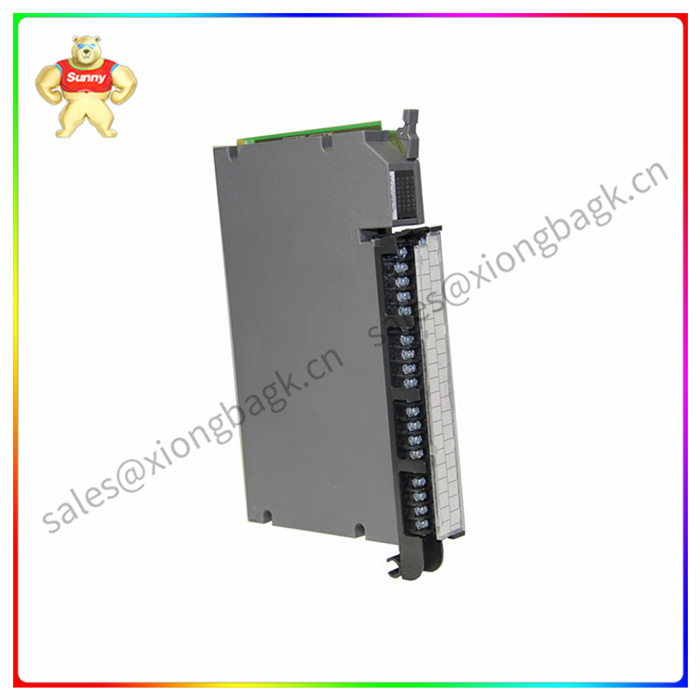

1771-IVN输出模块

1771-IVN输出模块

1771-IVN该模拟输入模块具有八（8）个输入通道，可兼容+5V输入（+20mA，带电阻RTP），分辨率为16位。

它适用于安装在1771-A1B、A2B、A3B、A3B1、A4B、1771-AM1和AM2机箱中。

Allen-Bradley 1771-IVN是高分辨率模拟输入模块，是1771产品公告的一部分。

该模拟输入模块具有八（8）个输入通道，兼容输入信号，例如+/-5V输入（+/-20mA，带电阻RTP），分辨率为16位。

该模块兼容1771-A1B、A2B、A3B、A3B1、A4B、1771-AM1和AM2机箱。

1771-IVN兼容不同的处理器，如PLC3和PLC5控制器。

IT与PLC2处理器不兼容。1771-NIV的背板电流消耗为1.5安培，功耗为6.0瓦。

该模块具有6极低通硬件滤波器的输入滤波，建议校准间隔为1年。

其工作温度为32至140华氏度或0至60摄氏度，储存温度为-40至185华氏度或040至85摄氏度。

1771-IVN The analog input module has eight (8) input channels, is compatible with +5V inputs (+20mA with resistance RTP), and has a 16-bit resolution.

It is suitable for installation in the 1771-A1B, A2B, A3B, A3B1, A4B, 1771-AM1 and AM2 chassis.

Allen-Bradley 1771-IVN is a high resolution analog input module that is part of the 1771 Product Announcement.

The analog input module has eight (8) input channels compatible with input signals such as +/-5V inputs (+/-20mA with resistance RTP) with a resolution of 16 bits.

The module is compatible with 1771-A1B, A2B, A3B, A3B1, A4B, 1771-AM1 and AM2 enclosures.

The 1771-IVN is compatible with different processors, such as PLC3 and PLC5 controllers.

IT is not compatible with PLC2 processors. The backplane of the 1771-NIV consumes 1.5 amps of current and 6.0 watts of power.

The module has an input filter of 6 extremely low-pass hardware filters with a recommended calibration interval of 1 year.

Its operating temperature is 32 to 140 degrees Fahrenheit or 0 to 60 degrees Celsius, and its storage temperature is -40 to 185 degrees Fahrenheit or 040 to 85 degrees Celsius.
