2711P-T10C4D8 美国罗克韦尔AB触摸屏

2711P-T10C4D8 美国罗克韦尔AB触摸屏

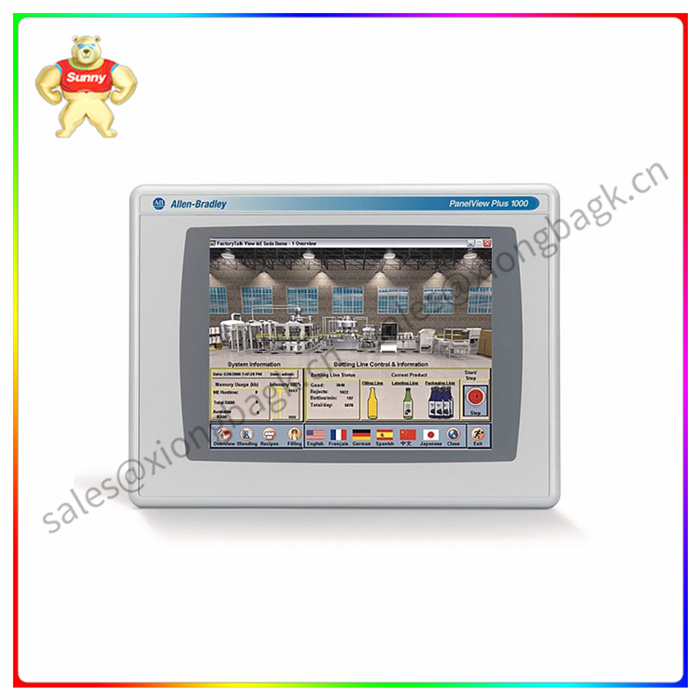

2711P-T10C4D8是Allen-Bradley panel view 6 Plus 1000系列终端。2711P-T10C4D8是一个操作员界面，允许用户监控、管理和显示应用程序状态信息。2711P-T10C4D8使用模块化组件，允许灵活配置、安装和升级。这种工厂组装的终端具有显示模块和逻辑模块。如该装置的零件号所示，它有一个触摸屏输入。它有一个10.4英寸的彩色TFT显示屏，分辨率为640 x 480像素和18位彩色图形。显示器的亮度为300 cd/m2(尼特)。

PanelView Plus系列是一系列坚固耐用的终端，提供与集成架构平台的卓越集成等功能。可选通信模块可用于额外的网络通信。2711P-T10C4D8终端具有以太网、RS-232和2个USB主机端口，用于通信。

2711P-T10C4D8使用18至30伏DC供电。2711P-T10C4D8处理器的速度从350 MHz提高到1 GHz，屏幕转换率比以前的型号快大约70%。2711P-T10C4D8具有256 MB RAM和512 MB非易失性(ROM)的内部存储器。2711P-T10C4D8的背光显示屏的照明也得到了增强。装运重量约为8磅，尺寸为16 x 14 x 8英寸。但是，2711P-T10C4D8可以连接到各种外部硬件，如打印机、鼠标和键盘。

The 2711P-T10C4D8 is an Allen-Bradley panel view 6 Plus 1000 series terminal. The 2711P-T10C4D8 is an operator interface that allows users to monitor, manage, and display application status information. The 2711P-T10C4D8 uses modular components to allow flexible configuration, installation, and upgrades. This factory-assembled terminal has a display module and a logic module. As indicated by the part number of the device, it has a touch screen input. It has a 10.4-inch color TFT display with a resolution of 640 x 480 pixels and 18-bit color graphics. The brightness of the display is 300 cd/m2(nits).

The PanelView Plus series is a range of rugged terminals that offer features such as superior integration with integrated architecture platforms. Optional communication modules can be used for additional network communication. The 2711P-T10C4D8 terminal has Ethernet, RS-232, and 2 USB host ports for communication.

The 2711P-T10C4D8 uses 18 to 30 volt DC power supply. The 2711P-T10C4D8 processor speeds up from 350 MHz to 1 GHz, and the screen conversion rate is approximately 70% faster than the previous model. The 2711P-T10C4D8 has 256 MB of RAM and 512 MB of non-volatile (ROM) internal memory. The illumination of the 2711P-T10C4D8's backlit display has also been enhanced. The shipping weight is approximately 8 pounds and the dimensions are 16 x 14 x 8 inches. However, the 2711P-T10C4D8 can be connected to a variety of external hardware such as printers, mice, and keyboards.
