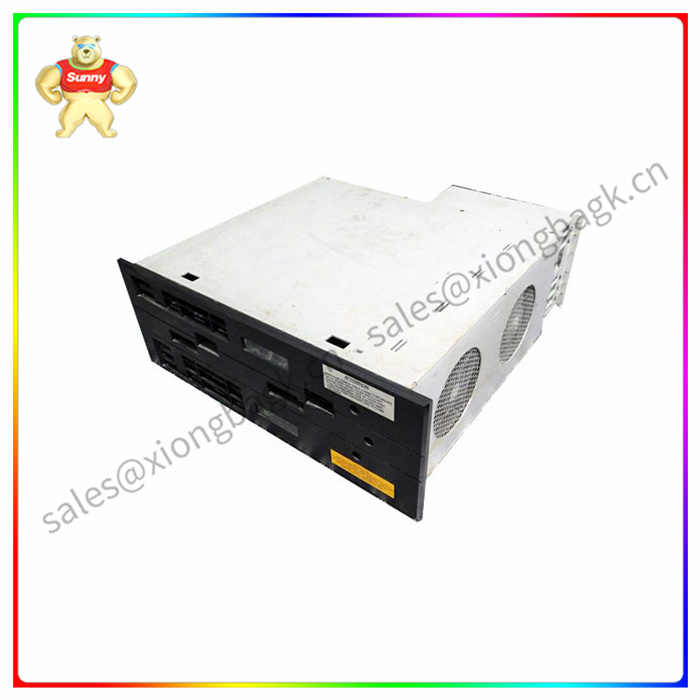

51402455-100 MP-DNCF02-200 霍尼韦尔 处理器 processor

51402455-100 MP-DNCF02-200 霍尼韦尔 处理器 processor

产品说明

支持多达2个轴

可配置为支持步进或伺服电机

每轴5伏容差PWM/脉冲和方向输出，确保与商用放大器兼容

每轴双通道(CHA和CHB)增量编码器正交输入

每轴两个方向(正向和反向)限制

每个轴一个原点指示器

一个UART接口端口，配置为115200 bps，与主机处理器接口易于使用的基于ASCII的编程指令

小尺寸，城堡形端子，易于集成到PCB上

齿形端子之间的间距为2.54毫米，这与普通原型和面包板兼容

+5伏工作电压

Product description

Supports up to 2 axes

Can be configured to support stepper or servo motors

5 volt tolerance PWM/ pulse and directional output per axis, ensuring compatibility with commercial amplifiers

Dual channel per axis (CHA and CHB) incremental encoder orthogonal input

Two directions (forward and reverse) limit per axis

One origin indicator per axis

A UART interface port, configured at 115200 bps, interfaces with the host processor for easy to use ASCII-based programming instructions

Small size, castle-shaped terminals for easy integration into the PCB

The spacing between the toothed terminals is 2.54 mm, which is compatible with common prototypes and breadboards

+5 volts operating voltage
