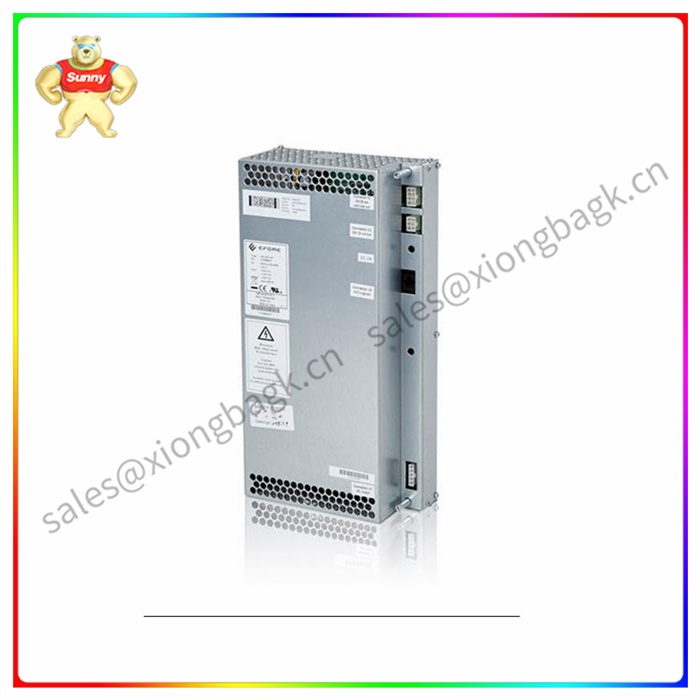

DSQC627 3HAC020466-001ABB电源模块

DSQC627 3HAC020466-001ABB电源模块

技术说明

状态LED

灭(OFF） 没有对模件供电

绿色模件处于正常状态，按照下装组态开始工作

橘黄色表示模件供电正常，CPU已确认该模件

-处于模件正常运行前的中间状态，时间很短

-或是模件处于BootLoader模式

橘黄闪烁表示模件供电正常，CPU已确认该模件，但模件不能与合适的总线

—模件尚未被CPU确认(模件刚上电的时，时间很短)

—模件自测出现错误

电池低LED

灭(OFF)保护电池电压处于正常范围

橘黄色未安装保护电池或电池电压低于下限

Technical specification

Status LED

OFF No power is supplied to the module

The green module is in normal state and starts to work according to the bottom configuration

Orange indicates that the module power supply is normal, and the CPU has confirmed the module

- In the intermediate state before the normal operation of the module, the time is very short

- Or the module is in BootLoader mode

Blinking orange indicates that the module power supply is normal. The CPU has confirmed the module, but the module cannot connect to a proper bus

- The module has not been confirmed by the CPU (when the module is just powered on, the time is very short)

- Module self-test errors occur

Battery low LED

OFF Indicates that the battery voltage is within the normal range

Orange The protection battery is not installed or the battery voltage is lower than the lower limit
