IS200SPROH1AAB MRP663860 GE PPRO端子板的设备

IS200SPROH1AAB MRP663860 GE PPRO端子板的设备

IS200SPROH2A是一种称为PPRO端子板的设备。这是通用电气公司或通用电气公司的Mark VI系列中的许多印刷电路板或PCB之一。Mark VI是Mark系列中的一个组件系列。

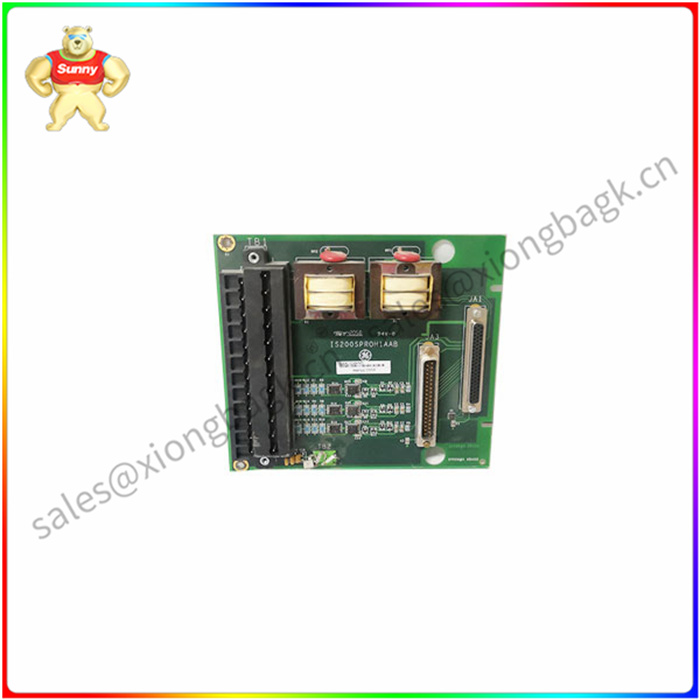

IS200SPROH2A是一个方形电路板，由小到大的各种元件组成。

IS200SPROH2A的左边缘被一个全黑的大型端子板占据。十二(12)个端子包含在该端子板内。两(2)个连接器端口位于IS200SPROH2A的右侧。这些端口是黑色的，安装在银盘上。

IS200SPROH2A顶部的两(2)个变压器配对在一起。这些变压器是方形和红色的。在这些变压器的顶部是黄色和黑色的部分。这些组件被标记为T1和T2。右侧变压器下方有一个非常小的电阻，电阻上有黑带。

另一个小电阻的空间可以在另一个变压器下面找到。在IS200SPROH2A的左半部分，12个矩形的蓝色小电阻排列成一组。这些电阻器排列成三(3)行，每行四(4)个。这些电阻下方是一个小型绿色端子板。端子板有六(6)个端子。在IS200SPROH2A的中心附近，可以找到六(6)个黑色矩形小电容器。

The IS200SPROH2A is a device called a PPRO terminal board. This is one of many printed circuit boards or PCBS in the General Electric Company or GE's Mark VI series. Mark VI is a component family in the Mark family.

The IS200SPROH2A is a square circuit board composed of various components from small to large.

The left edge of the IS200SPROH2A is occupied by a large, all-black terminal plate. Twelve (12) terminals are contained in the terminal board. The two (2) connector ports are located to the right of the IS200SPROH2A. The ports are black and mounted on a silver plate.

Two (2) transformers at the top of the IS200SPROH2A are paired together. These transformers are square and red. At the top of these transformers are the yellow and black sections. These components are labeled T1 and T2. There is a very small resistor below the transformer on the right, with a black band on the resistor.

Another space for a small resistor can be found under another transformer. In the left half of the IS200SPROH2A, 12 rectangles of small blue resistors are arranged in a group. These resistors are arranged in three (3) rows of four (4) each. Below these resistors is a small green terminal plate. The terminal board has six (6) terminals. Near the center of the IS200SPROH2A, six (6) small black rectangular capacitors can be found.
