IS200TSVCH2ADC MRP061873 Speedtronic涡轮控制 印刷电路板

IS200TSVCH2ADC MRP061873 Speedtronic涡轮控制 印刷电路板

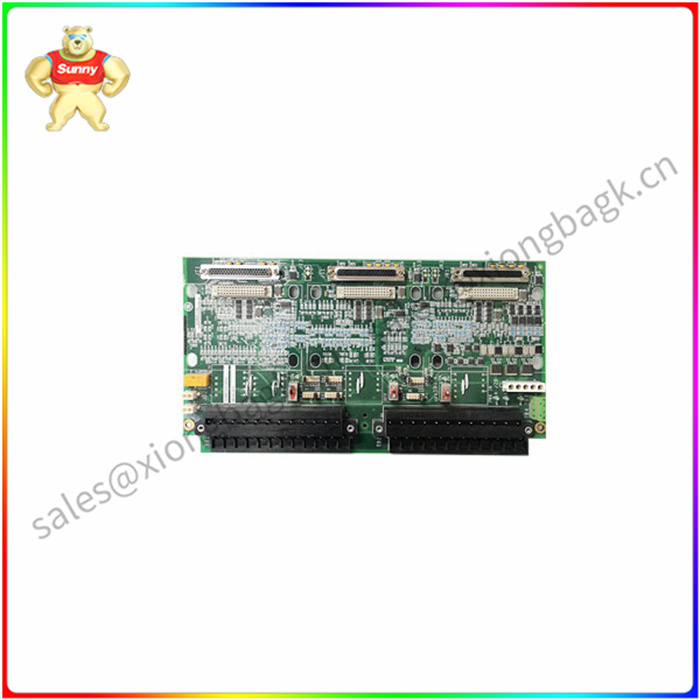

IS200TSVCH2AED是 Mark VI 印刷电路板，设计用作伺服终端板。 作为 Mark VI 或 Mark VIe Speedtronic 系统的一部分，这是通用电气公司提供的几种涡轮机专用终端板之一。

 这些 I/O 模块提供与现场设备的直接接口。 这有助于减少或消除过去需要的大量仪表。 这种减少大大简化了长期维护工作，并消除了系统中的故障点。 它还能进行直接诊断，以便直接监控现场设备。 该电路板通常与 PSVOH1A 套件一起使用。

IS200TSVCH2AED是一个可拆卸的屏障式接线板。 电路板有 2 个线圈输出、2 个通道和 2 个脉冲速率输入。 电路板提供 8 个 LVDT。

IS200TSVCH2AED沿电路板顶部有两行垂直连接器。 电路板右下方靠近一个小型端子连接器的位置还有其他连接器。 电路板左侧还有两个垂直连接器。 此外，电路板底部还有两个端子排。

The IS200TSVCH2AED is a Mark VI printed circuit board designed to be used as a servo terminal board. As part of the Mark VI or Mark VIe Speedtronic system, this is one of several turbine specific end boards offered by General Electric.

These I/O modules provide a direct interface to field devices. This helps to reduce or eliminate the large number of meters that were needed in the past. This reduction greatly simplifies long-term maintenance and eliminates points of failure in the system. It also enables direct diagnostics for direct monitoring of field equipment. The board is commonly used with the PSVOH1A kit.

The IS200TSVCH2AED is a removable screen panel. The board has 2 coil outputs, 2 channels, and 2 pulse rate inputs. The board offers 8 LVDTS.

The IS200TSVCH2AED has two rows of vertical connectors along the top of the board. There are additional connectors at the bottom right of the board near a small terminal connector. There are also two vertical connectors on the left side of the board. In addition, there are two terminal blocks on the bottom of the board.
