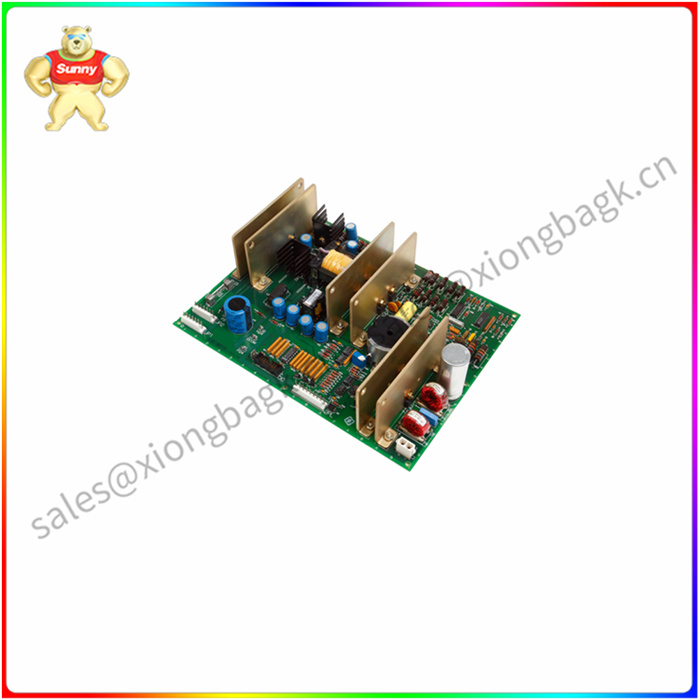

DS200CDBAG1B是通用电气公司为Mark V板系列生产的电源板。AC2000、CB2000、DC2000、FC2000、ME2000和EX2000系列机器可以将板安装在驱动器中。

安装后，此卡可以提供控制级电源和机箱风扇电源去车道。额定电压在38到115伏之间可以通过控制电源变压器直接提供给电路板。电路板的频率取决于输入电压，但范围可以从0至500千赫。

该板具有许多电路，用于为板和安装的驱动器供电。DS200CDBAG1B包括电机磁场电源、驱动器、交流/DC监控和控制级电源电路。这十二个跳线和七个DIP开关为用户提供可配置的系统选项。保险丝开关诊断使用两个LED和一个霓虹灯指示灯在黑板上找到的。三个保护保险丝防止电源中断。可以使用监控电压五个测试点集成在电路板上。

The DS200CDBAG1B is a power supply board produced by General Electric for the Mark V series of boards. AC2000, CB2000, DC2000, FC2000, ME2000 and EX2000 series machines can install the board in the drive.

When installed, this card can provide control level power and chassis fan power to the lane. Rated voltages between 38 and 115 volts can be supplied directly to the board via a control power transformer. The frequency of the board depends on the input voltage, but can range from 0 to 500 KHZ.

The board has a number of circuits that are used to power the board and the mounted drivers. The DS200CDBAG1B includes a motor field power supply, driver, AC /DC monitoring and control-level power supply circuit. These twelve jumpers and seven DIP switches provide users with configurable system options. The fuse switch is diagnosed using two leds and a neon indicator found on the blackboard. Three protective fuses prevent power outages. The voltage can be monitored using five test points integrated on the circuit board.
