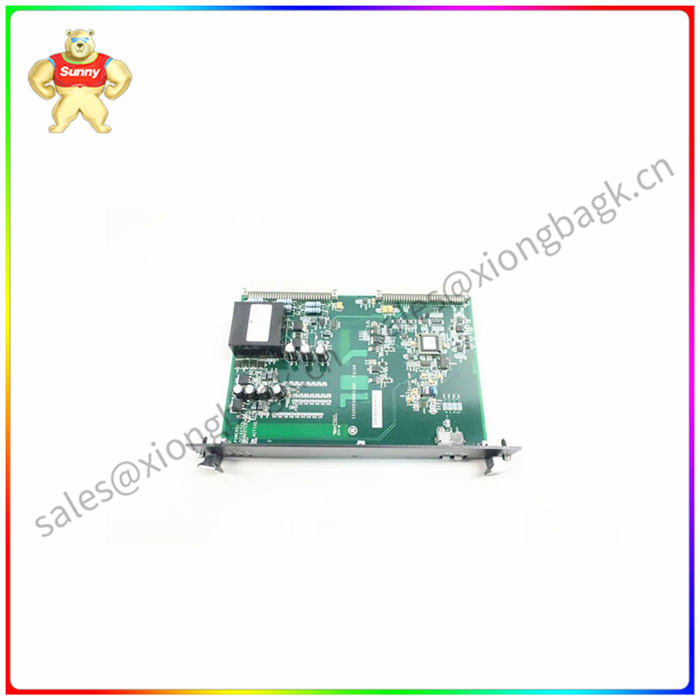

IS200EGDMH1ADF的励磁器交流反馈板是EX2100系列的一部分

IS200EGDMH1ADF的励磁器交流反馈板是EX2100系列的一部分

IS200EGDMH1ADF模块也在EX2100系列中标记为输入/输出端子板。该模块还处理大多数桥的交流电压和电流反馈，因为它测量励磁电源电位互感器(PPT)交流电压供应。有三个变压器包含在板将测量三相电压。

IS200EGDMH1ADF可以连接到EBKP背板型号。当连接IS200EGDMH1ADF和EBKP背板时，连接板的电缆长度不超过90毫米。IS200EGDMH1ADF型号上标有TB1、TB2和TB3的三个螺钉连接器严格用于电压输入。

在IS200EGDMH1ADF上有三个9针连接器，分别是J504, J509和J514，这些连接器用于连接EMIO板的EBKP背板的电缆。

The IS200EGDMH1ADF module is also labeled as an input/output terminal board in the EX2100 series. The module also handles AC voltage and current feedback for most Bridges as it measures the AC voltage supply of the excitation power source Potential transformer (PPT). There are three transformers contained in the board that will measure the three-phase voltage.

The IS200EGDMH1ADF can be connected to the EBKP backplane model. When connecting IS200EGDMH1ADF and EBKP backplanes, the cable length of the connecting plate should not exceed 90 mm. The three screw connectors labeled TB1, TB2, and TB3 on the IS200EGDMH1ADF model are strictly for voltage input.

There are three 9-pin connectors on the IS200EGDMH1ADF, namely J504, J509 and J514, which are used to connect cables to the EBKP backplane of the EMIO board.
