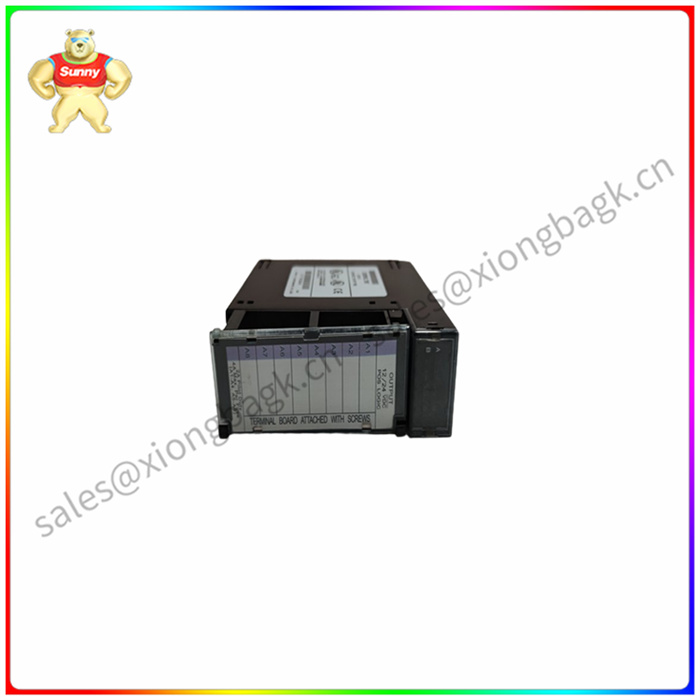

IC693MDL730 正逻辑输出模块 提供12-24 VDC的输出电压范围

IC693MDL730 正逻辑输出模块 提供12-24 VDC的输出电压范围

IC693MDL730在现场侧和逻辑侧之间提供高达1500伏的隔离。输出通道的浪涌电流额定值为9.4安培，持续10毫秒；大输出电压降为12伏；大关断状态漏电流为1 mA，每次转换的典型开关响应时间为2ms。

该模块占用90-30基板的一个插槽，并与90-30系列五(5)或十(10)插槽基板的任何I/O插槽兼容。当所有输出均通电时，它的电流消耗为55 mA，来自背板上的5 VDC总线。

IC693MDL730兼容各种电气负载，尤其是电机启动器、螺线管和指示器。外部电源必须连接到模块以提供操作电源。状态LED指示器安装在模块的前面板，包括熔断保险丝指示器、模块故障指示器和八(8)个通道指示器，分别分配给每个输出通道，描述每个输出点的运行状态。该模块带有一个可拆卸的端子板，以简化维护。

The IC693MDL730 provides isolation of up to 1500 volts between the field side and the logical side. The output channel has a surge current rating of 9.4 amps for 10 milliseconds; The maximum output voltage drop is 12 volts; The maximum turn-off state leakage current is 1 mA, and the typical switching response time per transition is 2ms.

The module occupies a slot on a 90-30 substrate and is compatible with any I/O slot on a 90-30 series five (5) or ten (10) socket substrate. When all outputs are energized, its current consumption is 55 mA, coming from the 5 VDC bus on the backplane.

The IC693MDL730 is compatible with a wide range of electrical loads, especially motor starters, solenids and indicators. An external power supply must be connected to the module to provide operating power. The status LED indicator is installed on the front panel of the module and includes a blown fuse indicator, a module failure indicator, and eight (8) channel indicators assigned to each output channel, describing the operating status of each output point. The module comes with a detachable terminal board to simplify maintenance.
