IC693BEM320 发那科 GE 电源控制模块

IC693BEM320 发那科 GE 电源控制模块

GE发那科设计和制造的固态串行接口模块被称为IC693BEM320固态串行I/O接口模块。它是为专有的GE Fanuc I/O Link网络协议和系列90-30或系列90-70可编程逻辑控制器(PLC)的互连而制造的。

该模块可以由用户配置，发送32或64个I/O点到GE Fanuc I/O Link，但只能作为从模块，不能作为主模块。GE Fanuc IC693BEM320 I/O模块的配置可以简单地通过将位于前盖内的跳线设置为正确的模式来完成，这取决于用户的应用。模块中有2个串行通信端口，一个用于RS-485串行协议，另一个用于RS-422串行协议。

GE Fanuc IC693BEM320 I/O接口模块的工作温度应保持在0 ~ 60摄氏度(32 ~ 140华氏度)，湿度应控制在5% ~ 95%(无冷凝)。如果预计会出现更极 端的环境条件，强烈建议在GE发那科PLC和模块所在的面板上使用气候控制系统。模块的安装应由合格的技术人员通过将GE Fanuc IC693BEM320 I/O接口模块滑动到系列90-30或90-70 PLC背板的任何可用槽位来完成。模块正面有2个状态led，一个显示模块正确上电，另一个显示模块正常工作。多可设置16个GE Fanuc IC693BEM320 I/O接口模块作为单个主PLC的从设备。

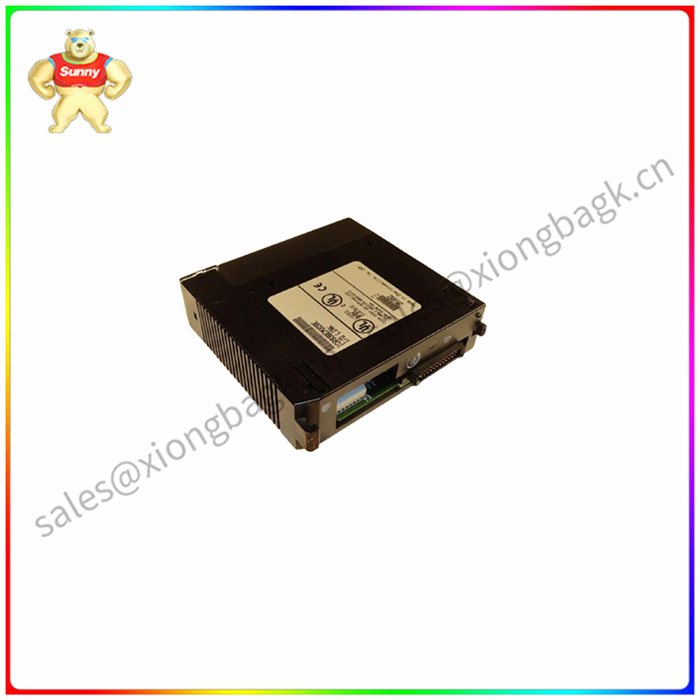

The solid-state serial interface module designed and manufactured by GE Fanuc is called the IC693BEM320 solid-state Serial I/O Interface module. It is manufactured for the proprietary GE Fanuc I/O Link network protocol and the interconnect of Series 90-30 or Series 90-70 programmable logic controllers (PLCS).

The module can be configured by the user to send 32 or 64 I/O points to the GE Fanuc I/O Link, but only as a slave module, not as a master module. The configuration of the GE Fanuc IC693BEM320 I/O module can be done simply by setting the jumper located inside the front cover to the correct mode, depending on the application of the user. There are two serial communication ports in the module, one for RS-485 serial protocol and the other for RS-422 serial protocol.

The operating temperature of the GE Fanuc IC693BEM320 I/O interface module should be maintained at 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit), and the humidity should be controlled at 5% to 95%(no condensation). If more extreme environmental conditions are expected, it is highly recommended to use a climate control system on the panel where the GE Fanuc PLC and modules are located. Installation of the module should be done by a qualified technician by sliding the GE Fanuc IC693BEM320 I/O interface module into any available slot on the series 90-30 or 90-70 PLC backplane. There are 2 status leds on the front of the module, one display module is correctly powered on, and the other display module is working normally. Up to 16 GE Fanuc IC693BEM320 I/O interface modules can be configured as slave devices for a single master PLC.
