IS200VCRCH1B用作分立输入/输出板

IS200VCRCH1B用作分立输入/输出板

IS200VCRCH1B是GE Mark VI板组件。 MKVI是Speedtronic系列燃气轮机和蒸汽轮机管理系统的一部分，自1960年代Mark I发布以来，通用电气一直在开发和改进。MKVI是Speedtronic系列中的第五个管理系统，具有对所有保护参数和关键控制的三重冗余控制，以及用于保护和监控涡轮机系统的先进控制机制。

IS200VCRCH1B用作分立输入/输出板。这是一个单插槽板，具有与VCCC板相同的功能，但不包括子板，因此占用更少的机架空间。但是，由于此主板的继电器输出使用 VME 机架上的 J3/J4 端口，因此电缆必须放置在前面板上。如果不希望这样做，请使用VCCC板而不是VCRC PCB。

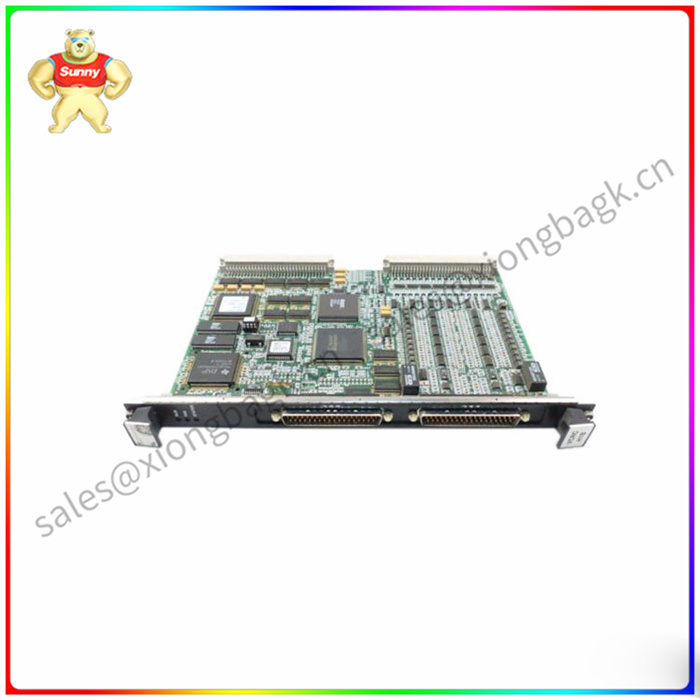

IS200VCRCH1B 有一个带两个电缆连接器（J33 和 J44）的前面板。面板还包含三个 LED 组件，它们位于电路板的顶角附近。这些 LED 为绿色、红色和橙色，并标记为运行、失败和状态。

The IS200VCRCH1B is a GE Mark VI board component. The MKVI is part of the Speedtronic family of gas turbine and steam turbine management systems that GE has been developing and improving since the release of the Mark I in the 1960s. The MKVI is the fifth management system in the Speedtronic family, featuring triple redundant control over all protection parameters and critical controls, as well as advanced control mechanisms for protecting and monitoring turbine systems.

The IS200VCRCH1B is used as a discrete input/output board. This is a single slot board that has the same features as the VCCC board, but does not include the daughter board, so it takes up less rack space. However, since the relay output of this motherboard uses the J3/J4 port on the VME rack, the cable must be placed on the front panel. If you do not wish to do so, use a VCCC board instead of a VCRC PCB.

The IS200VCRCH1B has a front panel with two cable connectors (J33 and J44). The panel also contains three LED components, which are located near the top corner of the board. These leds are green, red, and orange, and are labeled Run, failed, and status.
