IS210BPPBH2BMD是由通用电气公司制造的Mark VI板组件。MKVI是通用电气公司发布的第五个Speedtronic系统，专为蒸汽或燃气轮机管理而设计。从20世纪60年代到本世纪初，Speedtronic系列是通用电气的主要管理产品。该系统包括一个中央控制模块，该模块连接到终端板以及允许访问涡轮机数据、可编程维护工具和警报状态的操作员界面。

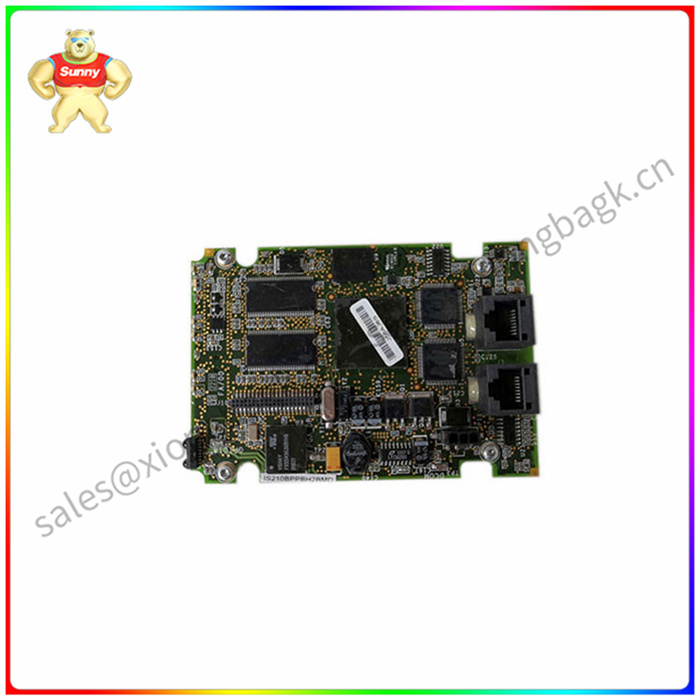

IS210BPPBH2BMD是一个小型辅助板，可连接到一个更大的WETA板。IS210BPPBH2BMD使用穿过四个钻孔的螺钉连接到其主板。这些位于板的每个角附近。螺钉插入支架，然后插入下面的主板。这块板的三边有小切口。

IS210BPPBH2BMD由两个母插头填充。其中之一是三位插头。另一个塞子是长而窄的塞子。该板还有两个母插孔连接器。该板由变压器、晶体管、电感线圈和两个晶体/振荡器组成。它还有两个LED组件，沿着电路板的一边并排放置。

The IS210BPPBH2BMD is a Mark VI board assembly manufactured by General Electric Company. MKVI is the fifth Speedtronic system released by General Electric and is designed specifically for steam or gas turbine management. From the 1960s to the early 2000s, the Speedtronic family was GE's primary management product. The system includes a central control module that is connected to the terminal board and an operator interface that allows access to turbine data, programmable maintenance tools and alarm status.

The IS210BPPBH2BMD is a small auxiliary board that can be connected to a larger WETA board. The IS210BPPBH2BMD is attached to its motherboard using screws threaded through four drill holes. These are located near each corner of the board. Screw into the bracket and then into the motherboard below. There are small incisions on three sides of the board.

The IS210BPPBH2BMD is filled with two female plugs. One of them is three plugs. The other plug is a long, narrow plug. The board also has two female jack connectors. The board consists of a transformer, a transistor, an inductor coil, and two crystals/oscillators. It also has two LED components, placed side by side along one side of the board.
