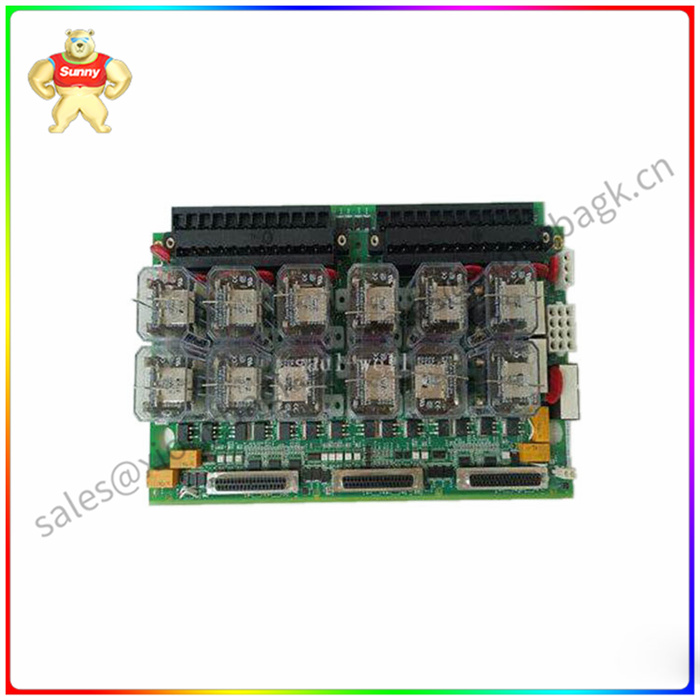

GE DS3800NFIB 电路板 用于涡轮机控制 界首

GE DS3800NFIB 电路板 用于涡轮机控制 界首

产品描述

DS3800NFIB电路板是为用于涡轮机控制的Speedtronic Mark IV系列创建的。Mark IV由通用电气制造。Mark IV是一系列用于燃气轮机和蒸汽轮机的涡轮机自动化控制装置。马克系列 自 1960 年代后期以来一直在使用。Mark IV所使用的技术是从1940年代后期开始开发的。Mark IV控制系统旨在满足涡轮机控制的所有要求。

该系统根据负载控制和速度要求控制液体、气体或两种类型的燃料。Mark IV还控制温度以及水和蒸汽注入。自动启动、关闭和冷却由 Mark IV 调节。Mark IV具有内置诊断功能，用于故障排除。Speedtronic系统负责控制燃料，空气和排放，对涡轮机燃料进行排序，并监控所有涡轮机功能。

DS3800NFIB是风扇损耗电路卡。风扇损耗电路可防止涡轮机系统过热。风扇损耗卡打开常闭触点，在功率单元风扇故障时打开。如果风扇丢失，驱动器停止电路中的恒温器触点会导致驱动器停止运行。这可以保护动力装置组件免受在没有风扇提供的强制风冷的情况下在负载下运行可能造成的损坏。

GE DS3800NFIB 电路板 用于涡轮机控制 界首

Product description

The DS3800NFIB board was created for the Speedtronic Mark IV series for turbine control. The Mark IV is manufactured by General Electric. The Mark IV is a range of turbine automation controls for gas and steam turbines. The Mark series has been in use since the late 1960s. The technology used in the Mark IV was developed from the late 1940s. The Mark IV control system is designed to meet all requirements for turbine control.

The system controls liquids, gases or both types of fuel according to load control and speed requirements. The Mark IV also controls temperature and water and steam injection. Automatic starting, closing and cooling are regulated by Mark IV. The Mark IV has a built-in diagnostic function for troubleshooting. The Speedtronic system is responsible for controlling fuel, air, and emissions, sequencing turbine fuels, and monitoring all turbine functions.

DS3800NFIB is a fan loss circuit card. The fan loss circuit prevents the turbine system from overheating. The fan loss card opens the normally closed contact and opens when the power unit fan is faulty. If the fan is lost, the thermostat contacts in the driver stop circuit will cause the driver to stop operating. This protects the power unit components from the damage that can be caused by operating under load without the forced air cooling provided by the fan.
