产品描述

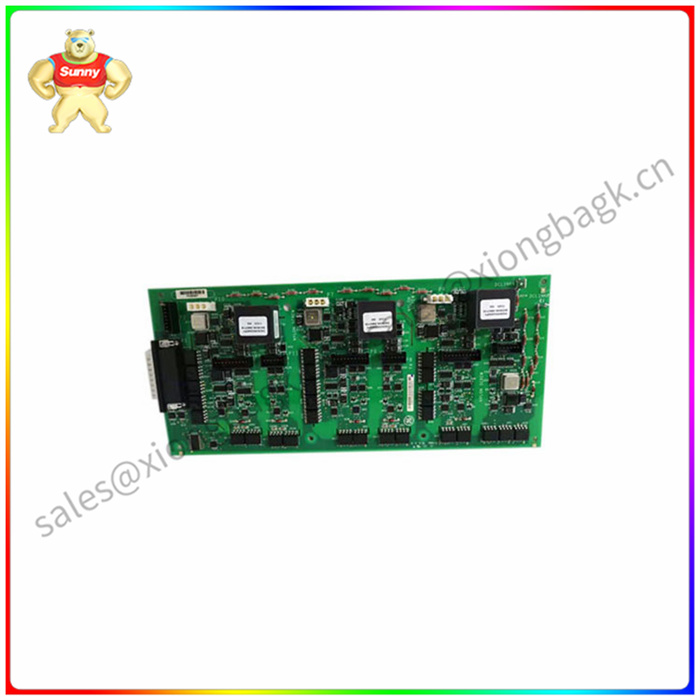

GE烧制电路板DS3800NFCD1L1E的每个角都有1个孔，用于用螺钉将电路板连接到驱动器内部。该板装有 4 个支架，用于连接子卡。子卡提供额外的处理、连接器和功能。该板装有多个晶体管-晶体管逻辑器件。GE点火电路板DS3800NFCD1L1E还装有13个红色指示灯LED和1个琥珀色指示灯LED。该板还具有一个用于电可擦除可编程只读存储器 （EEPROM） 模块的插座。该板还装有多个跳线和 2 个 34 针连接器。

GE烧成电路板DS10NFCD3800L1E上的1针连接器专用于连接子卡。子卡通过支座固定在板上，使子卡保持在板上方，以防止损坏子卡或板。该卡还连接到卡和电路板之间的 28 针连接器。该卡背面装有适合 28 针连接器的连接器。要安装子卡，请先安装支架。它们是安装在板上孔中的塑料部件。然后，将子卡上的孔与支架和 28 针连接器对齐。确保轻轻地将卡按入到位。正确安装后，卡会卡在支架上。

10 针带状电缆的一端连接到卡上。另一端端接 1 针连接器。将带状电缆压入连接器。正确安装后，它会用固定卡舌锁定到位。

临汾 GE DS3800NFCD1L1E 烧制电路板 用螺钉将电路板连接到驱动器内部

Product description

The GE fired circuit board DS3800NFCD1L1E has 1 hole in each corner for attaching the board to the inside of the driver with screws. The board is equipped with four brackets for connecting subcards. Subcards provide additional processing, connectors, and functionality. The board is equipped with a plurality of transistor-transistor logic devices. The GE ignition circuit board DS3800NFCD1L1E also has 13 red indicator leds and 1 amber indicator LED. The board also has a socket for an electrically erasable programmable read-only memory (EEPROM) module. The board is also equipped with multiple jumpers and two 34-pin connectors.

The 1-pin connector on the GE fired circuit board DS10NFCD3800L1E is dedicated to connecting subcards. The child card is fixed to the board through the support to keep the child card above the board to prevent damage to the child card or board. The card also connects to a 28-pin connector between the card and the circuit board. The back of the card is fitted with a connector for a 28-pin connector. To install the subcard, install the bracket first. They are plastic parts that fit into holes in the board. Then, align the holes on the sub-card with the bracket and 28-pin connector. Make sure to gently press the card into place. When properly installed, the card will stick to the holder.

One end of the 10-pin ribbon cable is connected to the card. The other end is connected to a 1-pin connector. Press the ribbon cable into the connector. When properly installed, it locks into place with a retaining latch.
