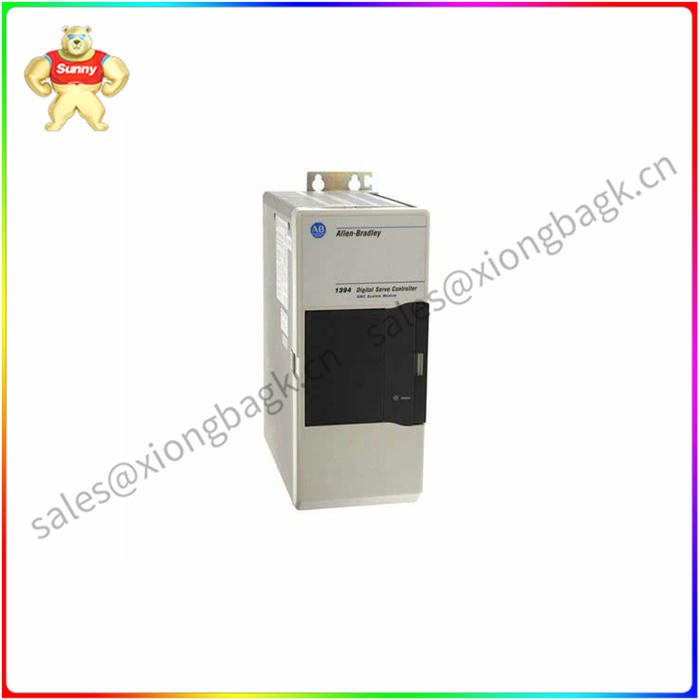

1394C-SJT05-C-RL A-B 罗克韦尔自动化 标准 GMC 系统模块

1394C-SJT05-C-RL A-B 罗克韦尔自动化 标准 GMC 系统模块

1394C-SJT05-D 是一款模块化、多轴运动控制驱动系统模块，额定功率为 5 kW。其独特的设计使其可用作集成的运动控制和驱动系统（GMC）。

该系统模块简称为SERCOS伺服驱动系统，或模拟伺服驱动系统。它为 360 伏和 480 伏三相输入电源提供直接线路连接（无变压器）。系统模块zui多可配置四轴模块，每个模块与电机接口。因此，用户可以获得大量的面板空间和互连的节省。

1394c-SJT05-D 系统模块还提供带光纤数字网络接口的数字伺服驱动系统。该模块可用作速度或扭矩控制系统，并可通过艾伦·布拉德利 SERCOS 接口模块快速调试。此系统模块提供对自动调整和启动提示的访问。它还提供 SCANport 接口作为其标准功能。

该系统提供数字故障和诊断实用程序作为标准功能;它结束了电流监视器，热过载检测和反馈信号监视器。它还为系统和轴模块提供 LED 状态，并为轴链路、运动板和 RIO 提供状态 LED，仅用于 GMC 系统。

该模块配备了高度集成的表面贴装电路和DSP辅助处理。它还改进了 SERCOS 和轴模块上的接地端接。该系统具有数字调整的速度和电流环路补偿功能，可适应各种系统惯性。

1394C-SJT05-C-RL A-B 罗克韦尔自动化 标准 GMC 系统模块

The 1394C-SJT05-D is a modular, multi-axis motion control drive system module with a power rating of 5 kW. Its unique design makes it usable as an integrated motion control and drive system (GMC).

The system module is referred to as SERCOS servo drive system, or analog servo drive system. It provides direct line connections (transformer-free) for 360 and 480 volt three-phase input power supplies. The system module can be configured with up to four axis modules, each module interfaces with the motor. As a result, users can get a lot of panel space and interconnect savings.

The 1394c-SJT05-D system module also provides a digital servo drive system with optical fiber digital network interface. The module can be used as a speed or torque control system and can be quickly debugged via the Alan Bradley SERCOS interface module. This system module provides access to automatic tuning and startup prompts. It also provides the SCANport interface as its standard feature.

The system provides digital fault and diagnostic utilities as standard features; It ends with current monitor, thermal overload detection and feedback signal monitor. It also provides LED status for the system and shaft modules, and status leds for shaft links, motion boards, and RIOs for GMC systems only.

The module is equipped with a highly integrated surface mount circuit and DSP assisted processing. It also improves the ground terminations on the SERCOS and shaft modules. The system has a digitally adjusted speed and current loop compensation function to adapt to various system inertias.

1394C-SJT05-C-RL A-B 罗克韦尔自动化 标准 GMC 系统模块
