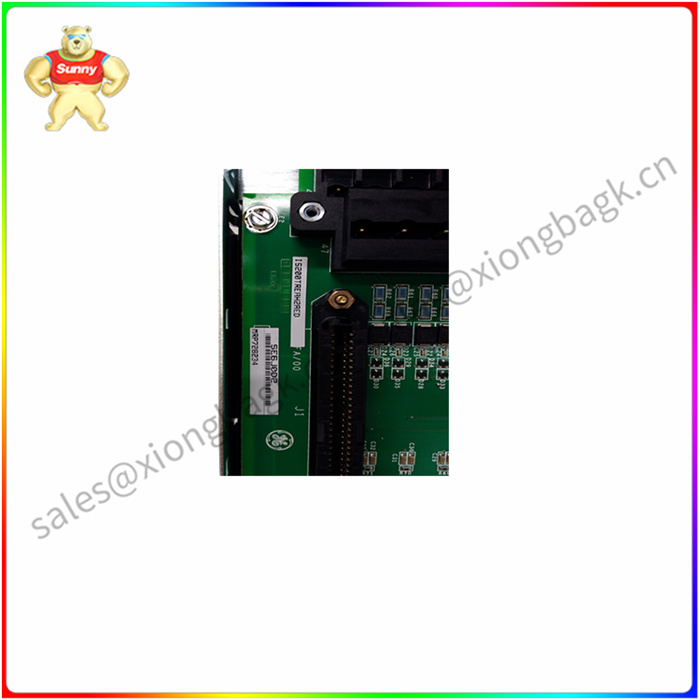

IS200EACFG3B 是励磁机交流反馈板

IS200EACFG3B 是励磁机交流反馈板

产品描述



IS200EACFG3B是励磁机交流反馈板，是电压测量的G3版本，测量值为1300 Vrms，其他版本的电压测量值为1400 Vrms。EACF和EBKP的控制背板电缆长度可达90米。



励磁机交流反馈板IS200EACFG3B是IS200EACF系列型号的一部分。该模型可以支持高达1400 VRMS的电压反馈测量。IS200EACF系列的IS200EACFG3B模块看起来与IS200EAFG2A的模块相同，具有四个测量输入相电压的端子。



IS200EACFG3B模块是处理桥接电压和电流反馈的主要控制器。该模块还有一个接线板，用于控制磁通/空气线圈的电压。由于该模块是IS200EACF模块中的zui后一个，它通常会取代IS200EACFG3A型号，因此该模块更适合用于更高的额定电压，并将取代IS200EA CFG3A模块。该模块仅为基础级模块，其装配级别为200。



IS200EACFG3B板是高压接口（HVI）的两个组成部分之一。作为HVI一部分的另一块板是控制直流电压的励磁机直流反馈板。EACF和EDCF板相互协作以控制两种不同的反馈电压。

IS200EACFG3B 是励磁机交流反馈板

Product description



The IS200EACFG3B is an exciter AC feedback board and is a G3 version of voltage measurement with a measurement value of 1300 Vrms and other versions with a voltage measurement value of 1400 Vrms. EACF and EBKP control backplane cables are up to 90 meters long.



The exciter AC feedback board IS200EACFG3B is part of the IS200EACF series of models. The model can support voltage feedback measurements up to 1400 VRMS. The IS200EACFG3B module of the IS200EACF series looks identical to the module of the IS200EAFG2A, with four terminals that measure the input phase voltage.



The IS200EACFG3B module is the main controller for handling the bridge voltage and current feedback. The module also has a patch board to control the voltage of the flux/air coil. Since this module is the last of the IS200EACF modules, it usually replaces the IS200EACFG3A model, so this module is more suitable for higher voltage ratings and will replace the IS200EACFG3A module. The module is only a base-level module with an assembly level of 200.



The IS200EACFG3B board is one of two components of the high voltage interface (HVI). The other board that is part of the HVI is the exciter DC feedback board that controls the DC voltage. The EACF and EDCF boards work together to control two different feedback voltages.

IS200EACFG3B 是励磁机交流反馈板
