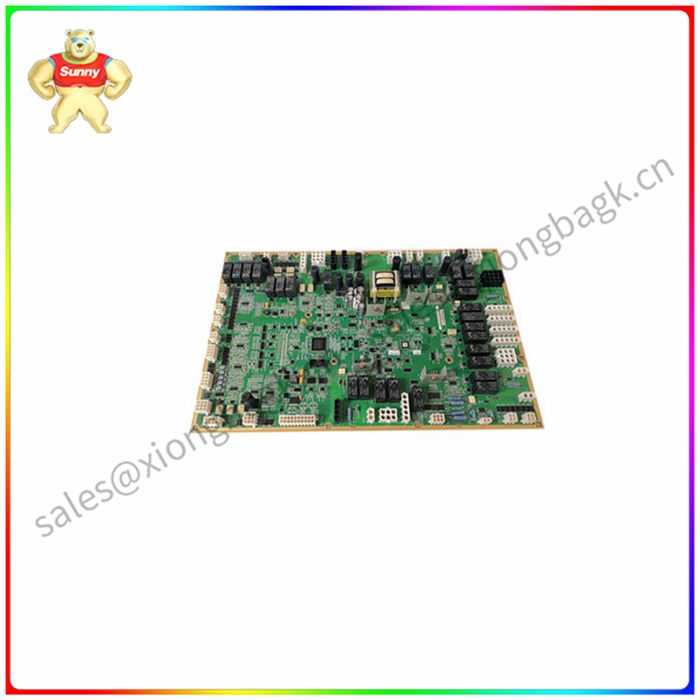

IS200ECTBG2A 励磁机接触端子板

IS200ECTBG2A 励磁机接触端子板

产品描述



用于EX2100励磁控制系统的GE IS200ECTBG2A励磁机触点端子板。ECTBG2与G1相反，专门用于单工模式。ECTB板用于支持励磁系统的触点输入/输出。



GE Energy IS200ECTBG2A励磁机接触端子板是由GE Industrial Solutions制造的EX2100励磁控制系统的一部分。ECTBG2A（G2版本）专门用于单工模式，而G1版本仅用于冗余模式。与单工模式下的IS200ECTBG2A相关的图纸可以在我们上面页面的手册选项卡下找到。



ECTBG2A包括（6）辅助触点输入、（2）跳闸触点输出和（4）C型继电器触点输出。这允许板在EX2100系统中发挥作用，因为它与触点输出和触点输入有关。ECTB板配有隔离的+70V直流电，用于EPSM模块的触点润湿。就监测触点输入的IS200ECTBG2A型号而言，它监测两个。其中一个接触输入是52G，而另一个是86G。

IS200ECTBG2A 励磁机接触端子板

Product description



GE IS200ECTBG2A exciter contact terminal board for EX2100 excitation control system. ECTBG2, in contrast to G1, is designed specifically for simplex mode. The ECTB board is used to support the contact input/output of the excitation system.



The GE Energy IS200ECTBG2A exciter contact terminal board is part of the EX2100 excitation control system manufactured by GE Industrial Solutions. ECTBG2A (G2 version) is specifically for simplex mode, while G1 version is only for redundancy mode. Drawings related to IS200ECTBG2A in simplex mode can be found under the Manual TAB on our above page.



ECTBG2A includes (6) auxiliary contact input, (2) trip contact output, and (4) Type C relay contact output. This allows the board to play a role in the EX2100 system as it relates to contact output and contact input. The ECTB board is equipped with isolated +70V DC for contact wetting of the EPSM module. As far as the IS200ECTBG2A model for monitoring contact input is concerned, it monitors two. One of the contact inputs is 52G, while the other is 86G.

IS200ECTBG2A 励磁机接触端子板
