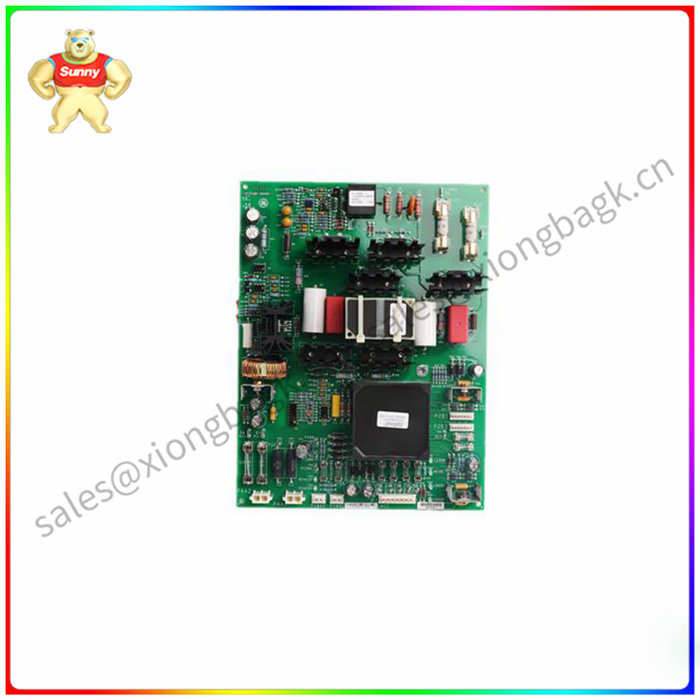

IS200EGPAG1B 励磁机门脉冲放大器板 应用于综合保护模块

IS200EGPAG1B 励磁机门脉冲放大器板 应用于综合保护模块

产品描述



GE EX2100 IS200EGPAG1B励磁机门脉冲放大器板用于将控制连接到控制系统中的功率桥。它负责连接电流传导反馈、温度监测和桥接气流。



门脉冲放大器板编号IS200EGPAG1B位于电源转换柜中，可以连接到电源转换模块。该模块是在桥架和保护板/模块下标记的板之一，虽然该板可以单独运行，但通常需要从其中一个EPDM模块中获取电源。



IS200EGPAG1B板接收来自安装在SCR散热器上的两个热开关的反馈。这些开关在报警级别和跳闸级别触发并断开，并直接连接到IS200EGPAG1B。开关在触发前必须达到的温度为190°F的跳闸水平和170°F的报警水平。如果只有一个开关打开，则发生了关于电桥的过热警报，如果两个开关都打开，则表明发生了跳闸和故障，则开关可以单独打开或一起打开。



IS200EGPAG1B板有五个跳线，这些跳线允许用户选择所需的特定应用配置，并在安装前轻松调整跳线配置。

IS200EGPAG1B 励磁机门脉冲放大器板 应用于综合保护模块

Product description



The GE EX2100 IS200EGPAG1B exciter gate pulse amplifier board is used to connect the control to the power bridge in the control system. It is responsible for connecting current conduction feedback, temperature monitoring and bridging airflow.



The gate pulse amplifier board number IS200EGPAG1B is located in the power conversion cabinet and can be connected to the power conversion module. This module is one of the boards marked under the bridge and protection board/module, and although the board can be operated separately, it usually requires power from one of the EPDM modules.



The IS200EGPAG1B board receives feedback from two thermal switches mounted on the SCR heat sink. These switches trigger and disconnect at alarm and trip levels and are directly connected to IS200EGPAG1B. The temperature the switch must reach before triggering is a trip level of 190°F and an alarm level of 170°F. If only one switch is open, an overheating alarm about the bridge has occurred, if both switches are open, it indicates that a trip and a fault has occurred, and the switches can be opened separately or together.



The IS200EGPAG1B board has five jumpers that allow the user to select the desired application-specific configuration and easily adjust the jumper configuration before installation.
