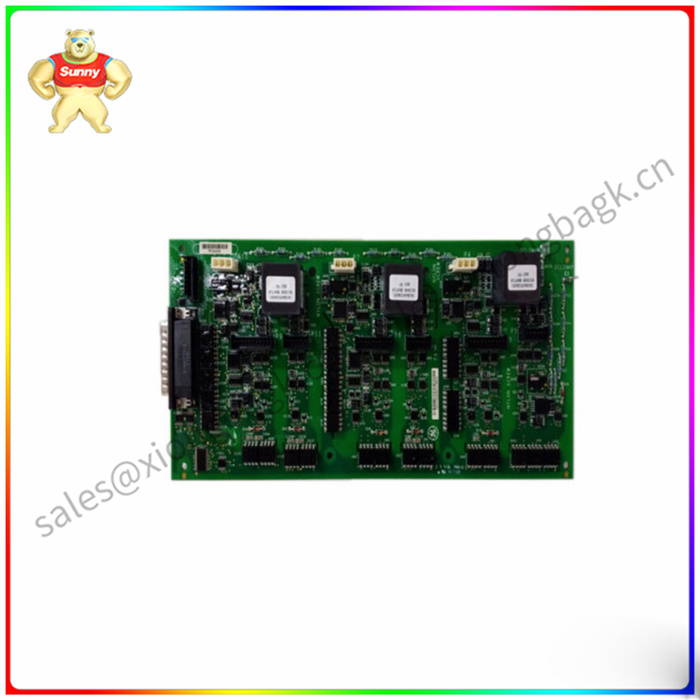

IS200EHPAG1D 高压脉冲放大器板

IS200EHPAG1D 高压脉冲放大器板

产品描述

IS200EHPAG1D型号是通用电气制造的高压脉冲放大器板，作为EX2100励磁控制系列的一部分。该EHPA板表面有几个连接器;它有三个母板连接器，一个可选的子板连接和各种插头连接器。板上的插头连接器为四插头、六插头或双插头。这些连接器位于主板的右上角。

在IS200EHPAG1D上总共有八个变压器，其中六个在电路板的一个边缘成一条线。该板还有电解电容器，有十三个，它们是高压的，尺寸各异，由不同的材料组成。IS200EHPAG1D 模型是 G1 版本的zui后一个 IS200EHPA 模块，此模型通常会取代以前的IS200EHPA模块，因为它将具有早期模块所没有的增强功能。

电路板前边缘有 LED，如果由于任何原因这些 LED 熄灭，更换起来相对简单，如果您的IS200EHPAG1D板上出现其他问题，您可以通过以下方式与我们联系以获取维修报价。

IS200EHPAG1D 高压脉冲放大器板


Product description

The IS200EHPAG1D model is a high voltage pulse amplifier board manufactured by General Electric as part of the EX2100 excitation control family. The EHPA plate surface has several connectors; It has three motherboard connectors, an optional subboard connection and various plug connectors. The plug connectors on the board are four, six or two plugs. These connectors are located in the upper right corner of the motherboard.

There are a total of eight transformers on the IS200EHPAG1D, six of which form a line on one edge of the board. The board also has electrolytic capacitors, of which there are thirteen, which are high voltage, of various sizes, and composed of different materials. The IS200EHPAG1D model is the last IS200EHPA module in the G1 version, and this model will often replace the previous IS200EHPA module, as it will have enhancements that were not available in earlier modules.

There are leds on the front edge of the board, if for any reason these leds go out, it is relatively simple to replace, if there are other problems on your IS200EHPAG1D board, you can contact us in the following ways to get a repair quote.
