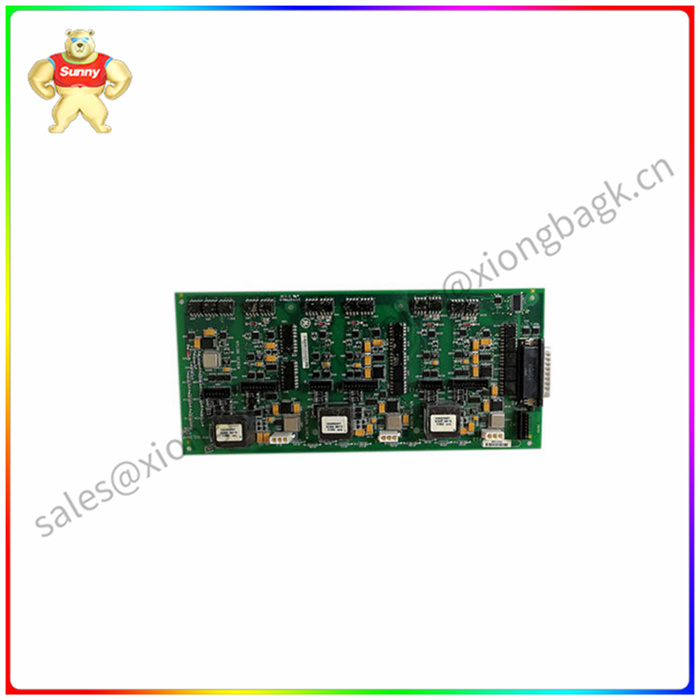

IS200EMIOH1A 励磁机多输入/输出

IS200EMIOH1A 励磁机多输入/输出

产品描述

励磁器主输入/输出IS200EMIOH1A板的主要功能是管理来自 ECTB、EACF、EXTB 和 EPCT 端子板的所有输入/输出。该板是双高反之亦然的模块欧卡，也是单槽的。IS200EMIOH1A的另一个主要功能是将栅极脉冲信号从背板发送到ESEL板，在ESEL板接收到信号后，信号将被发送到位于电源转换柜中的EGPA板。

当控制其他端子板的输入和输出时，IS200EMIOH1A将控制触点输入、先导跳闸继电器驱动器、PT 和 CT 信号以及输出继电器驱动器。 当EMIO板连接到EXTB板时，EMIO板将启动去激励，这意味着EMIO板还控制EXTB连接的EDEX板。

IS200EMIOH1A 励磁机多输入/输出

Product description

Exciter Main Input/Output The main function of the IS200EMIOH1A board is to manage all inputs/outputs from the ECTB, EACF, EXTB, and EPCT terminal boards. The board is double height and vice versa module Oka, also single slot. The other main function of the IS200EMIOH1A is to send the gate pulse signal from the backplane to the ESEL board, after the ESEL board receives the signal, the signal will be sent to the EGPA board located in the power conversion cabinet.

When controlling the input and output of other terminal boards, the IS200EMIOH1A controls the contact input, pilot trip relay drivers, PT and CT signals, and output relay drivers. When an EMIO board is connected to an EXTB board, the EMIO board activates deexcitation, which means that the EMIO board also controls the EDEX board connected to the EXTB board.

IS200EMIOH1A 励磁机多输入/输出
