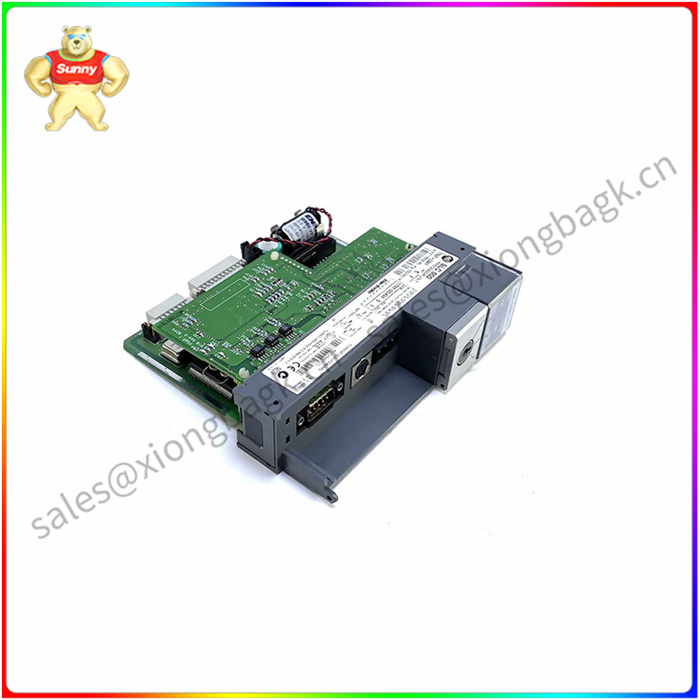

Allen-Bradley 1747-L541 是一款 SLC 5/04 处理器

Allen-Bradley 1747-L541 是一款 SLC 5/04 处理器

Allen-Bradley 1747-L541 是一款 SLC 5/04 处理器，是 SLC 500 系列的一部分，该系列还包括 1747-L541、L542 和 L543 控制器。它是一种高性能处理器，具有更快的通信速度和更短的程序执行时间。SLC 5/04 配备 16K、32K 或 64K 字内存，zui多可控制 4096 个输入和输出点。对于通信，1747-L541 具有内置的 DH+ 通道，支持扩展的消息传递功能和高速通信。它还具有一个RS-232通道，用于支持DF1无线电调制解调器，DH-485，ASCII和Modbus RTU通信。对于编程，它包括高 级数学说明和各种附加说明。它还支持远程 I/O、DeviceNet 直通和间接寻址。

1747-L541 每个关键字的典型程序扫描时间为 0.9 毫秒，典型 I/O 扫描时间为 0.225 毫秒。它需要 1 伏直流时 5 安培的背板电流负载和 200 伏直流时 24 mA 的背板电流负载。它具有 1 毫秒可选定时中断 （STI） 和 0.5 毫秒离散输入中断 （DII）。对于程序和数据表存储，它使用基于 1747-M13 闪存的内存设备，具有 64 KB 内存。SLC 5/04 在前面板上包括一个 3 位钥匙开关，用于选择运行、远程或编程模式。1747-L541 SLC 504 具有运行、飞行、击球、强制、DH+ 和 RS-232 LED 状态指示灯，用于故障排除和诊断。SLC 500 系列处理器具有简单、经济高效的设计，在 HVAC 控制、SCADA 和物料搬运等应用中拥有良好的安装历史。

Allen-Bradley 1747-L541 是一款 SLC 5/04 控制器，具有集成的 16 KB 用户存储器，设计用于处理多达 4096 个输入和输出。该控制器属于模块化SLC 500可编程逻辑控制器（PLC）。

1747-L541 非常适合在中型应用中使用，因为该控制器能够通过使用 CPU 机架上的通信适配器和 IO 机架上的通信扫描仪来实现分布式 IO 应用。RS232 通信端口可配置为 DF1 和 DH485 点对点拓扑，而 DH+ 通信支持远距离和多点拓扑。

或者，RS232 通信端口也可以与 1761-NET-AIC 一起使用，以允许串行端口连接到多点网络。通信端口的默认设置是无握手、19.2 Kbaud、CRC 错误检查、重复数据包、RS232 端口检测和无奇偶校验以及 57.6 Kbaud，数据高速公路增强型 （DH+） 的节点地址 = 1。

1747-L541 控制器需要一个 SLC 500 机架来安装和连接到电子背板。还需要系统电源通过电子背板为处理器的内部电路供电。

该控制器符合美国和加拿大安全标准 UL 认证，符合 CE 标准并带有 C-Tick 标志。

Allen-Bradley 1747-L541 是一款 SLC 5/04 处理器

The Allen-Bradley 1747-L541 is an SLC 5/04 processor that is part of the SLC 500 family, which also includes the 1747-L541, L542, and L543 controllers. It is a high-performance processor with faster communication speeds and shorter program execution times. The SLC 5/04 is equipped with 16K, 32K or 64K word memory and can control up to 4096 input and output points. For communication, the 1747-L541 has a built-in DH+ channel that supports extended messaging capabilities and high-speed communication. It also has an RS-232 channel for supporting DF1 radio modem, DH-485, ASCII and Modbus RTU communications. For programming, it includes advanced mathematical instructions and various additional instructions. It also supports remote I/O, DeviceNet pass-through, and indirect addressing.

1747-L541 The typical program scan time for each keyword is 0.9 ms and the typical I/O scan time is 0.225 ms. It requires a backplane current load of 5 amps at 1 V DC and 24 mA at 200 V DC. It has a 1 ms selectable time interrupt (STI) and 0.5 ms discrete input interrupt (DII). For program and data table storage, it uses a memory device based on 1747-M13 flash memory, with 64 KB of memory. The SLC 5/04 includes a 3-digit key switch on the front panel for selecting run, remote, or programming modes. The 1747-L541 SLC 504 features run, fly, hit, force, DH+, and RS-232 LED status indicators for troubleshooting and diagnosis. The SLC 500 series processors feature a simple, cost-effective design with a proven installation history in applications such as HVAC control, SCADA, and material handling.

The Allen-Bradley 1747-L541 is an SLC 5/04 controller with an integrated 16 KB user memory designed to handle up to 4096 inputs and outputs. The controller is a modular SLC 500 programmable logic controller (PLC).

The 1747-L541 is well suited for use in mid-sized applications, as the controller is able to enable distributed IO applications by using a communication adapter on the CPU rack and a communication scanner on the IO rack. The RS232 communication port can be configured for DF1 and DH485 point-to-point topologies, while DH+ communication supports long-distance and multipoint topologies.

Alternatively, the RS232 communication port can also be used with the 1761-NET-AIC to allow a serial port to connect to a multipoint network. The default Settings for communication ports are No handshake, 19.2 Kbaud, CRC error check, Duplicate packets, RS232 port detection and no parity, and 57.6 Kbaud, Data Superhighway Enhanced (DH+) node address = 1.

The 1747-L541 controller requires an SLC 500 rack to mount and connect to the electronic backplane. System power is also required to power the processor's internal circuitry through an electronic backplane.

The controller meets the UL certification of the US and Canadian safety standards, meets the CE standard and carries the C-Tick mark.
