1769-OF4CIA AB 紧凑型 I/O 模块

1769-OF4CIA  AB 紧凑型 I/O 模块

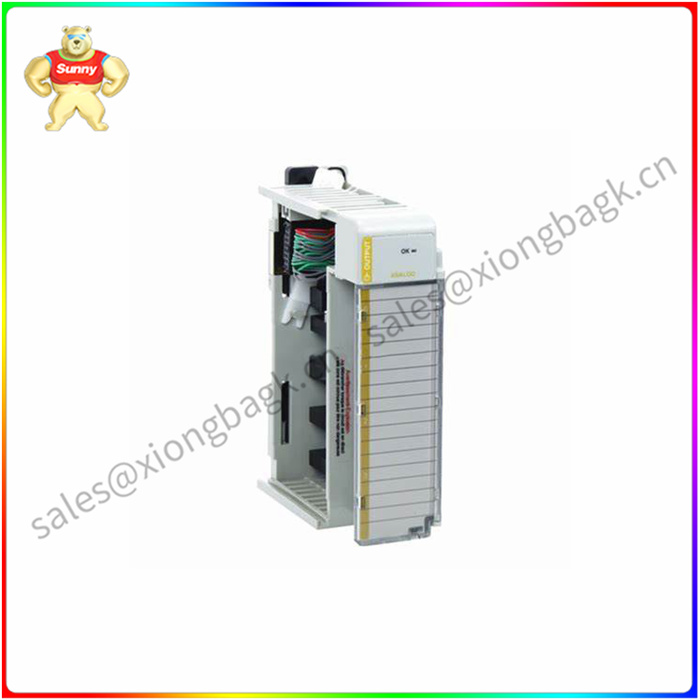

部件号 1769-OF4CI 的 Allen-Bradley 紧凑型 I/O 模块是带有嵌入式四 （4） 个独立隔离通道的模拟输出模块。该模块具有 0-20mA 和 4-20 mA 的输出电流信号，全模拟电流范围分别为 0-21 mA 和 3.2-21 mA。该模块属于 1769 Compact I/O 系统，设计与 MicroLogix 1500 和 CompactLogix 控制器兼容。此模块也可以使用部件号 1769-ADN 的 DeviceNet 通信适配器或部件号 1769-AENTR 的以太网通信适配器安装在远程 I/O 机箱中。

模拟输出模块主要用于驱动zui终控制元件（FCE）或执行器以实现多个控制点。可用的数据格式包括原始/比例数据、工程单位、PID 缩放和全范围百分比。可配置通道参数包括输出范围选择、模块抑制、模块描述和插槽分配。该模块为每个安装实例生成一个zui的数据表，其中包含通道地址、模块模式位、模块状态和其他运行时参数。

该模块是一个低维护模块。它具有自动校准功能，每次模块重新通电时都会由模块执行。此外，每个电源周期都会执行自检。模块进入自检状态后，模块将无响应。它将自动进入活动操作，新值主动与高箝位和低箝位设置进行比较，以防止输出超过定义的限制。

1769-OF4CI 是一款四 （4） 通道模拟电流隔离输出模块，属于 Allen-Bradley 制造的 CompactLogix 系列。1769-OF4CI 具有 16 位分辨率，并支持百通 8761 屏蔽紧凑型模拟模块电缆。1769-OF4CI 具有 330 至 0mA 的每位 20 μ V，总线电流为 5 V DC 165 mA。该装置还具有 2.0 瓦的散热。它具有 110 毫秒的转换速率和大于 2.9 毫秒的每电流比的有限电压。该模块具有 0 至 500 欧姆的阻性负载，额定输出电感负载为 0.1 mH。1769-OF4CI 带有静电放电，可能会损坏集成电路或半导体。因此，在触摸本机时，请触摸接地物体以释放静电势。避免触摸总线连接器或连接器引脚，并使用防静电工作站（如果可用）。不使用时，1769-OF4CI 应保存在静态屏蔽盒中。
1769-OF4CI 的精度为 +/-0.35%，相对于温度的精度漂移为每摄氏度 +/-0.0058% FS。1769-OF4CI 具有 +/-0.05% 非线性和 +/-0.005% 重复性。它没有指定的现场校准，模块误差边界约为 +/-0.55%，额定输出阻抗小于 1 MOhm。该装置还具有开路和短路保护功能，并具有输出过压保护功能。它能够在约 21 mA 的zui大短路电流下保持其全部运行能力。1769-OF4CI 紧凑型电流输出模块的尺寸为 118 x 35 x 87 毫米（4.65 x 1.38 x 3.43 英寸），重量为 270 克（0.60 磅）。

1769-OF4CIA  AB 紧凑型 I/O 模块

The Allen-Bradley compact I/O module with Part number 1769-OF4CI is an analog output module with embedded four (4) independently isolated channels. The module has 0-20mA and 4-20 mA output current signals with full analog current ranges of 0-21 mA and 3.2-21 mA, respectively. The module belongs to the 1769 Compact I/O system and is designed to be compatible with MicroLogix 1500 and CompactLogix controllers. This module can also be installed in a remote I/O chassis using a DeviceNet communication adapter with part number 1769-ADN or an Ethernet communication adapter with part number 1769-AENTR.

The analog output module is primarily used to drive the final control element (FCE) or actuator to achieve multiple control points. Available data formats include raw/proportional data, engineering units, PID scaling, and full range percentages. Configurable channel parameters include output range selection, module suppression, module description, and slot assignment. This module generates a unique data table for each installation instance that contains the channel address, module mode bits, module status, and other runtime parameters.

This module is a low maintenance module. It has an automatic calibration function, which is performed by the module every time the module is powered back on. In addition, a self-test is performed for each power cycle. After the module enters the self-check state, the module does not respond. It will automatically enter the active operation, and the new value is actively compared to the high and low clamp Settings to prevent the output from exceeding the defined limit.

The 1769-OF4CI is a four (4) channel analog current isolation output module in the CompactLogix family manufactured by Allen-Bradley. The 1769-OF4CI features 16-bit resolution and supports the Belton 8761 shielded compact analog module cable. The 1769-OF4CI has 20 µV per piece from 330 to 0mA and a bus current of 5 V DC 165 mA. The unit also has 2.0 watts of heat dissipation. It has a conversion rate of 110 ms and a finite voltage of greater than 2.9 ms per current ratio. The module has a resistive load of 0 to 500 ohms and a rated output inductance load of 0.1 mH. The 1769-OF4CI carries electrostatic discharge that may damage integrated circuits or semiconductors. Therefore, when touching the device, touch the grounded object to release the electrostatic potential. Avoid touching bus connectors or connector pins, and use an anti-static workstation (if available). When not in use, 1769-OF4CI should be stored in a static shield box.
1769-OF4CI has an accuracy of +/-0.35% and an accuracy drift relative to temperature of +/-0.0058% FS per degree Celsius. 1769-OF4CI has +/-0.05% nonlinearity and +/-0.005% repeatability. It has no specified field calibration, a module error boundary of about +/-0.55%, and a rated output impedance of less than 1 MOhm. The device also has the function of open circuit and short circuit protection, and has the function of output overvoltage protection. It is able to maintain its full operating capacity at a maximum short-circuit current of about 21 mA. The 1769-OF4CI compact current output module measures 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 inches) and weighs 270 g (0.60 lb).

1769-OF4CIA  AB 紧凑型 I/O 模块
