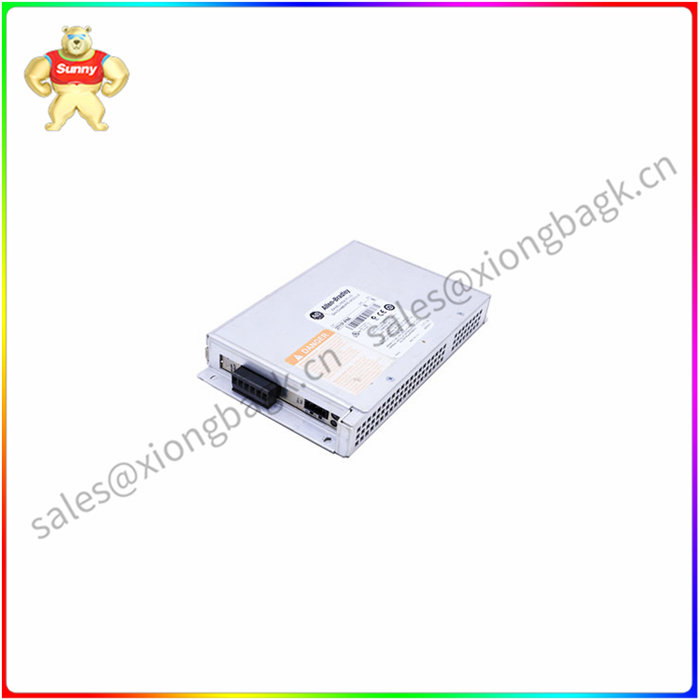

Allen-Bradley 2711P-RN16 是一款可选的通信适配器。该适配器安装在现有逻辑模块的顶部，支持数据高速增强版 （DH+）、远程 I/O （RIO） 和 DH-485 网络连接。它与 PanelView Plus / PanelView Plus CE 和 PanelView Plus 6 图形操作终端兼容。具体来说，它只能安装在屏幕尺寸为 7 英寸至 15 英寸或 700 至 1500 范围内的操作终端上。与 PanelView Plus 6 一起使用时，仅支持数据高速增强版 （DH+） 和 DH485，因为 PanelView Plus 6 不支持本机远程 I/O 通信，即使使用 2711P-RN6 通信模块也是如此。此外，2711P-RN6 与 PanelView Plus 7 图形操作终端不兼容。

2711P-RN6 配有一 （1） 个 DH485 端口和一 （1） 个 DH+ / RIO 通信端口。两个端口都是凤凰连接器，DH485 有 6 个引脚，DH+ / RIO 有 3 个连接引脚。此外，此通信适配器具有两 （2） 个 LED 状态指示灯，指示通道在关闭时不在线，当绿色闪烁时设备只是网络上的节点，设备在线并在稳定绿色时接收令牌，DH-485：重复节点/DH+：闪烁红色时奇偶校验错误，稳定红色时自检失败。

DH+ 和 RIO 网络支持多节点通信，可以覆盖长距离。这些通信协议支持菊花链拓扑和快速数据传输速率。它需要使用 1770-CD 或 Belden Blue Hose 电缆。对于DH-485通信，它还支持菊花链拓扑，需要使用百通 #3106A 或#9842。

2711P-RN16 是一款可选的通信适配器

The Allen-Bradley 2711P-RN16 is an optional communication adapter. The adapter is installed on top of the existing logic module and supports Data High Speed Enhanced (DH+), remote I/O (RIO) and DH-485 network connectivity. It is compatible with PanelView Plus/PanelView Plus CE and PanelView Plus 6 graphics operating terminals. Specifically, it can only be installed on operating terminals with screen sizes ranging from 7 inches to 15 inches or 700 to 1500 inches. When used with the PanelView Plus 6, only Data High Speed Enhanced (DH+) and DH485 are supported, as the PanelView Plus 6 does not support native remote I/O communication, even with the 2711P-RN6 communication module. In addition, the 2711P-RN6 is not compatible with the PanelView Plus 7 graphics operator terminal.

The 2711P-RN6 is equipped with one (1) DH485 port and one (1) DH+ / RIO communication port. Both ports are Phoenix connectors, with the DH485 having six pins and the DH+ / RIO having three connecting pins. In addition, this communication adapter has two (2) LED status indicators indicating that the channel is not online when off, the device is only a node on the network when green is blinking, the device is online and receives the token when steady green, DH-485: Duplicate node /DH+ : Parity error when blinking red, self-check failure when steady red.

DH+ and RIO networks support multi-node communication and can cover long distances. These communication protocols support Daisy chain topology and fast data transfer rates. It requires the use of 1770-CD or Belden Blue Hose cable. For DH-485 communication, it also supports Daisy chain topology, which requires the use of Belton #3106A or #9842.
