2711P-T7C21D8S-B 是一款操作员界面设备

2711P-T7C21D8S-B 是一款操作员界面设备

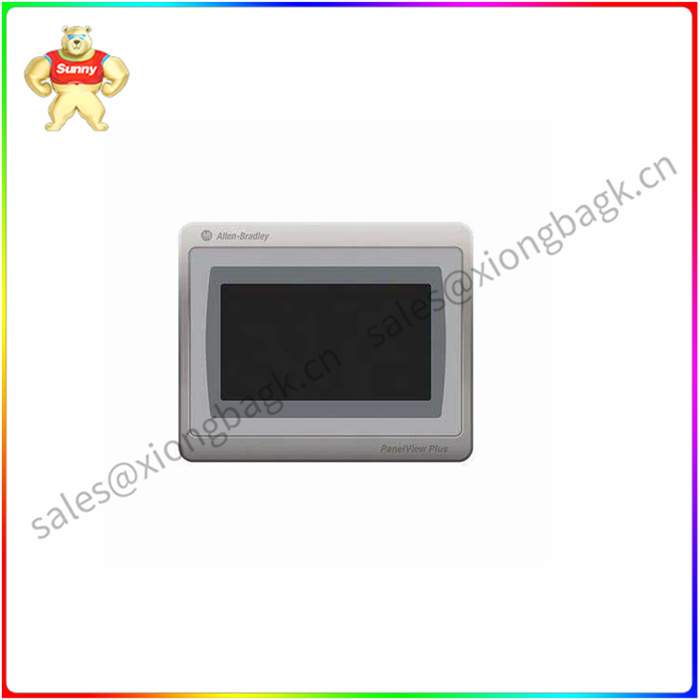

2711P-T7C21D8S-B PanelView Plus 7 标准终端采用用户定制品牌 Allen-Bradley 是一款操作员界面设备，用于控制和监控连接到 ControlLogix 5570 和连接的 EtherNet/IP 网络上的 CompactLogix 5370 控制器的设备。该设备提供简单的界面，并通过6.5英寸彩色TFT，LCD显示屏进行图形显示，带有模拟电阻式触摸屏，驱动额定值约为一百万次。

它还提供 132mm x 99mm 的可视区域，具有 640 x 480 VGA 18 位彩色图形原生显示分辨率和 4：3 的宽高比。它的显示亮度为300尼特，并配有不可更换的背光，待机时间约为50,000小时。它配备了电池备份的内部实时时钟，每月时钟精度为 ±2 分钟，zui短电池寿命为 4 年。它配备了 512 MB RAM 和 512 MB 存储系统内存，以及 80 MB 用于应用程序存储的用户内存，并支持用于内存扩展的安全数字卡插槽。它带有 1 个 USB 2.0 主机端口，支持闪存驱动器和其他外围设备，还带有一个用于连接到主机的 1.0 设备端口。

它的电气额定值为 18-30V DC（24V DC 标称），在 50.2A 和 1V DC 时的总功耗为 24W，采用隔离式直流电源。其工作温度范围为 0-55oC （32-131oF）在5-95%的非冷凝湿度范围内，zui大散热量为51 BTU。降额后zui大安装高度为2000m，完全承受15G的操作冲击和2-57Hz时的500G振动。它的重量约为 0.85 公斤（1.86 磅），尺寸约为 170 毫米 x 212 毫米 x 56.5 毫米（6.69 英寸 x 8.35 英寸 x 2.22 英寸），并通过了 CE、c-UL-US、UL、C-TICK 和 KCC 认证。

2711P-T7C21D8S-B 是一款操作员界面设备

The 2711P-T7C21D8S-B PanelView Plus 7 standard terminal is a custom brand Allen-Bradley operator interface device, Used to control and monitor devices connected to the ControlLogix 5570 and CompactLogix 5370 controllers on connected EtherNet/IP networks. The device offers a simple interface and graphical display via a 6.5-inch color TFT, LCD display with an analog resistive touch screen with a drive rating of approximately one million times.

It also offers a viewing area of 132mm x 99mm, with a 640 x 480 VGA 18-bit color graphics native display resolution and a 4:3 aspect ratio. It has a display brightness of 300 nits with a non-replaceable backlight and a standby time of approximately 50,000 hours. It comes with an internal real-time clock with battery backup, clock accuracy of ±2 minutes per month, and minimum battery life of 4 years. It comes with 512 MB of RAM and 512 MB of storage system memory, as well as 80 MB of user memory for application storage, and supports a secure digital card slot for memory expansion. It comes with a USB 2.0 host port that supports flash drives and other peripherals, as well as a 1.0 device port for connecting to the host.

It has an electrical rating of 18-30V DC (24V DC nominal), a total power consumption of 24W at 50.2A and 1V DC, and uses an isolated DC supply. Its operating temperature range is 0-55oC (32-131oF) in the non-condensing humidity range of 5-95%, with a maximum heat dissipation of 51 BTU. After derating, the maximum installation height is 2000m, fully withstand 15G operating shock and 500G vibration at 2-57Hz. It weighs approximately 0.85 kg (1.86 lb), measures approximately 170 mm x 212 mm x 56.5 mm (6.69 in x 8.35 in x 2.22 in), and is CE, c-UL-US, UL, C-TICK, and KCC certified.

2711P-T7C21D8S-B 是一款操作员界面设备
