DS3800NBID 是桥接接口电路板

DS3800NBID 是桥接接口电路板

产品描述

DS3800NBID是桥接接口电路板。它是作为Speedtronic Mark IV涡轮控制系列的一部分生产的。该DS3800NB1D由通用电气为该系列制造。

DS3800NBID共有十八个集成电路。这些集成电路覆盖了电路板上的大量空间，并标有字母U。许多蓝色、银色和红色等颜色的电容器位于DS3800NBID周围。这些电容器标有初始C。许多电阻器位于DS3800NBID上，具有不同颜色的带。这些电阻可以用字母R来识别。每个电阻器上的带子象征着器件的电阻能力。

DS3800NBID在卡的上部有一个橙色LED，也称为发光二极管。该二极管标有首字母CR，称为CR5。电路板周围的所有其他二极管都是非发光的。这些二极管也标有首字母CR。在电路板上边缘的一行中，有二十二个标有首字母TP的测试点。该DS3800NBID具有几个电阻网络，可通过首字母RN识别，如RN1和RN2。靠近DS3800NBID底部的特色是连接器端口。使用此端口，可以将额外的板或额外的部件连接到卡上。

DS3800NBID 是桥接接口电路板

Product description

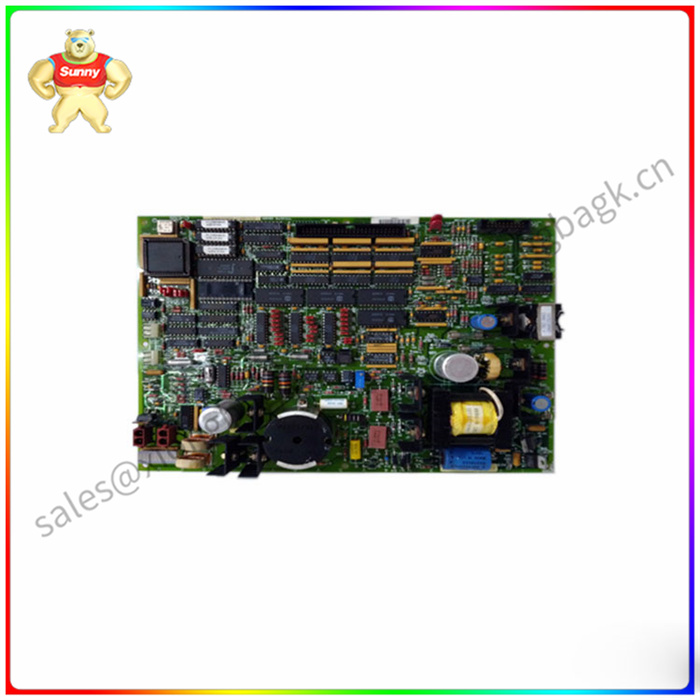

The DS3800NBID is a bridge interface circuit board. It is produced as part of the Speedtronic Mark IV turbine control series. The DS3800NB1D was manufactured by General Electric for the series.

DS3800NBID has a total of 18 integrated circuits. These integrated circuits cover a large amount of space on the circuit board and are labeled with the letter U. Many blue, silver and red capacitors are located around DS3800NBID. These capacitors are marked with an initial C. Many resistors are located on DS3800NBID and have bands of different colors. These resistors can be identified by the letter R. The band on each resistor symbolizes the resistive capability of the device.

The DS3800NBID has an orange LED, also known as a light-emitting diode, on the upper part of the card. The diode is marked with the initial CR and is called CR5. All the other diodes around the board are non-luminous. These diodes are also labeled with the initial CR. In a line at the edge of the board, there are twenty-two test points labeled with the initial TP. The DS3800NBID has several resistor networks that can be identified by initials RN, such as RN1 and RN2. A feature near the bottom of the DS3800NBID is the connector port. Using this port, additional boards or additional parts can be attached to the card.
