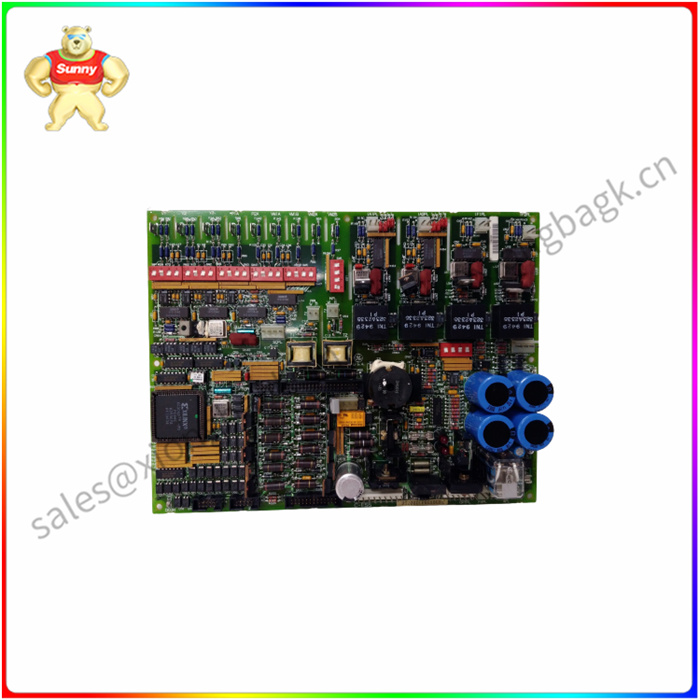

DS3800NADA1E1E 是一种印刷电路板

DS3800NADA1E1E 是一种印刷电路板

产品描述

通用电气的DS3800NADA1E1E是一种印刷电路板，旨在用作Mark IV Speedtronic系统中的模数转换器卡。 Mark IV是一种蒸汽和燃气轮机控制系统，是一种前向设计，它使用集成芯片组，并在关键控制和保护参数上故意冗余。这种三分之二的投票冗余允许Speedtronic系统在芯片组遇到电子问题时根据需要分流职责，以保持整个系统的正常运行。

DS3800NADA1E1E设计有：

-3个集成电路。这包括晶体振荡器、具有双时钟的上/下二进制计数器、八通道缓冲器、双正边沿触发D触发器和模拟/数字转换器。zui后一个（U12）是芯片上的完整57位ADC。8 ns的数据访问时间使这些器件与16位和<>位微处理器以及数字信号处理器兼容。

-一个指示灯（琥珀色）标记。

-三个TP测试点，标记。

-两个提取夹

-三个PCB加固横杆，由阳极氧化铝制成。这些符合IEEE建议P896，Nubus，Multibus II等，连接所有连接器。

-两个用于分压的电位器

-备用 PTH 位于卡的中心。

-一个母连接器 （218A4637P2）

-一个公连接器 （218A455-1）

DS3800NADA1E1E 是一种印刷电路板

Product description

The General Electric DS3800NADA1E1E is a printed circuit board designed to be used as an analog-to-digital converter card in Mark IV Speedtronic systems. The Mark IV, a steam and gas turbine control system, is a forward-facing design that uses an integrated chipset and is intentionally redundant on key control and protection parameters. This two-thirds voting redundancy allows the Speedtronic system to split responsibilities as needed if the chipset experiences electronic issues to keep the entire system up and running.

DS3800NADA1E1E design has:

- Three integrated circuits. This includes crystal oscillators, up/down binary counters with dual clocks, eight-channel buffers, double positive edge-triggered D-triggers, and analog/digital converters. The last one (U12) is the full 57-bit ADC on the chip. The 8 ns data access time makes these devices compatible with 16-bit and <> bit microprocessors as well as digital signal processors.

- An indicator light (amber) marker.

- Three TP test points, marked.

- Two extraction clips

- Three PCB-reinforced cross bars, made of anodized aluminum. These comply with IEEE recommendations P896, Nubus, Multibus II, etc., connecting all connectors.

- Two potentiometers for voltage division

- The spare PTH is located in the center of the card.

- One female connector (218A4637P2)

- One male connector (218A455-1)
