产品描述

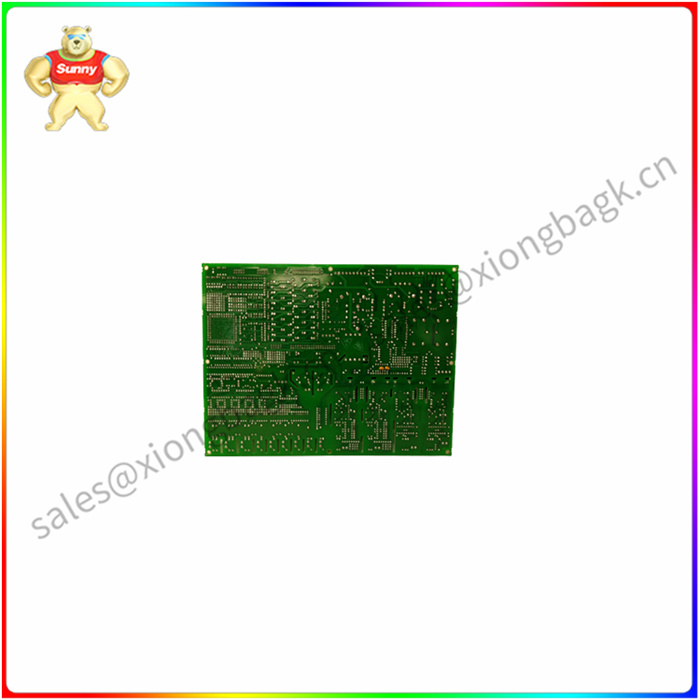

DS3800HXTA是一种PCB，设计用作Speedtronic（Mark IV）系列中的6系列变送器。专为燃气/蒸汽轮机控制而设计的Mark IV系列尽管已经过时，但仍然是一个有用的系统，因为精心设计的集成芯片组具有内置冗余，如果一块板遇到问题，会自动重新分配系统的负载。通过这种方式，整个系统的正常运行时间zui大化。Mark IV 可用于涡轮机及其辅助设备的排序以及冷却和启动程序。

DS3800HXTA按照以下规格制造：

它被标记为沿一条边缘对齐

它在工厂钻孔，可在所有四个角落安装选项。

它有两个夹子连接到电路板的两个角

它具有一系列备用PTH（电镀通孔），用于添加硬件。

它由五个电阻网络阵列构成。电阻网络可用于模数转换，也可用于分压。

它有一个标记为“DCOM”的测试点。它位于板的右下半部分。

它有两个红色指示灯。这些标记为“奇偶校验正常”和“链正常”。

它有一个母连接器和一个公连接器，位于电路板的相对两侧。

它有40个集成电路。

GE DS3800HXTA 是一种PCB 系列变送器

Product description

The DS3800HXTA is a PCB designed to be used as a Series 6 transmitter in the Speedtronic (Mark IV) series. Designed for gas/steam turbine control, the Mark IV series is still a useful system despite being obsolete, as the carefully designed integrated chipset has built-in redundancy that automatically redistributes the system's load if one board experiences a problem. In this way, the uptime of the entire system is maximized. The Mark IV can be used for sequencing turbines and their auxiliary equipment as well as for cooling and start-up procedures.

DS3800HXTA is manufactured to the following specifications:

It is marked as aligned along an edge

It is drilled in the factory and can be installed at all four corners with options.

It has two clips attached to the two corners of the board

It has a series of spare PTH (electroplated through holes) for adding hardware.

It consists of five resistor network arrays. The resistance network can be used for analog-to-digital conversion, but also for voltage division.

It has a test point labeled "DCOM". It is located on the lower right half of the board.

It has two red lights. These are labeled "parity normal" and "Chain normal."

It has a female connector and a male connector, located on opposite sides of the board.

It has 40 integrated circuits.
