GE DS3800HXRB1B1B C总线接收器电路板

GE DS3800HXRB1B1B C总线接收器电路板
产品描述

DS3800HXRB1B1B是通用电气制造的C总线接收器电路板。该板是为Speedtronic Mark IV系列创建的。Mark IV 是一系列涡轮机控制装置，几十年来一直依靠它为燃气轮机和蒸汽轮机提供安全高效的运行。

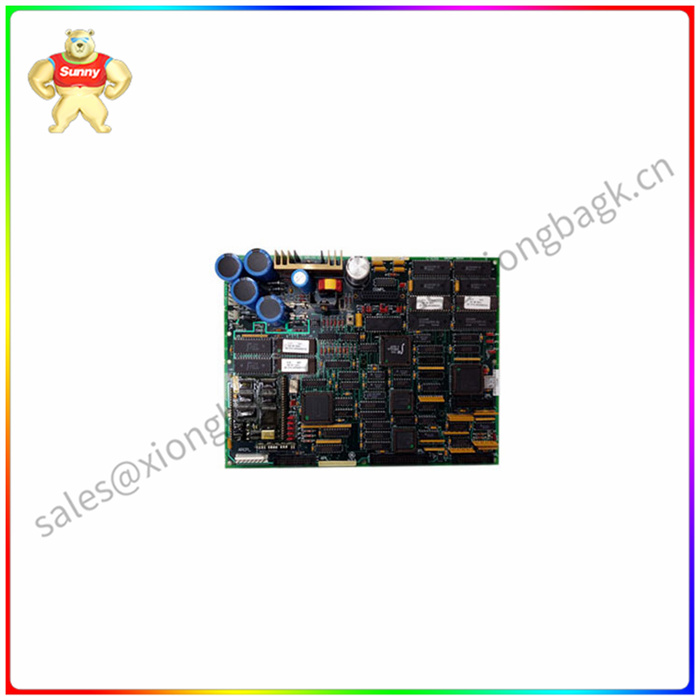

DS3800HXRB1B1B C 总线接收器电路板共有三十 （30） 个集成电路，覆盖了电路板的大部分内容。在电路板的表面上还可以找到各种不同颜色和尺寸的电容器。红色开关位于DS3800HXRB1B1B的左下角。紧挨着开关的是三 （3） 个发光二极管，也称为 LED。LED 指示灯呈红色。卡的右边缘是三 （3） 个“公”连接器端口，用户可以选择将额外的部件连接到电路板或将DS3800HXRB1B1B连接到另一块电路板。一 （1） 个电阻网络位于电路板的右半部分。每个电阻器网络中包含多个电阻器。这些网络的总电阻相当于内部电阻电阻的总和。除了电阻网络外，整个电路板上还有几个电阻器，它们以不同颜色的条带排列。每个电阻器上的带子告知用户每个电阻器的电阻能力。DS3800HXRB1B1B的表面还有几个带有蓝色跳线的跳线引脚，允许连接引脚。

GE DS3800HXRB1B1B C总线接收器电路板

Product description

The DS3800HXRB1B1B is a C-bus receiver circuit board manufactured by General Electric. The board was created for the Speedtronic Mark IV series. The Mark IV is a family of turbine controls that have been relied upon for decades to provide safe and efficient operation of gas and steam turbines.

The DS3800HXRB1B1B C Bus receiver board has a total of thirty (30) integrated circuits that cover most of the board. Capacitors of various colors and sizes can also be found on the surface of the circuit board. The red switch is located in the lower left corner of DS3800HXRB1B1B. Next to the switch are three (3) light-emitting diodes, also known as leds. The LED indicator is red. On the right edge of the card are three (3) "male" connector ports, giving the user the option of connecting additional parts to the board or connecting the DS3800HXRB1B1B to another board. One (1) resistance network is located on the right half of the board. Each resistor network contains multiple resistors. The total resistance of these networks is equal to the sum of the internal resistance resistors. In addition to the resistance network, there are several resistors throughout the board, which are arranged in strips of different colors. A band on each resistor informs the user of the resistance capacity of each resistor. The surface of the DS3800HXRB1B1B also has several jumper pins with blue jumpers, allowing the pins to be connected.
