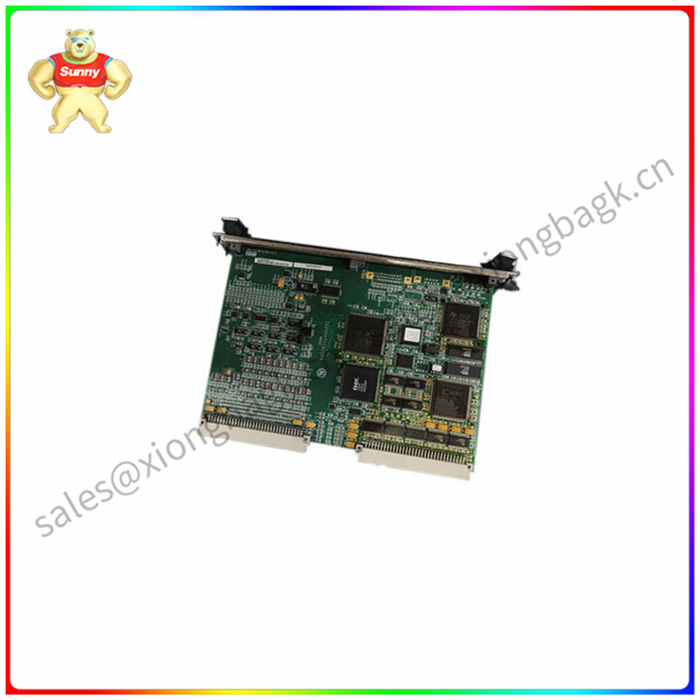

GE DS3800HXRA1F1F 系列 6 接收器板 模块化连接器

GE DS3800HXRA1F1F 系列 6 接收器板 模块化连接器
产品描述

GE 系列 6 接收器板DS3800HXRA1F1F设计用于快速安装在驱动器中。该板的一端有一个模块化连接器，另一端有一个固定杆。GE 系列 1 接收器板DS6HXRA3800F1F在固定杆之间装有 1 个 2 针连接器。该板表面还装有 40 个 1 针连接器，用于连接到子卡和 34 个跳线。

安装主板时，必须接合 GE 系列 6 接收器板上DS3800HXRA1F1F固定杆。固定杆将主板固定在机架中。它们使用凸轮动作将电路板向下压入主板机架后部的模块化连接器中。主板装有与驱动器上的模块化连接器相接的模块化连接器。当模块化连接器压在一起时，控制信号和电气连接从驱动器传递到电路板。此外，控制信号可传输到驱动器中的其他板。模块化连接的优点是无需在驱动器中使用多条带状电缆。这增加了气流以去除驱动器内部的热量。它还减少了电源线发出破坏性信号时可能发生的电气干扰的机会。

电路板上的 2 个 40 针连接器各有一个 ID。JB 和 JA 是 ID，它们印在与连接器相邻的电路板上。将 40 针带状电缆插入连接器并布线电缆，以避免堵塞驱动器底部和顶部的通风孔。

GE DS3800HXRA1F1F 系列 6 接收器板 模块化连接器

Product description

The GE Series 6 receiver board DS3800HXRA1F1F is designed for quick installation in a drive. The board has a modular connector at one end and a fixed rod at the other end. The GE Series 1 receiver plate DS6HXRA3800F1F has a 2-pin connector between the fixed rods. The surface of the board is also equipped with 40 1-pin connectors for connection to subcards and 34 jumpers.

When mounting the motherboard, the DS3800HXRA1F1F retaining rod on the GE Series 6 receiver plate must be engaged. The retaining rod holds the motherboard in the frame. They use CAM action to press the board down into a modular connector at the rear of the main board frame. The motherboard is equipped with a modular connector connected to the modular connector on the drive. When modular connectors are pressed together, control signals and electrical connections are passed from the driver to the circuit board. In addition, control signals can be transmitted to other boards in the drive. The advantage of modular connections is that there is no need to use multiple ribbon cables in the driver. This increases the airflow to remove heat from inside the drive. It also reduces the chance of electrical interference that can occur when the power cord emits a destructive signal.

Each of the two 40-pin connectors on the board has an ID. JB and JA are ids, which are printed on the circuit board adjacent to the connector. Insert the 40-pin ribbon cable into the connector and route the cable to avoid clogging the vent holes at the bottom and top of the driver.
