产品描述

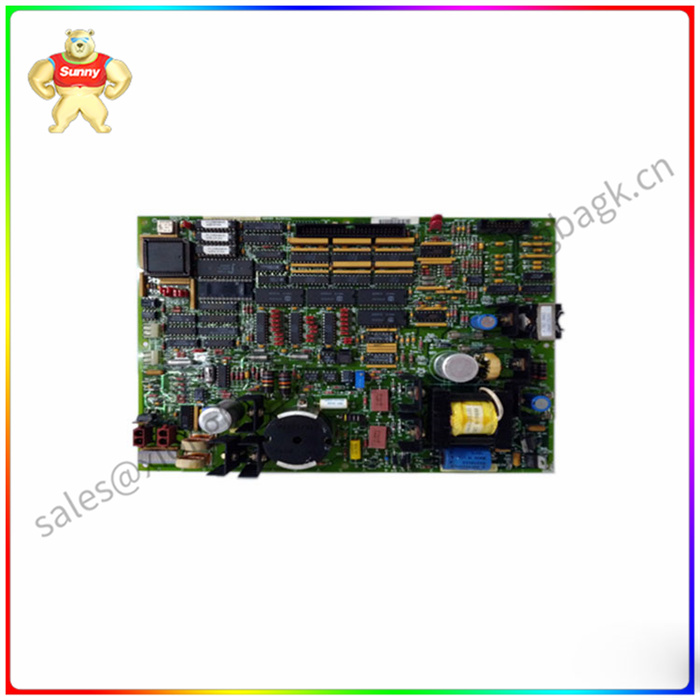

GE 系列 6 接收器板DS3800HXRA1E1E专为快速安装在驱动器中而设计。该板的一端有一个模块化连接器，另一端有一个固定杆。GE 系列 1 接收器板DS6HXRA3800E1E在固定杆之间还装有 1 个 2 针连接器。该板表面还装有 40 个 1 针连接器，用于连接到子卡，以及 34 个跳线。

GE 系列 6 接收器板DS3800HXRA1E1E通过为子卡供电来支持子卡。卡不能安装在驱动器内部的主板机架中。它只能安装在电路板顶部。该板有 4 个用于安装卡的塑料支架。支座可防止卡接触电路板，同时提供安全的硬件安装。

卡的电流通过连接到卡的 34 针带状电缆传输。带状电缆的另一端是一个塑料连接器，适合填充电路板的 34 针连接器。GE 系列 6 接收器板DS3800HXRA1E1E的设计使分卡与 34 针连接器相邻。

GE DS3800HXRA1E1E 具有34 针带状电缆传输

Product description

The GE Series 6 receiver board DS3800HXRA1E1E is designed for quick installation in a drive. The board has a modular connector at one end and a fixed rod at the other end. The GE Series 1 receiver panel DS6HXRA3800E1E also has a 2-pin connector between the fixed rods. The surface of the board is also equipped with 40 1-pin connectors for connecting to the sub-card, as well as 34 jumpers.

The GE Series 6 receiver board DS3800HXRA1E1E supports the child card by supplying power to the child card. The card cannot be installed in the motherboard rack inside the drive. It can only be mounted on top of the board. The board has four plastic brackets for mounting the card. The support prevents the card from touching the circuit board while providing secure hardware installation.

The card's current is transmitted through a 34-pin ribbon cable connected to the card. At the other end of the ribbon cable is a plastic connector that fits into the 34-pin connector that fills the circuit board. The GE Series 6 receiver board DS3800HXRA1E1E is designed so that the sub-card is adjacent to the 34-pin connector.
