产品描述

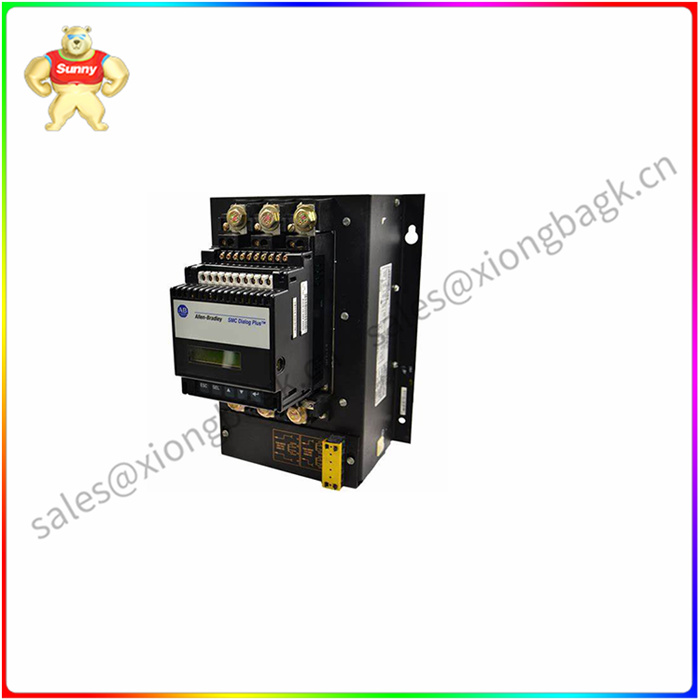

150-B97NBDB控制器是Allen-Bradley固态控制器。它属于Bulletin 150 SMC Dialog Plus系列电机控制器，支持200至600伏交流输入电压范围，并在输出端提供1至1000安培电流。

Allen-Bradley 150-B97NBDB固态控制器属于Bulletin 150 SMC Dialog Plus系列电机控制器，支持200至600伏交流电压范围，输出电流为1至1000安培。SMC Dialog Plus控制器已通过CSA、CE和CCC标准认证，并且还符合UL 508、EN/IEC 60947-1和CSA C22.2标准。150-B97NBDB控制器是一款额定电流为97安培的电机控制器，带有开放式外壳。泵控制是一个可选的电机控制功能，作为150-B97NBDB控制器的标准功能提供。可以从Allen-Bradley订购其他几种电机控制选项，包括预设慢速和精 确停止。所有SMC Dialog Plus控制器共有六种电机控制模式，包括电流限制、双斜坡启动、

150-B97NBDB控制器的输出功率范围在460伏交流电时为5至500马力。该控制器可以在200伏交流电到460伏交流电的输入电压范围内运行。仅支持50至60赫兹线路频率的三相输入。控制电压范围为100至240伏交流电。额定电流为350安培的保险丝可与控制器一起使用，以提供短路保护。zui大散热额定值为285瓦。150-B97NBDB控制器的近似装运重量为23磅，控制器尺寸为12 x 9.77 x 10.09英寸。控制器的工作温度范围为0至50摄氏度。

150-B97NBDB AB 罗克韦尔 控制器PLC模块

Product description

The 150-B97NBDB controller is an Allen-Bradley solid state controller. It belongs to the Bulletin 150 SMC Dialog Plus series of motor controllers that support the 200 to 600 volt AC input voltage range and provide 1 to 1000 amps at the output.

The Allen-Bradley 150-B97NBDB solid state controller belongs to the Bulletin 150 SMC Dialog Plus series of motor controllers and supports a 200 to 600 volt AC voltage range with an output current of 1 to 1000 amps. SMC Dialog Plus controllers are certified to CSA, CE and CCC standards and also comply with UL 508, EN/IEC 60947-1 and CSA C22.2 standards. The 150-B97NBDB controller is a motor controller with a fixed current of 97 amps with an open housing. Pump control is an optional motor control feature that is provided as a standard feature on the 150-B97NBDB controller. Several other motor control options can be ordered from Allen-Bradley, including preset slow speeds and precise stops. All SMC Dialog Plus controllers have six motor control modes, including current limiting, dual ramp starting,

The 150-B97NBDB controller has an output power range of 5 to 500 HP at 460 volts AC. The controller can operate in the input voltage range from 200 volts AC to 460 volts AC. Only three-phase inputs with 50 to 60 Hz line frequencies are supported. The control voltage ranges from 100 to 240 volts AC. Fuses rated at 350 amps can be used with the controller to provide short circuit protection. The maximum heat dissipation rating is 285 watts. The approximate shipping weight of the 150-B97NBDB controller is 23 LBS and the controller size is 12 x 9.77 x 10.09 inches. The operating temperature range of the controller is 0 to 50 degrees Celsius.
