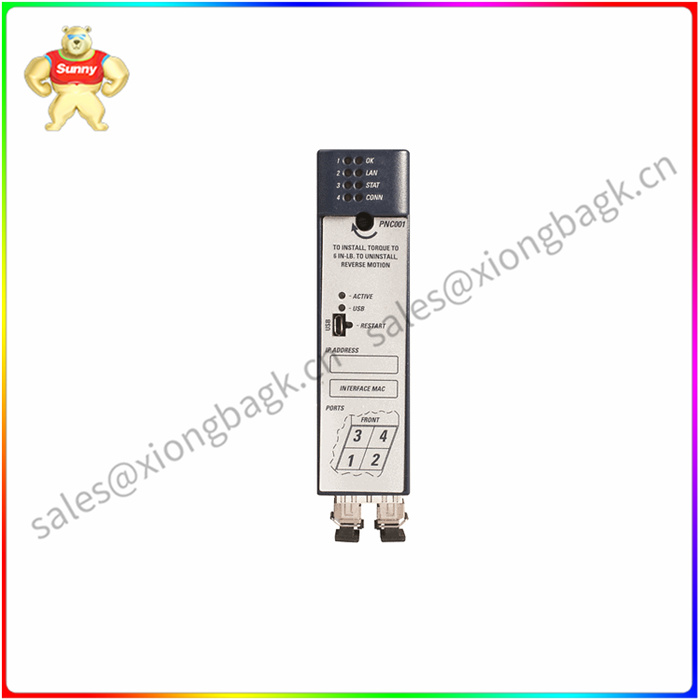

IC695PNC001-AF 带有单独销售的SFP连接器

IC695PNC001-AF 带有单独销售的SFP连接器

IC695PNCOO1兼容PACSystem RX3iCPU315或CPU320，固件版本为7.0或更高。该模块附带两(2)个RJ-45和两(2)个SFP插槽，带有单独销售的SFP连接器。这些PROFINET端口只分配了一个IP地址。一个CPU上zui多可以安装四(4)个C695PNC001，并且只能安装在CPU所在的主机架上。zui多六十四(64)个/O设备可以连接到一(1)个控制器;每个网络128个/O设备，分布在八(8)个/O控制器中。此外，一个网络中zui多可以安装八8)个/O设备。该模块的数据更新时间可配置为1 ms、2 ms、4 ms、8 ms、16 ms、32 ms、64 ms、128 ms、256 ms和512 ms.

IC695PNCOO1可在通电状态下拆饵和插入(RIUP)。它占用机箱的一个插槽，未安装SFP设备时消耗0.5A，安装两(2)个SFP设备时zui大消耗1.2A,其中—个SFP设备消耗0.35A。在5.5 VDC下，该模块zui大消耗1.5A.

除了嵌入式双PROFINET端口之外，该模块还带有一个微型USB连接器，用于通过命令行接口与计算机进行通信。它必须在0-60摄氏度的温度范围内工作。

IC695PNC001-AF 带有单独销售的SFP连接器

The IC695PNCOO1 is compatible with PACSystem RX3iCPU315 or CPU320 with firmware version 7.0 or higher. The module comes with two (2) RJ-45s and two (2) SFP slots with separately sold SFP connectors. These PROFINET ports are assigned only one IP address. A maximum of four (4) C695PNC001s can be installed on one CPU and can only be installed on the host rack where the CPU is located. Up to sixty-four (64) /O devices can be connected to one (1) controller; Each network has 128 /O devices, distributed among eight (8) /O controllers. In addition, a maximum of eight (8) /O devices can be installed in a network. The data update time of the module can be configured as 1 ms, 2 ms, 4 ms, 8 ms, 16 ms, 32 ms, 64 ms, 128 ms, 256 ms and 512 ms.

The IC695PNCOO1 can be decoyed and inserted (RIUP) in a powered state. It occupies one slot in the chassis and consumes 0.5A when no SFP device is installed, and A maximum of 1.2A when two (2) SFP devices are installed, of which one SFP device consumes 0.35A. At 5.5 VDC, the module consumes A maximum of 1.5A.

In addition to the embedded dual PROFINET ports, the module comes with a micro-USB connector for communication with the computer via a command line interface. It must operate in a temperature range of 0-60 degrees Celsius.

IC695PNC001-AF 带有单独销售的SFP连接器
