产品描述

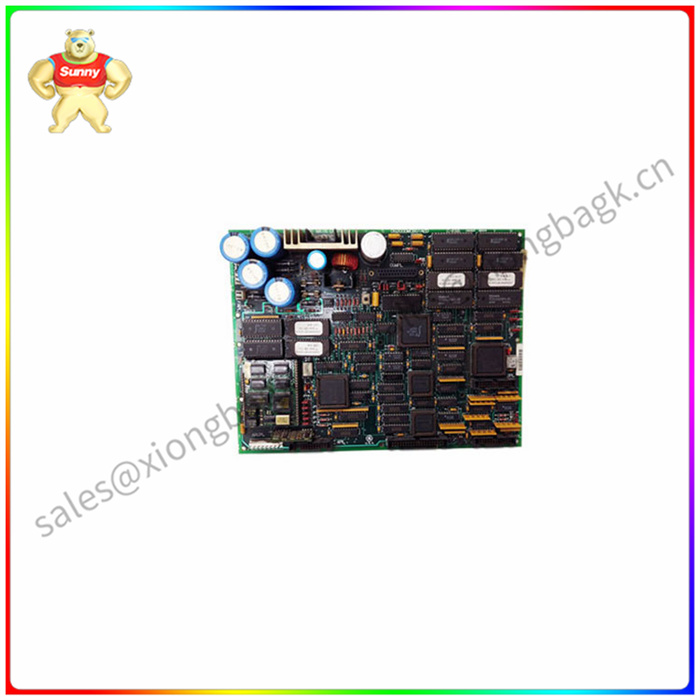

GE 系列 6 接收器板DS3800HXRA设计用于快速安装在驱动器中。该板的一端有一个模块化连接器，另一端有一个固定杆。GE 系列 1 接收器板DS6HXRA在固定杆之间还装有 3800 个 2 针连接器。该板表面还装有 40 个 1 针连接器，用于连接到子卡，以及 34 个跳线。

GE 系列 6 接收器板DS3800HXRA还装有支架，可以连接子卡。子卡不独立运行，而是与主板一起工作。它从电路板接收电力，并从电路板接收信号。信号由子卡处理。其他信号被传输回电路板。子卡为主板提供了额外的处理和功能。子卡连接到支架上。子卡的每个角都有一个孔，支架适合孔。将卡按入支架，直到子卡卡入到位。子卡将牢固地连接。子卡装有一根 40 针短带状电缆。带状电缆连接到电路板上的 40 针连接器。

由于附加了子卡的主板的重量和尺寸增加，因此在主板机架中安装主板时要小心。将主板滑入机架，但不要刮擦机架或驱动器内部的其他组件。

GE DS3800HXRA 系列 6 接收器板 还装有支架

Product description

The GE Series 6 receiver board DS3800HXRA is designed for quick installation in drives. The board has a modular connector at one end and a fixed rod at the other end. The GE Series 1 receiver board DS6HXRA also has 3,800 2-pin connectors between the fixed rods. The surface of the board is also equipped with 40 1-pin connectors for connecting to the sub-card, as well as 34 jumpers.

The GE Series 6 receiver board DS3800HXRA is also equipped with a bracket for attaching subcards. The subcard does not operate independently, but works with the motherboard. It receives power from the circuit board and signals from the circuit board. The signal is processed by the child card. Other signals are transmitted back to the board. The subcard provides additional processing and functionality to the motherboard. The sub-card is connected to the bracket. Each corner of the sub-card has a hole, and the bracket fits into the hole. Press the card into the holder until the sub card is in place. The sub-card will be securely attached. The sub-card is fitted with a 40-pin short ribbon cable. The ribbon cable connects to the 40-pin connector on the circuit board.

Due to the increased weight and size of motherboards with attached subcards, care should be taken when installing motherboards in motherboard racks. Slide the motherboard into the rack, but do not scratch other components inside the rack or drive.
