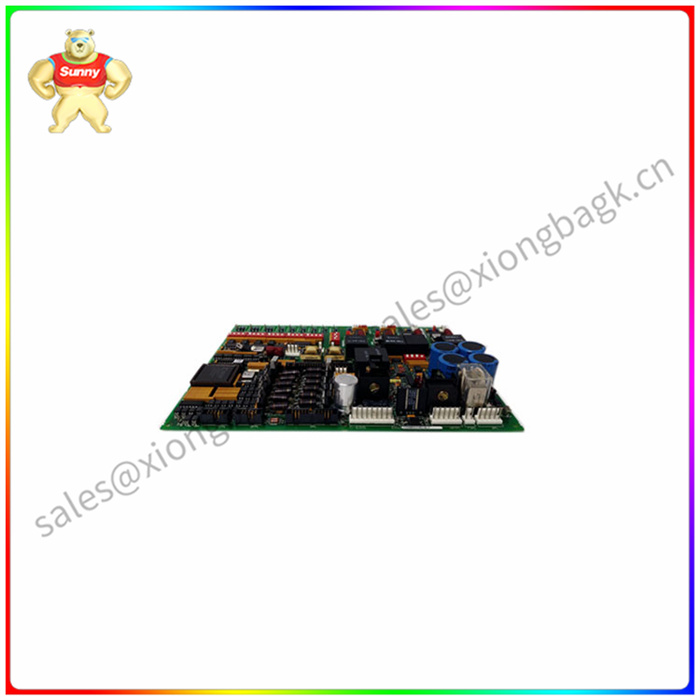

GE DS3800HXPD1C1E 微处理器扩展板 8 个跳线

GE DS3800HXPD1C1E 微处理器扩展板 8 个跳线

产品描述

GE微处理器扩展板DS3800HXPD1C1E设计用于快速安装在驱动器中。该板的一端有一个模块化连接器，另一端有一个固定杆。GE 微处理器扩展板DS1HXPD3800C1E在固定杆之间还装有 1 个 2 针连接器。该板还装有 34 个用于电可擦除可编程只读存储器 （EEPROM） 模块的插座和 8 个跳线。

更换的GE微处理器扩展板DS3800HXPD1C1E没有在插座中安装EEPROM模块。故障板上的模块具有驱动器用于控制和指导处理的固件和软件代码。因此，zui佳做法是从旧主板上卸下模块并将其安装在替换板上。模块插座旨在使模块拆卸和安装快速简便。确保一次卸下并更换一个模块，并将它们安装在新主板上的正确插座上。用一根手指或螺丝刀从故障板上的插槽中撬开模块。用拇指将它们按入新主板上的插座。

安装模块并且驱动器正常运行后，您可以选择更新代码。随着针对代码的已知问题开发修复程序并开发改进，将发布新版本的代码。查看zui新版本的说明，如果发现zui新代码版本的好处，请更新代码。

GE DS3800HXPD1C1E 微处理器扩展板 8 个跳线

Product description

The GE microprocessor expansion board DS3800HXPD1C1E is designed for quick installation in a drive. The board has a modular connector at one end and a fixed rod at the other end. The GE microprocessor expansion board DS1HXPD3800C1E also has a 2-pin connector between the fixing rods. The board is also equipped with 34 sockets for electrically erasable programmable read-only memory (EEPROM) modules and 8 jumpers.

The replacement GE microprocessor expansion board DS3800HXPD1C1E does not have the EEPROM module installed in the socket. The module on the fault board has firmware and software code that the driver uses to control and guide the processing. Therefore, the best practice is to remove the module from the old motherboard and install it on a replacement board. Module sockets are designed to make module removal and installation quick and easy. Make sure to remove and replace one module at a time and install them in the correct sockets on the new motherboard. Use a finger or a screwdriver to pry the module out of the slot on the faulty board. Press them into the socket on the new motherboard with your thumb.

After the module is installed and the drive is running properly, you have the option to update the code. New versions of the code will be released as fixes are developed for known problems with the code and improvements are developed. Review the instructions for the latest version and update the code if you find the benefits of the latest code version.
