产品描述

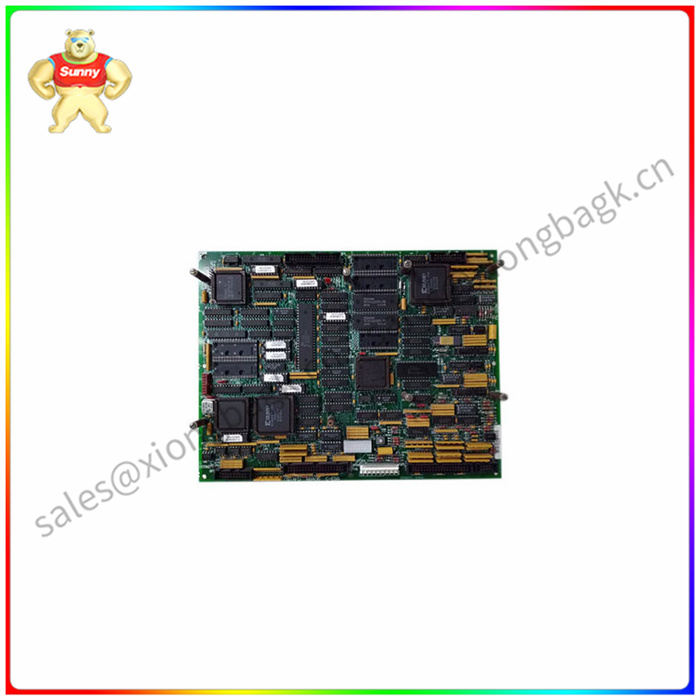

GE微处理器扩展板DS3800HXPD1B1D设计用于快速安装在驱动器中。该板的一端有一个模块化连接器，另一端有一个固定杆。GE微处理器扩展板DS1HXPD3800B1D在固定杆之间也装有1个2针连接器。该板还装有 34 个用于电可擦除可编程只读存储器 （EEPROM） 模块的插座和 8 个跳线。

当您收到更换的GE微处理器扩展板DS3800HXPD1B1D时，您会注意到EEPROM插槽是空的。这为技术人员提供了从要更换的有缺陷的电路板上卸下模块的机会。这些模块对静电敏感。静电会使模块上的代码和固件不可读。为了保持模块的功能，手头有静态保护袋，您可以在将模块从电路板上取下后将其放入其中。戴腕带。它会导致静电从您的人排出到接地表面。接地表面连接到腕带的另一端。夹子或插头将带子固定在接地表面上。接地表面可以是金属椅腿、金属桌面或金属支架。

模块和插座之间是设计用于卸下模块的空间。将螺丝刀放在空间中并提起模块。将其放入袋子中并存放在安全干燥的地方。准备好安装模块时检索它们。

GE DS3800HXPD1B1D 在固定杆之间也装有1个2针连接器

Product description

The GE microprocessor expansion board DS3800HXPD1B1D is designed for quick installation in a drive. The board has a modular connector at one end and a fixed rod at the other end. The GE microprocessor expansion board DS1HXPD3800B1D also has a 2-pin connector between the fixed rods. The board is also equipped with 34 sockets for electrically erasable programmable read-only memory (EEPROM) modules and 8 jumpers.

When you receive the replacement GE microprocessor expansion board DS3800HXPD1B1D, you will notice that the EEPROM slot is empty. This provides the technician with the opportunity to remove the module from the defective circuit board to be replaced. These modules are sensitive to static electricity. Static electricity makes the code and firmware on the module unreadable. In order to keep the module functional, there are static protective bags on hand that you can put the module into after removing it from the board. Wear a wristband. It causes electrostatic discharge from your person to the ground surface. The ground surface is connected to the other end of the wrist strap. Clamps or plugs hold the strap to the ground surface. The ground surface can be a metal chair leg, a metal table top, or a metal bracket.

Between the module and the socket is the space designed for removing the module. Place the screwdriver in the space and lift the module. Place in a bag and store in a safe, dry place. Ready to retrieve them when the module is installed.
