产品描述

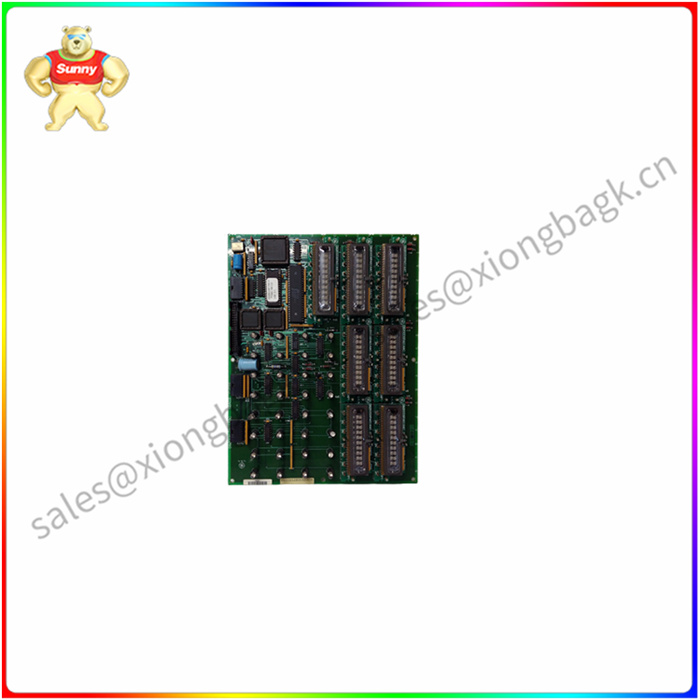

GE视频驱动器板DS3800HVDB1J1F设计用于在驱动器中快速安装。该板的一端有一个模块化连接器，另一端有一个固定杆。GE 视频驱动器板DS1HVDB3800J1F在固定杆之间还装有 1 个 1 针连接器。该板还装有多个可擦除可编程只读存储器 （EPROM） 模块和 20 个跳线。

从驱动器内部卸下 GE 视频驱动器板DS3800HVDB1J1F并将其放置在干净且防静电的表面上后，需要完成几项任务来准备更换板。

如果尚未这样做，请从连接器上拔下 20 针带状电缆。由于它有固定杆，请先将拉杆从带状电缆连接器上解放出来。一次摆动 1 个拉杆，从接头上解开。然后，握住 20 针连接器并将其从连接器中拉出。请注意带状电缆在驱动器内的布线方式。安装新主板时，使用相同的电缆布线。这将有助于保持空气的自由流动，从而从驱动器中去除热空气。

如果没有适当的气流，热量会积聚并导致过热状态。如果温度达到预定阈值以上，驱动器将自动关闭。热量积聚还会损坏组件并导致间歇性加工错误。它还可能导致早期组件故障。也就是说，组件需要在预期使用寿命之前更换。

GE DS3800HVDB1J1F 视频驱动器板 1 针连接器

Product description

The GE video driver board DS3800HVDB1J1F is designed for quick installation in drives. The board has a modular connector at one end and a fixed rod at the other end. The GE video driver board DS1HVDB3800J1F also has a 1-pin connector between the fixing rods. The board also houses multiple erasable programmable read-only memory (EPROM) modules and 20 jumpers.

After removing the GE video driver board DS3800HVDB1J1F from inside the drive and placing it on a clean and anti-static surface, there are several tasks to complete to prepare the replacement board.

If you have not already done so, unplug the 20-pin ribbon cable from the connector. Since it has a fixed rod, please first free the tie rod from the ribbon cable connector. Swing 1 tie rod at a time to unhook from the joint. Then, hold the 20-pin connector and pull it out of the connector. Note the way the ribbon cable is routed in the driver. Use the same cable wiring when installing a new motherboard. This will help maintain the free flow of air, thereby removing hot air from the drive.

Without proper airflow, heat can build up and lead to a superheated state. If the temperature reaches a predetermined threshold, the drive will shut down automatically. Heat buildup can also damage components and cause intermittent machining errors. It can also cause early component failure. That is, components need to be replaced before their expected service life.
