产品描述

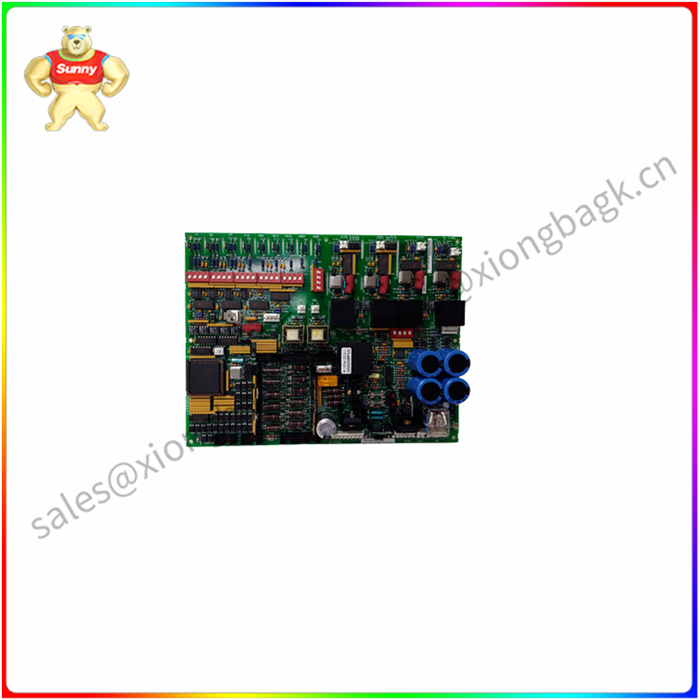

GE 通用内存板DS3800HUMB1B1B专为快速安装在驱动器中而设计。该板的一端有一个模块化连接器，另一端有一个固定杆。GE 通用内存板DS1HUMB3800B1B还装有 1 个复位拨动开关和 1 个红色指示灯 LED。该板还装有多个可擦除可编程只读存储器 （EPROM） 模块和 1 个跳线。

GE 通用内存主板上的一些跳线DS3800HUMB1B1B与主板上不同的逻辑划分相关联。四通道D由4个EEPROM模块、多个单线连接器和8个跳线组成。跳线用于配置逻辑划分。这些部门被称为四边形。有4个四边形。逻辑划分是四边形 A、四边形 B、四边形 C 和四边形 D.四边形 A、B 和 C 填充了晶体管到晶体管器件。

电路板的一侧装有模块化连接器。它设计用于连接到驱动器内主板机架背面的模块化连接器。当模块化连接器相遇时，控制信号能够从电路板传输。其他控制信号由电路板接收进行处理。模块化连接器还发送用于为电路板供电的电力。

电路板的另一侧配备了固定杆。拉杆将模块化连接器锁定在一起，防止电路板意外从机架上卸下。

GE DS3800HUMB1B1B 主板上不同的逻辑划分相关联

Product description

The GE Universal memory board DS3800HUMB1B1B is designed for quick installation in drives. The board has a modular connector at one end and a fixed rod at the other end. The GE universal memory board DS1HUMB3800B1B also has a reset toggle switch and a red indicator LED. The board is also equipped with multiple erasable programmable read-only memory (EPROM) modules and a jumper.

Some jumpers on GE general memory motherboards DS3800HUMB1B1B are associated with different logical partitions on the motherboard. The four-channel D consists of four EEPROM modules, multiple single-wire connectors, and eight jumpers. Jumpers are used to configure logical partitions. These departments are called quadrangles. There are four quadrilateral shapes. The logical divisions are quadrilateral A, quadrilateral B, quadrilateral C, and quadrilateral D. Quadrangles A, B, and C fill the transistor-to-transistor device.

One side of the board is fitted with modular connectors. It is designed to be a modular connector attached to the back of the motherboard rack inside the drive. When modular connectors meet, control signals can be transmitted from the board. Other control signals are received by the circuit board for processing. The modular connector also sends electrical power that is used to power the board.

The other side of the circuit board is equipped with a retaining rod. The pull rod locks the modular connectors together and prevents the board from accidentally being removed from the rack.
