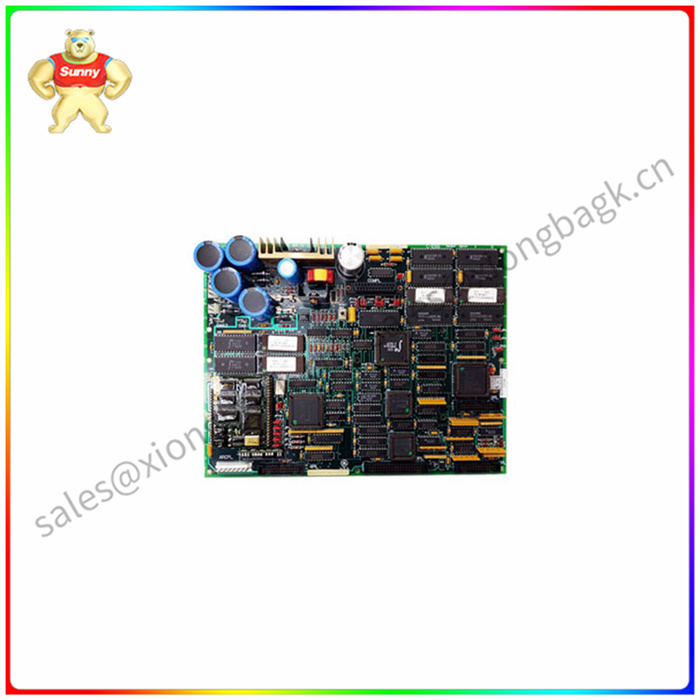

GE低HP序列板DS3800HSQD1G1E的每个角上都有一个孔，用于插入螺钉以将板固定在驱动器中。GE低HP序列板DS3800HSQD1G1E还配备了2个40针连接器和1个20针连接器，带有固定杠杆以固定带状电缆。该板还在板的表面上填充了一个50针连接器和1个20针连接器。该板还配有1个可擦除可编程只读存储器(EPROM)模块和1个琥珀色LED指示灯和8个红色LED指示灯。

GE低HP序列板DS3800HSQD1G1E也充满了僵局。僵局使得子牌可以附在棋盘上。要使用支架，服务人员或安装人员将子卡上的孔与支架对齐，并将卡压入适当位置。要移除子牌，将子牌的一个角从架子上抬起。然后，在另一个角上重复这个过程，直到所有的角都自由了。子卡旨在为GE低HP序列板DS3800HSQD1G1E添加功能。带状电缆连接到子卡，并以50针连接器结束。如果要使用子卡，请将50针连接器连接到GE Low HP Sequence Board DS3800HSQD1G1E上的50针连接器。50pin带状电缆为子卡提供信号连接和电源连接。

安装带子卡的主板时，请避免子卡与驱动器中的其他组件刮擦。

GE DS3800HSQD1G1E 低HP序列板 2个40针连接器

The GE Low HP sequence board DS3800HSQD1G1E has a hole in each corner for inserting screws to secure the board in the drive. The GE Low HP serial board DS3800HSQD1G1E also comes with two 40-pin connectors and one 20-pin connector with a fixed lever to secure the ribbon cable. The board is also filled with a 50-pin connector and a 20-pin connector on the surface of the board. The board is also equipped with an erasable Programmable read-only memory (EPROM) module and an amber LED indicator and eight red LED indicators.

The GE low-HP sequence board DS3800HSQD1G1E is also fraught with gridlock. Gridlock allows sub-cards to be attached to the board. To use the bracket, the service person or installer aligns the holes in the sub-card with the bracket and presses the card into place. To remove a sub-card, lift one corner of the sub-card off the shelf. Then, repeat the process on the other corner until all the corners are free. The subcard is designed to add functionality to the GE low HP sequence board DS3800HSQD1G1E. The ribbon cable is connected to the sub-card and ends with a 50-pin connector. If you want to use a subcard, connect the 50-pin connector to the 50-pin connector on the GE Low HP Sequence Board DS3800HSQD1G1E. The 50pin ribbon cable provides the signal connection and power connection for the sub-card.

When installing the motherboard with the strap card, avoid scratching the subcard with other components in the drive.
