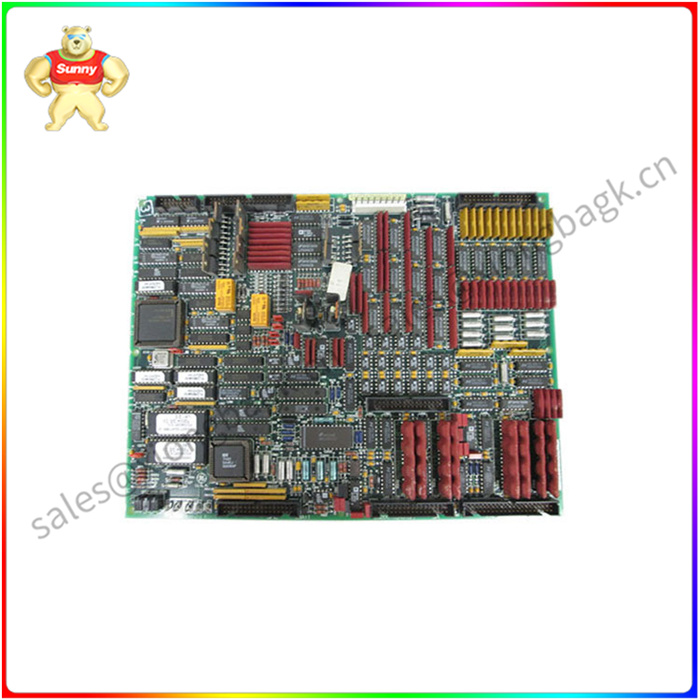

GE 低 HP 序列板DS3800HSQD1E1B设计为每个角上都有一个孔，用于插入螺钉以将板固定在驱动器中。GE 低 HP 序列板DS1HSQD3800E1B还配备了 1 个 2 针连接器和 40 个带固定杆的 1 针连接器，用于固定带状电缆。该板还装有 20 针连接器和 50 个 1 针连接器。该板还装有 20 个可擦除可编程只读存储器 （EPROM） 模块和 1 个琥珀色指示灯 LED 和 1 个红色指示灯 LED。

当您计划安装更换的 GE 低 HP 序列板DS3800HSQD1E1B时，第 一步是卸下要更换的板。这需要您断开驱动器的所有电源。如果您不确定电能的多种来源，请咨询了解驱动器安装的工程师或技术人员。熟悉安装的人将知道如何断开电源。这一点很重要，因为驱动器由多个电源供电。必须先断开所有源的连接，安装程序才能开始替换任务。

zui佳做法是在卸下电路板之前卸下带状电缆。40 针连接器配有固定闩锁。要断开带状电缆，请先从带状电缆上方旋开固定闩锁。然后，握住电缆的连接器端并将其轻轻从电路板上卸下。

GE DS3800HSQD1E1B 40 针连接器配有固定闩锁
The GE Low HP sequence board DS3800HSQD1E1B is designed with a hole in each corner for inserting screws to secure the board in the drive. The GE Low HP serial board DS1HSQD3800E1B is also equipped with 1 2-pin connector and 40 1-pin connectors with fixed rods for securing ribbon cables. The board is also equipped with 20-pin connectors and 50 1-pin connectors. The board is also equipped with 20 erasable programmable read-only memory (EPROM) modules and one amber LED and one red LED.

When you plan to install a replacement GE low HP sequence board DS3800HSQD1E1B, the first step is to remove the board to be replaced. This requires you to disconnect all power from the drive. If you are unsure of the multiple sources of electrical energy, consult an engineer or technician who knows about drive installation. Someone familiar with installation will know how to disconnect the power. This is important because the drive is powered by multiple sources. All sources must be disconnected before the installer can begin the replacement task.

The best practice is to remove the ribbon cable before removing the circuit board. The 40-pin connector is equipped with a fixed latch. To disconnect the ribbon cable, unscrew the retaining latch from above the ribbon cable. Then, hold the connector end of the cable and gently remove it from the board.
