GE DS3800HSPC1D1F 是速度位置输入板

GE DS3800HSPC1D1F 是速度位置输入板

产品描述

DS3800HSPC1D1F是速度位置输入板。它是Speedtronic Mark IV系列的一部分，由通用电气制造。

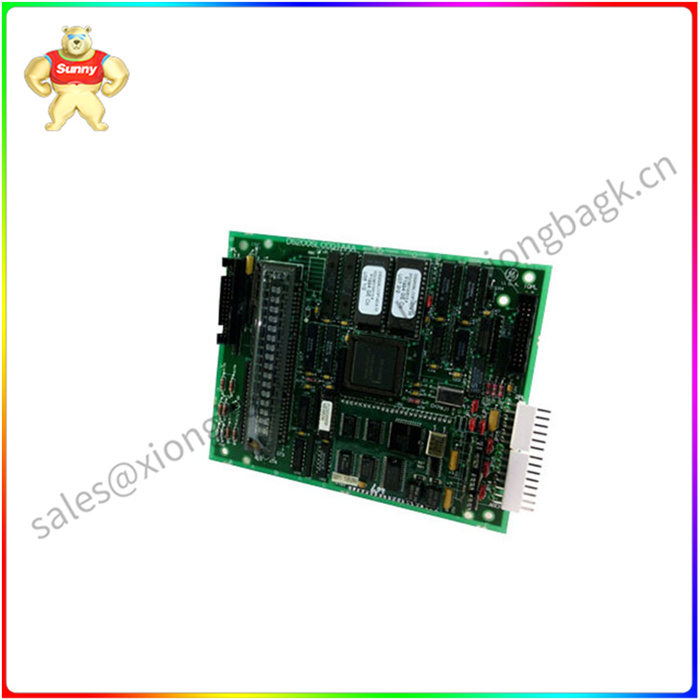

DS3800HSPC1D1F有25个集成电路。所有集成电路都包含几个非常小的组件，例如电阻器，电容器和二极管。板上有许多不同颜色的电容器。其中三个电容器是银色的，一个电容器是黄色的。还有许多浅蓝色电容器和黑色电容器。卡上还有一个带有各种颜色的电容器。这些波段表示设备的能量容量。许多电阻器覆盖在彩色带中，也代表器件的容量。电路板上有两个晶体管。其中一个晶体管是银色和圆柱形的。该晶体管被指定为Q2。另一个晶体管是黑色的，呈半月形。该晶体管标记为Q1。在卡的表面上可以找到许多红色带状二极管。与电路板右侧接壤的是一系列测试点。这些测试点可以测试电路板的功能。主板的右端是一个蓝色的公插孔连接器端口。板上有几个跳线引脚，具有黑色跳线，用于在引脚之间建立连接。蓝色电位计，也称为可变电阻器，位于DS3800HSPC1D1F的右端。电位计有时用于控制音量等变量。在印刷电路板中，它们可以调整可变电阻器的电阻。

GE DS3800HSPC1D1F 是速度位置输入板
Product description

The DS3800HSPC1D1F is a speed position input board. It is part of the Speedtronic Mark IV series and is manufactured by General Electric.

The DS3800HSPC1D1F has 25 integrated circuits. All integrated circuits contain several very small components, such as resistors, capacitors, and diodes. There are many different colored capacitors on the board. Three of the capacitors are silver and one is yellow. There are also many light blue capacitors and black capacitors. The card also has a capacitor with various colors. These bands represent the energy capacity of the device. Many resistors are covered in a color band, which also represents the capacity of the device. There are two transistors on the circuit board. One of the transistors is silver and cylindrical. This transistor is designated Q2. The other transistor is black and in the shape of a half-moon. The transistor is labeled Q1. Many red ribbon diodes can be found on the surface of the card. Bordering the right side of the board is a series of test points. These test points can test the functionality of the board. The right end of the motherboard is a blue male jack connector port. There are several jumper pins on the board, with black jumpers that are used to create connections between the pins. The blue potentiometer, also known as the variable resistor, is located on the right end of the DS3800HSPC1D1F. Potentiometers are sometimes used to control variables such as volume. In printed circuit boards, they can adjust the resistance of variable resistors.
