IS200TRTDH1C 模块通用电气 结构紧凑 维护方便

IS200TRTDH1C 模块通用电气  结构紧凑 维护方便

产品描述

IS200TRTDH1C是通用电气为Mark VI系统制造的电路板组件。Mark VI 是 Speedtronic 系列的一部分，用于管理重型燃气轮机和蒸汽轮机。Mark VI 通过其操作员界面提供报警显示、过程变量趋势和点控制显示。

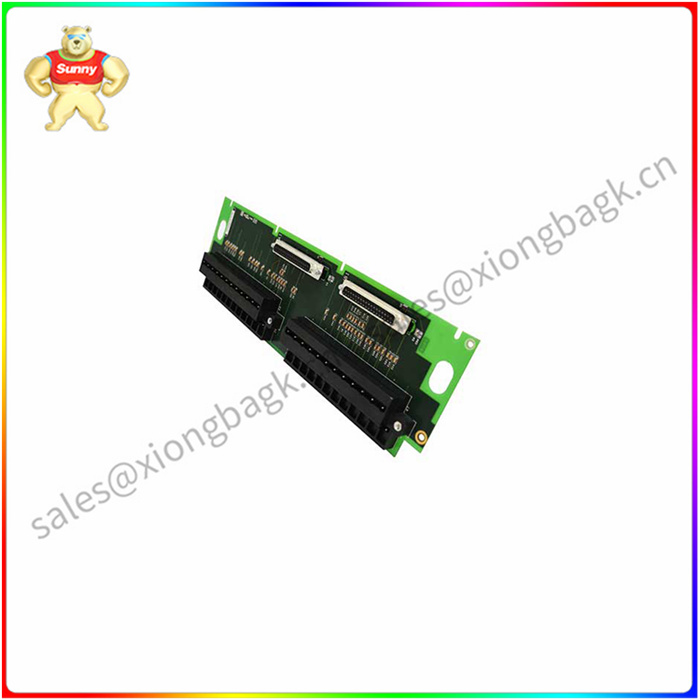

该IS200TRTDH1C用作RTD输入端子板。从物理上讲，该板由两个接线端子组成，每个接线端子有 24 个螺钉连接、两个 37 针电缆连接器（母头）和一排电容器。该板带有代码“6BA00”。左边缘有一个屏蔽条，直接连接到接线端子的侧面。该板有两个工厂钻孔的椭圆形切口，用于螺钉安装，以及沿一个板边缘的几个槽口。

IS200TRTDH1C连接到VRTD板，通过两根电缆连接进行通信。I/O板将TRTD输入转换为温度值（数字形式），然后将其传输到控制器。IS200TRTDH1C是单工板，不支持TMR应用。

IS200TRTDH1C没有跳线或硬件设置。但是，该板确实具有基于预设高/低电平的硬件限制检查功能。它还具有用于生成警报的软件系统限制检查;可以配置这些限制。检查每个RTD的电阻，并将其与其正确值进行比较。如果它很高或很低，则会产生故障。此外，位于电路板上的每个连接器都有自己的 ID 设备，这些设备会产生不匹配的不兼容故障。

IS200TRTDH1C 模块通用电气  结构紧凑 维护方便

Product description

The IS200TRTDH1C is a circuit board component manufactured by General Electric for the Mark VI system. The Mark VI is part of the Speedtronic family for the management of heavy-duty gas and steam turbines. The Mark VI provides alarm displays, process variable trends, and point control displays through its operator interface.

The IS200TRTDH1C is used as an RTD input terminal board. Physically, the board consists of two terminal terminals, each with 24 screw connections, two 37-pin cable connectors (female), and a bank of capacitors. The board comes with the code "6BA00". There is a shield strip on the left edge that connects directly to the side of the terminal. The plate has two factory-drilled oval notches for screw mounting, as well as several notches along the edge of one plate.

The IS200TRTDH1C is connected to the VRTD board and communicates via two cable connections. The I/O board converts the TRTD input into a temperature value (in digital form), which is then transmitted to the controller. The IS200TRTDH1C is a simplex board and does not support TMR applications.

The IS200TRTDH1C has no jumper or hardware Settings. However, the board does have a hardware limit check function based on preset high/low levels. It also has a software system limit check for generating alerts; These limits can be configured. Check the resistance of each RTD and compare it to its correct value. If it is very high or very low, it will produce a fault. In addition, each connector located on the board has its own ID device, which creates incompatible failures that do not match.

IS200TRTDH1C 模块通用电气  结构紧凑 维护方便
