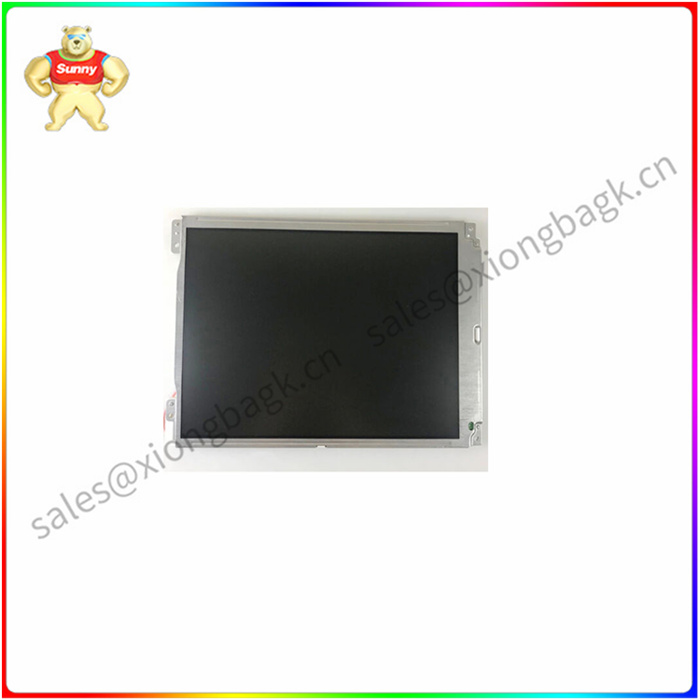

Sharp LM64P89L 液晶显示器

Sharp LM64P89L 液晶显示器

是一款采用FSTN-LCD技术的10.4英寸液晶模组产品，它装配有CCFL背光，无背光驱动，无触摸。它的工作温度为 0 ~ 45°C，存储温度为 -25 ~ 60°C。此型号适合应用于工业。当前生产状态为已停产。目前LM64P89L在屏库上有4条现货信息、3家供应商信息，交易氛围活跃。

屏库于2013年04月04日对此型号首 次建立参数，并于2019年05月15日对参数进行了zui后更新。根据夏普 (Sharp)于1996年6月12日发布的版本号为LC96608的产品规格书，LM64P89L显示分辨率为640×480 (VGA)，宽高比为4:3 (宽:高)，像素采用矩形排列。它的显示区域尺寸为211.17×158.37 (宽×高) mm，可视尺寸为223.0×169.0 (宽×高) mm，外观尺寸为268(宽)×190(高) mm，产品净重340g (Typ.)。

背光方面此产品采用了1 pcs CCFL发光的侧入式光源(顶部)，光源的使用寿命为25K小时，不含背光驱动。LM64P89L采用了Parallel Data (1ch, 4-bit)信号接口，总共15 pins，采用端子连接，驱屏电压为5.0V (Typ.)。它的典型垂直刷新率Fv为85Hz。

Sharp LM64P89L 液晶显示器
It is a 10.4-inch LCD module using FSTN-LCD technology, which is equipped with CCFL backlight, no backlight drive, no touch. Its operating temperature is 0 ~ 45°C, and its storage temperature is -25 ~ 60°C. This model is suitable for industrial applications. The current production status is discontinued. At present, LM64P89L has 4 spot information and 3 supplier information on the screen library, and the trading atmosphere is active.

The screen library first established the parameters for this model on April 04, 2013, and the parameters were last updated on May 15, 2019. According to the product specification LC96608, released by Sharp on June 12, 1996, the LM64P89L has a display resolution of 640×480 (VGA), an aspect ratio of 4:3 (width: height), and a rectangular arrangement of pixels. Its display area size is 211.17×158.37 (width × height) mm, visual size is 223.0×169.0 (width × height) mm, appearance size is 268(width)×190(height) mm, product net weight is 340g (Typ.).

Backlight This product uses 1 pcs CCFL luminous side entry light source (top), the service life of the light source is 25K hours, without backlight drive. The LM64P89L uses a Parallel Data (1ch, 4-bit) signal interface with a total of 15 pins, which are connected by terminals and the drive screen voltage is 5.0V (Typ.). Its typical vertical refresh rate, Fv, is 85Hz.

Sharp LM64P89L 液晶显示器
