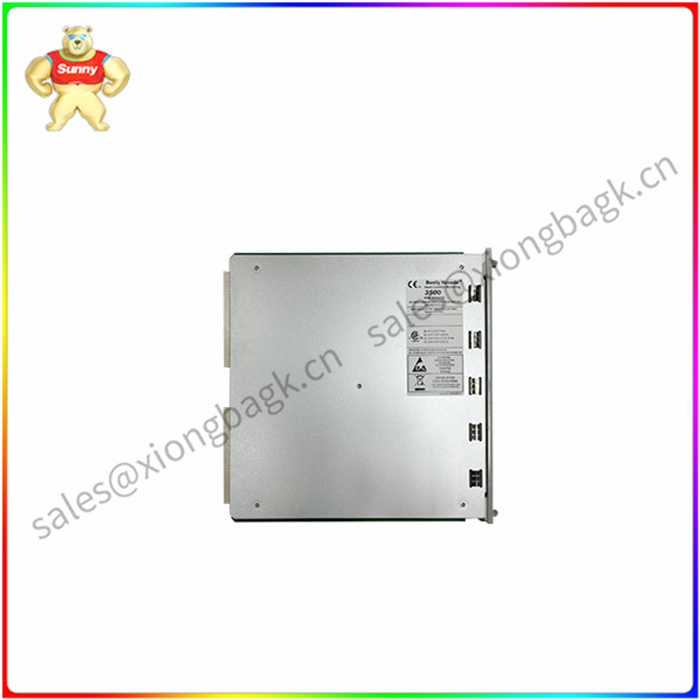

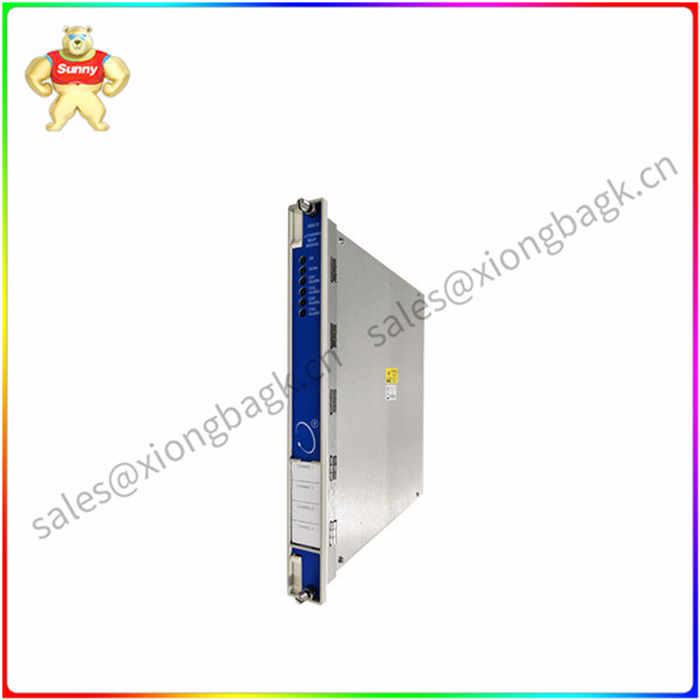

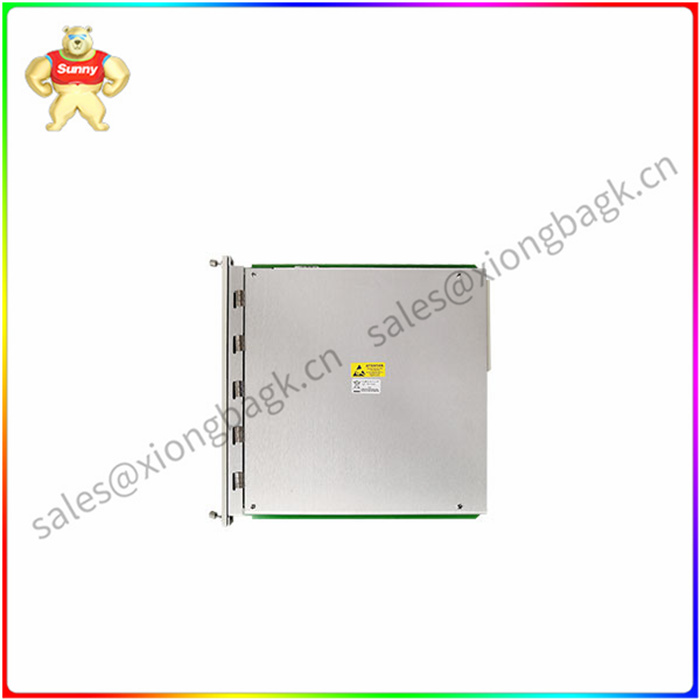

BENTLY 3500/32 继电器模块4通道

BENTLY 3500/32 继电器模块4通道

3500/32 输出 LED 规格
当模块正常运行时，OK LED 点亮。

发送和接收 LED。闪烁表明该模块正在与机架中的其他模块正常通信。

为显示中继通道处于报警状态，CH ALARM LED 会亮起。

机架空间要求
主模块 1 的前插槽为全高。

一个 I/O 模块的全高背面插槽。

继电器规格
单刀双掷 (SPDT) 继电器是一种类型。

带 250 Vrms 的消弧器，采用环氧树脂密封并通过环境密封按标准放置

5 A、24 Vdc 或 240 时的 100,000 次循环触点寿命

环境限制
工作温度：-30°C 至 +65°C

储存温度：-40°C 至 +85°C

湿度 95%，无冷凝

BENTLY 3500/32 继电器模块4通道

3500/32 Output LED specifications
When the module is running normally, the OK LED lights up.

Send and receive leds. Blinking indicates that the module is communicating with other modules in the rack.

To show that the trunk channel is in an ALARM state, the CH ALARM LED lights up.

Rack space requirement
The front slot of main module 1 is full height.

One full height rear slot for I/O module.

Relay specification
A single pole double throw (SPDT) relay is one type.

Arc suppressor with 250 Vrms, sealed with epoxy resin and placed as standard by environmental seal

100,000 cycle contact life at 5 A, 24 Vdc or 240 hours

Environmental restriction
Operating temperature: -30°C to +65°C

Storage temperature: -40°C to +85°C

Humidity 95%, no condensation
