DS200ADGIH1AAA GE 用于安装在变频器板柜中

DS200ADGIH1AAA GE 用于安装在变频器板柜中

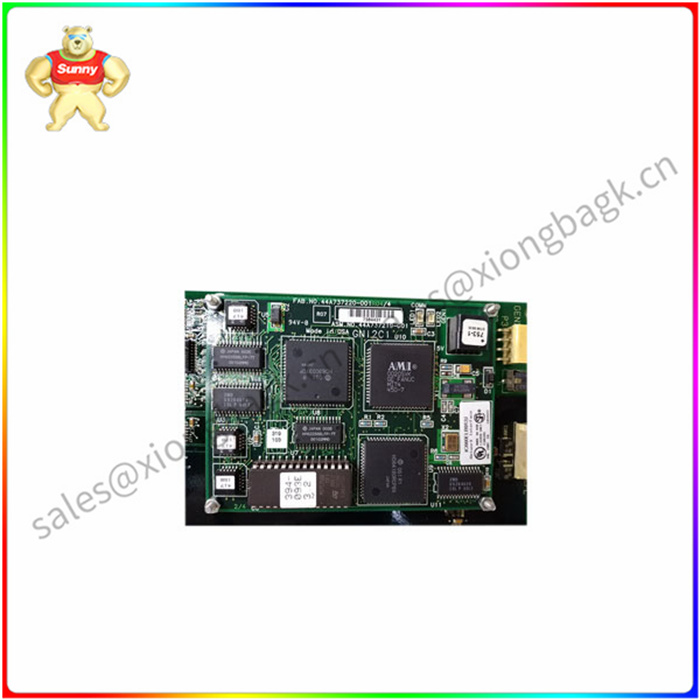

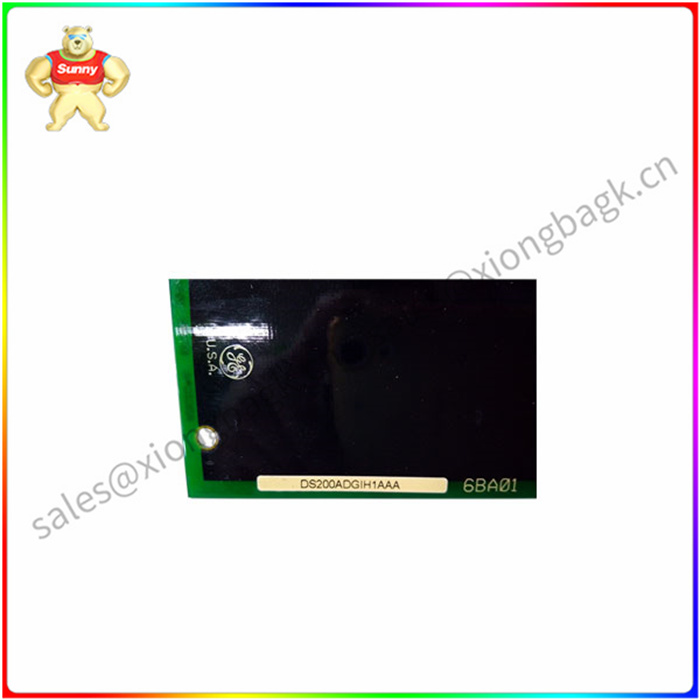

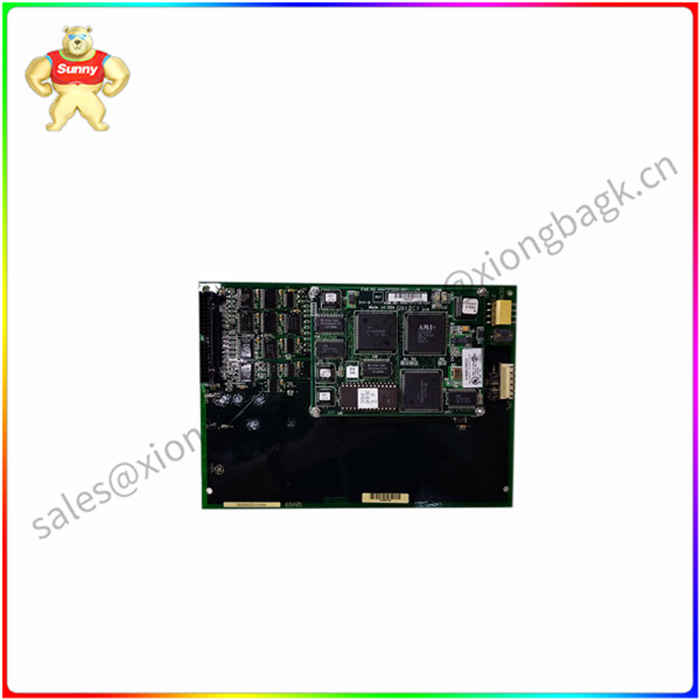

GE 辅助接口板 DS200ADGIH1AAA 具有 1 个 40 针连接器、60 个跳线和 1 个 6 针连接器。GE 辅助接口板 DS200ADGIH1AAA 还配有多个测试点。该板宽 8 英寸。DS200ADGIH1AAA 长度为 6 英寸，设计用于安装在变频器板柜中。它有四个螺钉，它们与板架上的位置对齐，以便用螺钉安装。

测试点提供了一种测试板上电路的方法。但是，只有合格的维修人员才能测试该板。服务人员必须拥有针对该任务进行校准和设计的测试设备。必须正确设置控件，并且探头必须设计为与测试仪一起使用。将板放在平坦的表面上，并在板下方放一个保护袋。

此外，由于存在静电风险，维修人员必须始终佩戴腕带。正确安装腕带后，腕带的一端会固定在您的手腕上，另一端会夹在工作台或桌子的金属腿上。它也可以连接到其他金属结构。静电被金属地面吸引并从电路板或您的身体中排出。

减少静电积聚的另一个适当步骤是避免手持电路板时四处走动。行走的摩擦会导致静电积聚。在凉爽和干燥的天气条件下尤其如此。如果没有腕带，您还可以将装有电路板的静电袋与金属结构接触，例如椅子或金属桌腿。

DS200ADGIH1AAA GE 用于安装在变频器板柜中

The GE auxiliary interface board DS200ADGIH1AAA has one 40-pin connector, 60 jumpers, and one 6-pin connector. The GE auxiliary interface board DS200ADGIH1AAA is also equipped with multiple test points. The board is 8 inches wide. The DS200ADGIH1AAA is 6 inches in length and is designed to be installed in a frequency converter board cabinet. It has four screws, which are aligned with the position of the board frame for installation with screws.

A test point provides a method for testing a circuit on a board. However, only qualified maintenance personnel can test the board. Service personnel must have test equipment calibrated and designed for this task. The controls must be set up correctly, and the probe must be designed to work with the tester. Place the board on a flat surface and place a protective bag under the board.

In addition, due to the risk of static electricity, maintenance personnel must always wear wristbands. When the wristband is properly installed, one end of the wristband will be secured to your wrist and the other end will be clipped to the metal leg of the workbench or table. It can also be attached to other metal structures. Static electricity is attracted to the metal floor and expelled from the circuit board or your body.

Another appropriate step to reduce static buildup is to avoid walking around while holding the board. The friction of walking causes static electricity to build up. This is especially true in cool and dry weather conditions. If you don't have a wristband, you can also place an electrostatic bag with a circuit board in contact with a metal structure, such as a chair or metal table leg.

DS200ADGIH1AAA GE 用于安装在变频器板柜中
